MIL 9 Lined With Non Woven Geotextile Welded Steel Wire Mesh Military Bastion
MIL 9 Lined With Non - Woven Geotextile Welded Steel Wire Mesh Military Bastion
1>Military bastion introduce:

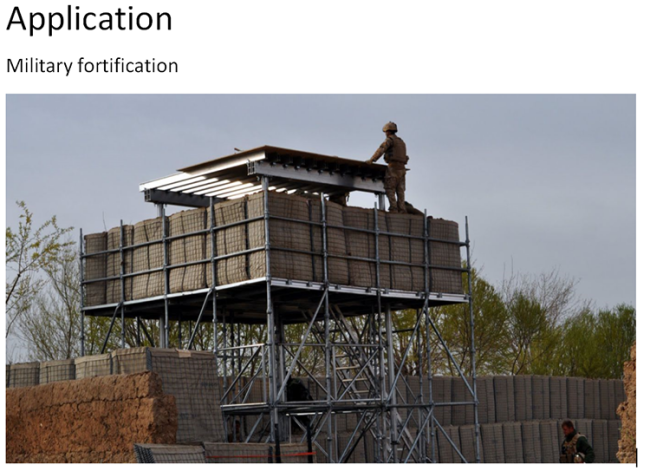

Military bastion are also known as Military Sand Wall, Defensive Barrier, Hesco Bastion, etc. It is a prefabricated multi-cellular system made of Golfan/hot-dip galvanized welded gabion, lined with non-woven geotextiles.It can be filled with sand,earth, cement, stones and are widely used in Military fortifications and flood control.
2>Military bastion introduce:

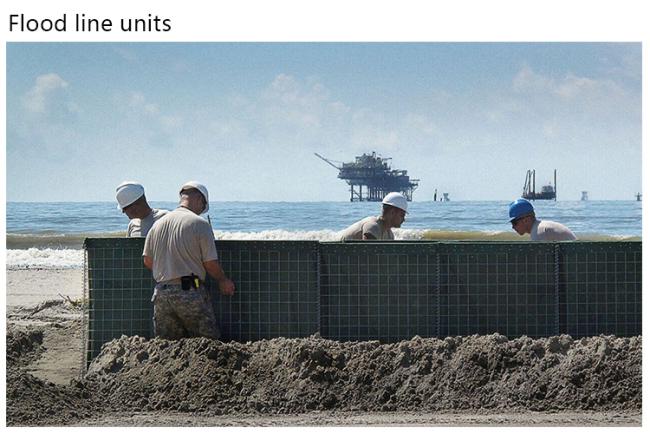

Military bastion is manufactured from steel wire mesh that is horizontal steel wire and vertical steel wire welded together, coated with zinc-aluminium. Cells are lined with heavy-duty non-woven propylene geotextile. And used as a temporary to semi-permanent wall against small arms fire and explosives. Designed for use on beaches and resist the flood.
3> Military bastion Specification:
| Unit Type | Height | Width | Length | Internal Cells |
| MIL-1 | 1.37m/4’6’’ | 1.06m/3’6’’ | 10m/32’ | 9 cells(4+5) |
| MIL -2 | 0.61m/2’ | 0.61m/2’ | 1.22m/4’ | 10 cells(5*2) |
| MIL -3 | 1.0m/3’3’’ | 1.0m/3’3’’ | 10m/32’ | 10 cells(5*2) |
| MIL -4 | 1.0m/3’3’’ | 1.5m/5’ | 10m/32’ | 10 cells(5*2) |
| MIL -5 | 0.61m/2’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -6 | 1.68m/5’6’’ | 0.61m/2’ | 3.05m/10’ | 5 cells(5*1) |
| MIL -7 | 2.21m/7’3’’ | 2.13m/7’ | 27.74m/90’ | 13 cells(5+4+4) |
| MIL -8 | 1.37m/4’6’’ | 1.22m/4’ | 10m/32’ | 9 cells(5+4) |
| MIL -9 | 1.0m/3’3’’ | 0.76m/2’6’’ | 9.14m/30’ | 12 cells(6*2) |
| MIL -10 | 2.12m/7’ | 1.52m/5’ | 30.5m/95’ | 20 cells(5*4) |
| MIL -11 | 2.74m/9’ | 1.06m/3’6’’ | 3.3m/11’3’ | 2 cells(2*1) |
| MIL -12 | 2.1m/7’ | 1.06m/3’6’’ | 33m/108’ | 30 cells(5*6) |
| MIL -19 | 2.74m/9’ | 1.06/3’6’’ | 3.8m/10’5’’ | 6 cells(6*1) |
| Technical Specification for Barrier Panel | |
| steel wire | Low carbon steel |
| wire thickness | 3.5mm-5.0mm |
| wire tensile | 500-800Mpa |
| welding tensile | 50-100% of wire tensile strength |
| mesh size | 76.2mm*76.2mm, 100mm*50mm,100mm*100mm |
| surface treatment | Zinc coating or Zinc-Al coating 40-600g/m2 |
4>Military bastion FAQ
Q:Are you manufacturer?
A:Yes.We have been in manufacturing this product for 15 years
Q:Where is your factory?
A:No.12 Shuguang East Street, Xicheng Industrial Zone,Raoyang County, Hebei Province, China.
Q:What’s factors in quotation?
A:Wire diameter,mesh aperture,length,width,height,quantity
Q:How many days the samples will be finished?And how about the mass production?
A:Normally,2-5 days for samples,18-20 days for 3-5 containers.
Q:How many years warranty you can offer?
A: It depends the using environment ,we normally offer 10-15 years warranty.
Q:Do you have technique support on installation?
A:Yes ,we have professional engineer for installation guide service.
5>.Military bastion Features:
1.easy to handle and install,
2.High tensile and anti-impact capability
3.long life time
