Product Description:

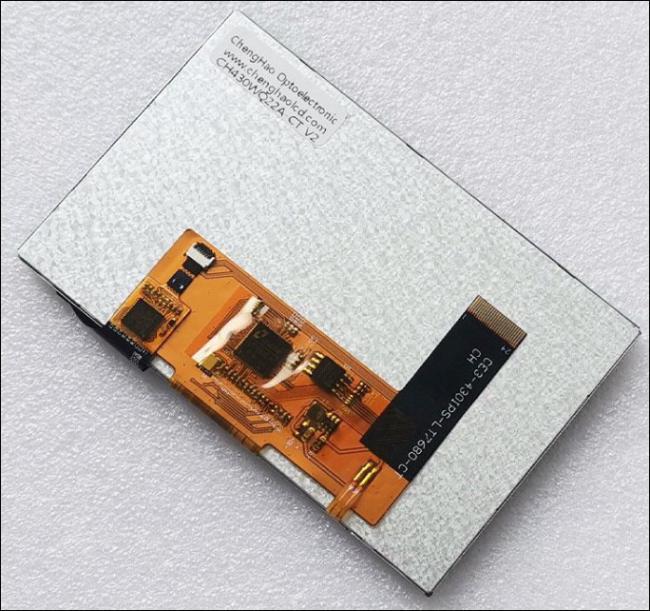

The CH430WQ22A-CT is a high-performance 4.3-inch landscape TFT LCD display module integrated with capacitive touch functionality, engineered for industrial and professional applications. Boasting a crisp 800x480 resolution, it delivers vivid 16M-color visuals with an 800:1 contrast ratio and 800 cd/m² high brightness (supports 300~1500 cd/m² customization). Adopting IPS transmissive normally black technology, it offers 80/80/80/80 all-angle viewing, ensuring clear visibility from any orientation.
		The module features a 24-pin FPC interface, supporting SPI as standard with customizable options including MCU, RGB, LVDS, and HDMI. Its compact dimensions (105.567.24.75 mm) with an active area of 95.04*53.86 mm make it ideal for space-constrained devices. Equipped with IIC interface capacitive touch (resistive or non-touch optional), it operates stably in -20~+70℃ temperature range, with storage temperature reaching -30~+80℃, suitable for harsh industrial environments.

Features:

• Ultra-Wide Viewing Angle IPS Panel
  The IPS transmissive normally black display provides uniform 80° viewing in all four directions, eliminating color distortion and ensuring consistent visibility for collaborative industrial operations.

• High Brightness & Customizable Luminance
  With 800 cd/m² standard brightness and 300~1500 cd/m² customization range, the module maintains clear readability even under strong ambient light, ideal for outdoor or high-glare industrial sites.

• Flexible Interface Compatibility
  Supports SPI as default, with expandable options including MCU, RGB, LVDS, and HDMI. The 24-pin FPC design ensures stable signal transmission for diverse industrial control systems.

• Broad Temperature Tolerance
  Operating temperature from -20℃ to 70℃ and storage temperature from -30℃ to 80℃ enables reliable performance in extreme environments such as outdoor monitoring and industrial automation equipment.

• Dual Touch Options with Precise Response
  Capacitive touch (IIC interface) as standard, with resistive touch or non-touch alternatives available, catering to different operational needs like glove-touch scenarios in factories.

Technical Parameters:

Customization:

As a tailor-made industrial display module, the CH430WQ22A-CT offers comprehensive customization services to meet diverse customer requirements, with the following key options:

First, FPC Customization: We support personalized design of FPC shape, structure, and pin count, adapting to the specific installation space and connection needs of your devices.

Second, Interface Customization: Beyond the standard SPI interface, we provide one-stop customization of multiple interfaces including MCU, RGB, MIPI, LVDS, EDP, and HDMI, ensuring seamless integration with your control systems.

Third, Backlight Brightness Tuning: The default 800 cd/m² brightness can be adjusted within 300~1500 cd/m², and select models can reach up to 2800 cd/m² for ultra-high brightness scenarios.

Fourth, Temperature Range Expansion: We offer customized operating temperature ranges from -10~+60℃ to -45~+90℃, enabling the module to withstand extreme cold or heat in special industrial environments.

Fifth, Glass Cover Personalization: Customize glass cover shape, thickness, opening positions, and silk screen printing according to your device’s structural and branding needs.

Sixth, Touch Solution Selection: Choose between capacitive touch, resistive touch, or non-touch versions based on your application scenarios.

Additionally, we provide anti-glare coating and anti-electromagnetic interference (EMI) treatment to enhance the module’s adaptability to harsh working conditions.

Support and Services:

Chenghao Optoelectronic is committed to providing end-to-end support and services for the CH430WQ22A-CT display module, ensuring a smooth integration experience for our customers.

First, Technical Consultation: Our professional engineering team offers free pre-sales consultation, including module selection guidance, interface compatibility analysis, and customization solution design, to help you optimize product matching.

Second, Sample Provision: We provide free or low-cost samples for testing, allowing you to verify the module’s performance, compatibility, and durability in your actual devices before mass orders.

Third, Customization Support: We assign dedicated project managers to follow up on your customization requests, from design drawing confirmation to prototype production and testing, ensuring all customized parameters meet your specifications.

Fourth, Quality Assurance: All modules undergo strict aging tests, temperature cycle tests, and reliability tests before delivery. We provide a comprehensive quality warranty and timely after-sales maintenance services.

Fifth, Documentation Support: We offer detailed datasheets, user manuals, interface definition documents, and driver development guides to facilitate your product integration and debugging process.

FAQ:

Q1: What is the native resolution of the CH430WQ22A-CT?

A: It has a native resolution of 800×480 pixels (WVGA) in landscape orientation.

Q2: Can I use this display without a touch panel?

A: Yes, the touch panel is optional—you can order it with capacitive touch, resistive touch, or no touch at all.

Q3: What interfaces does this module support out of the box?

A: The standard version uses SPI, but it can be customized to support MCU, RGB, LVDS, MIPI, eDP, or HDMI.

Q4: Is this display suitable for outdoor use?

A: With brightness up to 1500 cd/m² (customizable), it performs well in bright environments, especially with anti-glare options.

Q5: What is the operating temperature range?

A: Standard range is -20°C to +70°C; extended ranges down to -45°C and up to +90°C are available upon request.
