Stainless Steel 1064nm Laser Metal Rust Remover 1.5MJ Air Cooled
Stainless Steel 1064nm Laser Metal Rust Remover 1.5MJ Air Cooled
Advantages:
1. Non-contact cleaning, does not damage the part base
2. Standard cleaning, accurate position, precise size, selective cleaning
3. No chemical cleaning solution, no consumables, safety and environmental protection
4. High cleanliness and save time
5. Laser cleaning system is stable
Applications:

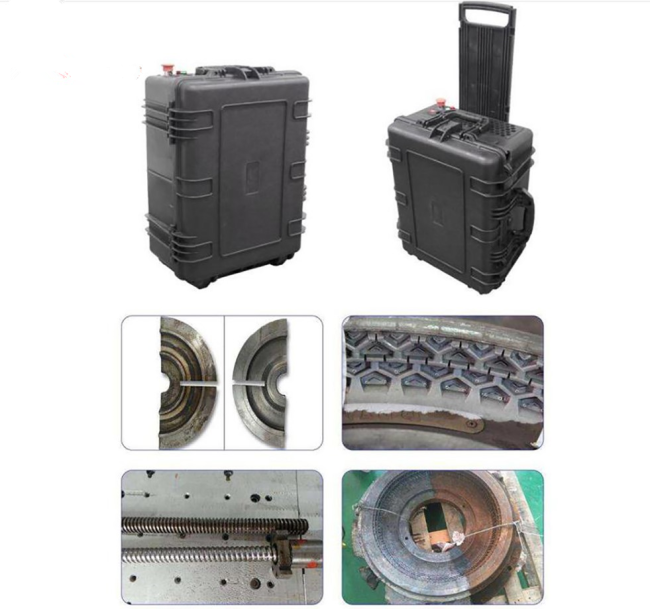

Metal surface derusting, surface paint removal and paint removal, surface oil stains, stains, dirt cleaning, surface coating removal, welding surface, spray surface pretreatment, stone surface dust and attachment removal, rubber mold residue Clean up, etc.
Product Data:
| Laser Source | Fiber laser source |
| Laser Power | 50W/100W/200W/300W/500W/1000W |
| Laser Center Wavelength | 1064nm |
| Beam Quality | ＜1.8 |
| Power Stability | ≤5%(T＞5h) |
| Pepetition Frequency | 1-4000 KHZ |
| Energy Per Pulse | 1.5MJ(max) |
| Pulse Width | 8-500ns |
| Cleaning Size For One Time | 1-100mm(langth);1-20mm(width) |
| Scan Speed | 13000mm/s |
| Fiber Cable Length | 5m(other lenght for customized) |

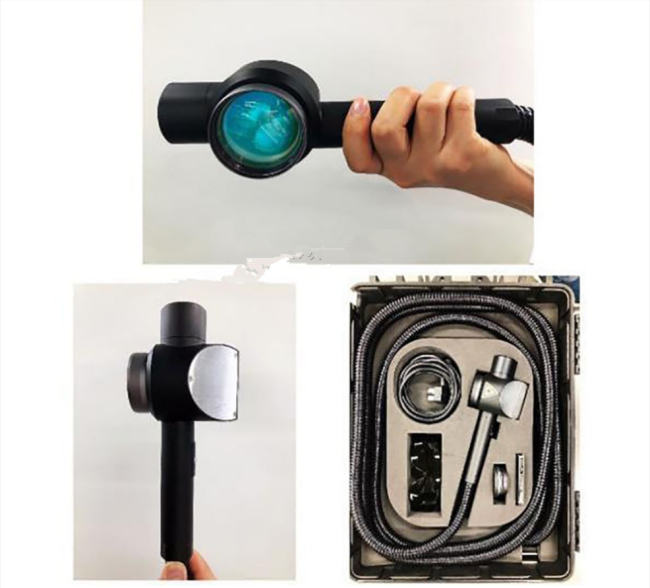

| Equipment structure | Handheld cleaning head + trolley |
| Power Tunable Range | 0-100% |
| Cleaning Length Tunable Range | 0-100mm |
| Cleaning Width Tunable Range | 0-20mm |
| Cooling Method | Air cooled |
| Life Time | 100000 hours |
| Operating Temperature | 0-40℃ |
| Operating Humidity | 10%-95% |
Product Applications:
