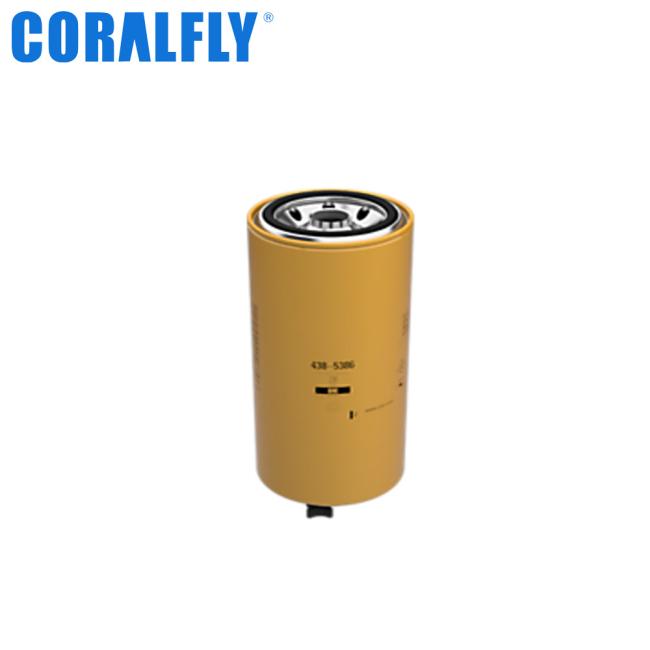

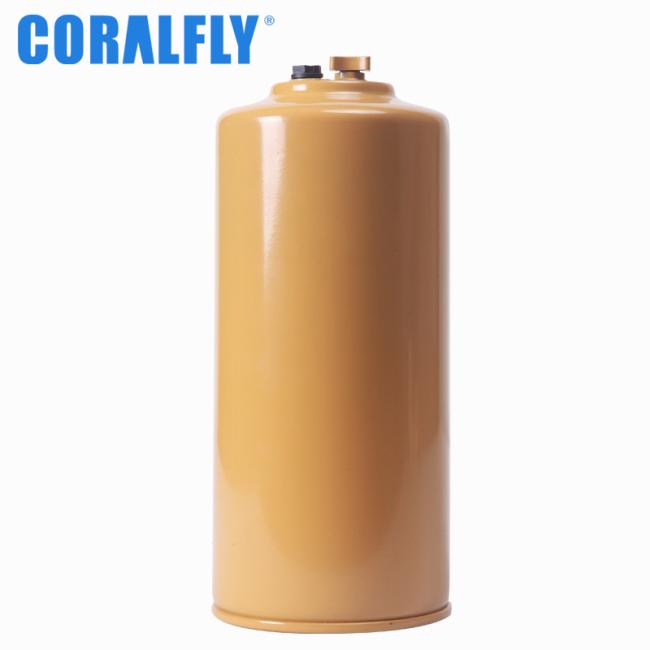

3 Micron 4385386 CORALFLY Fuel Water Separator Filter Spin On Style
4385386 Filter CORALFLY Fuel Water Separator Base Dump Truck Diesel Engine CORALFLY Filter
| Outer Diameter | 136 mm (5.35 inch) |
| Thread Size | 1 1/4-12 UN |
| Gasket OD | 109.5 mm (4.31 inch) |
| Gasket ID | 97.5 mm (3.84 inch) |
| Height | 305 mm (12.01 inch) |
| Overall Length | 332 mm (13.07 inch) |
| Efficiency Beta 75 | 3 micron |
| Collapse Burst | 20 bar (290 psi) |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Gross Length | 14 CM |
| Gross Width | 14 CM |
| Gross Height | 34 CM |
| Gross Weight | 0.887 KG |
| Gross Volume | 0.00736 M3 |
| Manufacturer Name | Manufacturer Part # |
|---|---|
| CORALFLY | 4385386 |
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CORALFLY 793F | - | DUMP TRUCK | 700 SERIES | CORALFLY C175-16 | - |
| CORALFLY 794 | - | DUMP TRUCK | - | CORALFLY C175 | - |
| CORALFLY 795F | - | HAUL TRUCK | 700-SERIES | CORALFLY C175-16 | - |
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
1. What’s Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What’s kind of your packaging?
Coralfly packaging or customer’s requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
6. How often should you change a fuel water separator?
Replace your fuel-water separator filter after every 50 hours of use. Don't reuse the filter once you've emptied it.
7. What is a fuel water separator filter?
A fuel water separator is a device that works to ensure clean fuel is delivered to the engine. Properly speaking, a fuel water separator is a small filtering device used to remove the water from the diesel fuel before it reaches to the sensitive parts of the engine.
