2 3 4 5 Pin M8 Circular Connector Sensor Plug IP67 Panel Front Mount Socket
M8 Waterproof Connector Circular 2 3 4 5 Pin Sensor Plug IP67 Panel Front Mount Socket
Product description
The M8 connector system provides a solution that safely and reliably ensures the communication in industrial environments. Designed to IEC-61076-2-101, this connector system also finds applications outside of its traditional industries where a compact, reliable connection system with environmental protection is required.
Quick details
1. M8 panel mount connector
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
| Material Data | |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Contact body material | PA |
| Housing material | PA |
Electrical values
Rated current (40 °C) :1.5A/4 A
Rated voltage :30V/60 V
Rated impulse voltage :1500 V
Pollution degree :3
Overvoltage category :III
Insulating material group :III
Volume resistivity :≤ 3 mΩ
EMC compliance :not shielded
Degree of protection :IP67
Mechanical operation :> 100 Mating cycles
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V | |||
| Contact resistance | <5mΩ | ||||
| Insulation resistance | <100mΩ | ||||
| Pollution degree | 3 | ||||
| Temperature range | 25 °C to 85° C | ||||
| Degree of protection | IP 67 when mated | ||||
| Mating times | 100 cycles | ||||
| Wire gauge | 24AWG | 26AWG | |||
| Cable jacket | PVC or PUR | ||||
| Material of housing | Brass Nickel Plated | ||||
| Material of insert | PA+GF UL9V-0 | ||||
| Material of contact | Brass phosohor bronze gold plated | ||||

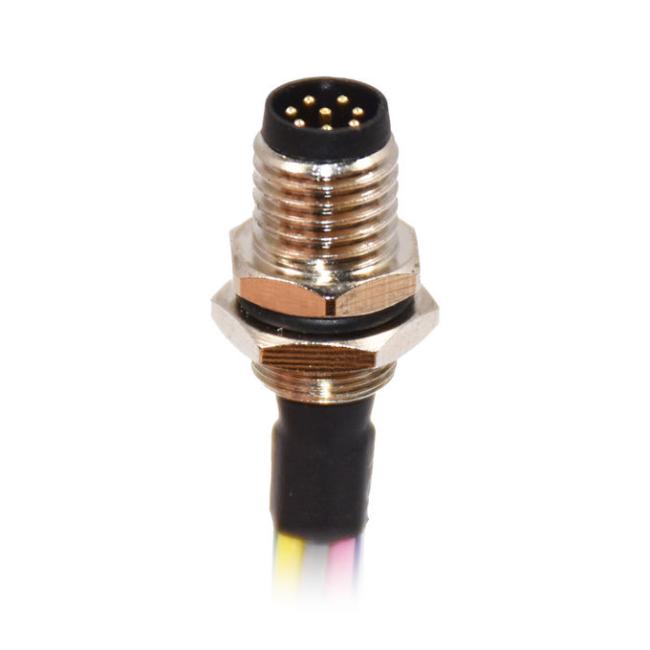

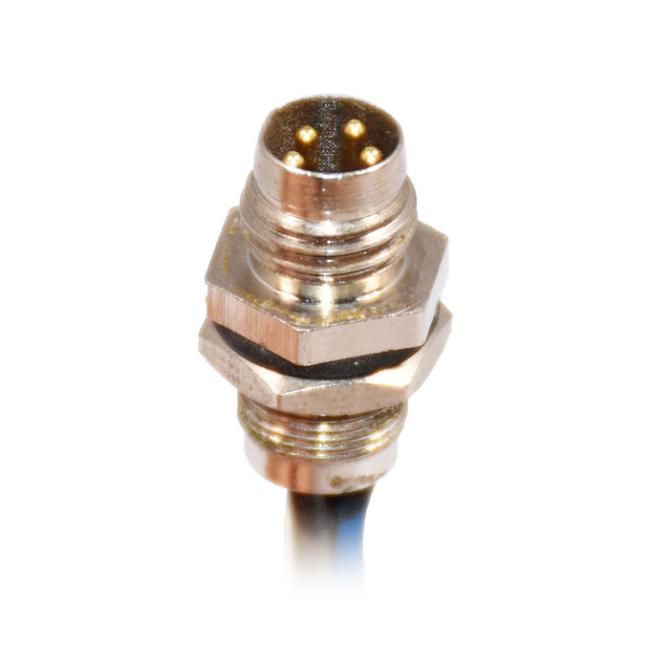

Product photos
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm
2.Customized according to customer's request
M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
