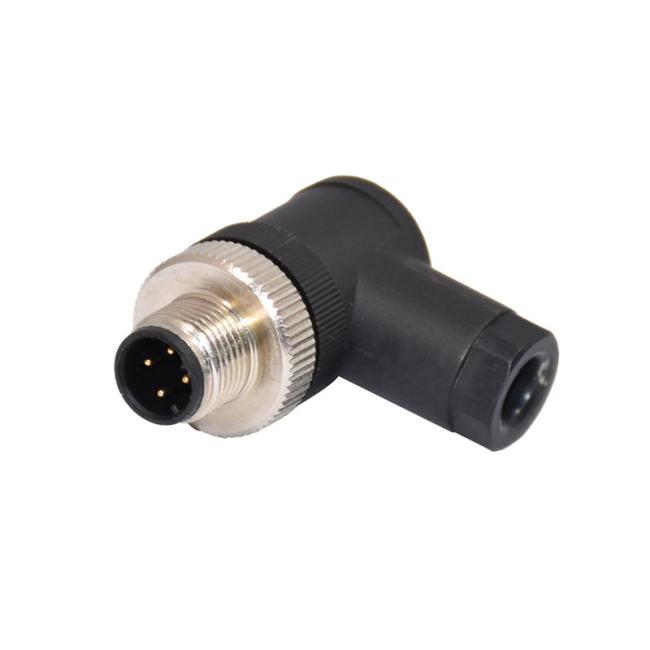

M12 90degree Male Assembly Screw Male 4P Field Wirable Assembly Waterproof Cable Connector
M12 90degree Male Assembly Screw Male 4P Field Wirable Assembly Cable Connector
Product Description
1. M12 cable assembly product offering is used in a variety of heavy-duty, demanding end-use applications within highly stressful environments.
2. The wire connection normally use soldering termination, crimping and screw termination.
3. M12 connectors are established as one of the most reliable and efficient connection standards for Industrial Machinery and Factory Automation applications.
4. With an industry standard screw locking mechanism, IP67 rating rate and high performance capabilities, this range is ideal not only for sensor connections but also for various fieldbus systems.
Quick details
Core type: A.B.C.D
Contacts:3.4.5.8.12pins
Rated current: 4A
Rated AC/DC: 350V
Cable size: 0.34mm
Cable size AWG:22
Mating Cycle:500times
Temperature:-40°C~+80°C
Degree of protection: IP67/68
Material
Cable material: PUR/PVC
Shell material: copper/Zinc
Core material:PA
Insert/ Housing: TPU
Overmold material:PVC/TPU
Terminal material:Phosphor copper
Coupling nut/screw: Brass with nickel plated screw
| Electrical Characteristics | ||||||
| Rated voltage | 250V | 60V | 30V | |||
| Pollution degree | III | |||||
| Test voltage | 500V±15V | |||||
| Rated current(40℃) | 4A | 1.5A | ||||
| Contact resistance | ≤10mΩ | |||||
| insulation resistance | ≥100MΩ | |||||
| Materials | ||||||
| Pin contact | CuZn | |||||
| Socket contact | CuSn | |||||
| Contact plating | Au | |||||
| Upper temperature | PA66(UL 94V-0) | |||||
| Female insent | PA66(UL 94V-0) | |||||
| Material of cable jacket | PVC or PUR | |||||
| Screw | CuZn | |||||
| Nut | CuZn | |||||
Product photos
Applications
● Standard sensor, actuator, encoder, servo motors
● Factory automation and process control
● Industrial instrumentation
● Commercial electronics PCBA
● Industrial safety light curtain, light grid, switches
● Power supply
● Fieldbus: DeviceNet, CANopen, Profibus, Ethernet, NMEA 2000
● LED display panel & outdoor LED lighting
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm
2.Customized according to customer's request
Our service
1. We are the manufacture, Rigoal is our brand, and has built a great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be reasonal.
3. All the inquiry will be response within 24 hours, the commucation will be effective.
4. Special feature and service can be provided upon requirement.
- Fast Samples delivery service
- Quote within 24 hours
- Professional teams with RD & Sales for your projects
- Special service for your urgent case
- Customer is always our focus.
Rigoal-----Your Best Connection!
