FUS Circular Plastic Connectors Metal Shielded Male To Male 4 Pin Connector

Waterproof UCU Metal Shielded FUS Male To Male 4pins Assembly Connector Soldering

Product description

1. the plastic type connector is equivalent to M14/M21 series product

2. these connector are also equivalent to Weipu series connector

3. metal shielded connector is more stable and safe

4. Waterproof connectors typically involve an encasing, often plastic or mechanized plastic depending on the application with a specific IP rating.

5. Waterproofing is required on cable assemblies when connectors and ports are going to come into contact with moisture

6. Waterproofing is required on cable assemblies when connectors and ports are going to come into contact with moisture.

7. Connectors are typically made of metal and plastic, but can be constructed using just about any conductor and insulating material

8. It's very easy and simple to operating,small bulk,light weight complete specification

9. Plastic conduit quick connector is widely used in wire and cable protection industry

Quick Details

Product name:UCU connector

Gender: male

Current Rating:10A

Number of contacts: 4pins

connector type: shielded connector

Mating style: screw

Back Shell:circular

Waterproof Rating:IP68

Seal for cable OD:Φ3mm～Φ7mm

Contact resistance:<5mΩ

Insulation resistance:≥500MΩ at DC500V

Breakdown voltage: ≥1000v/1minute

Assembly Style: Solder

Material

Connector body: Flame Retardant Nylon

Contact:Brass C2680 and C17200 gold plated

Sealing:EPDM

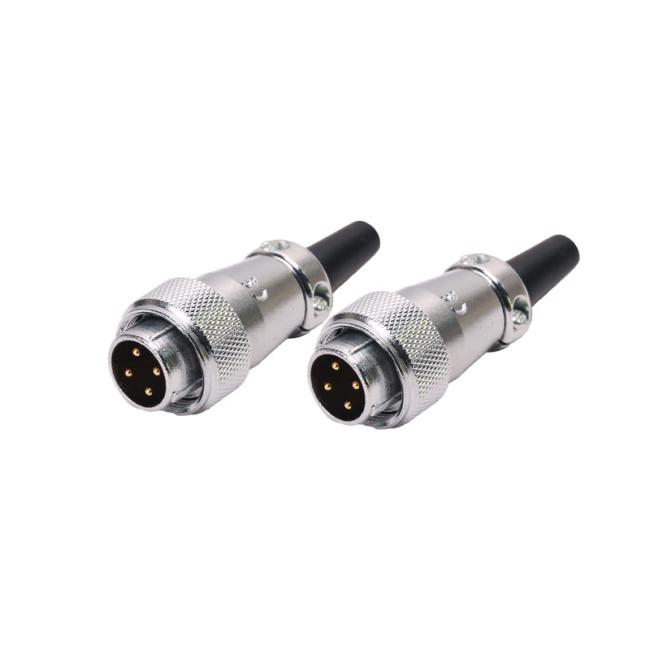

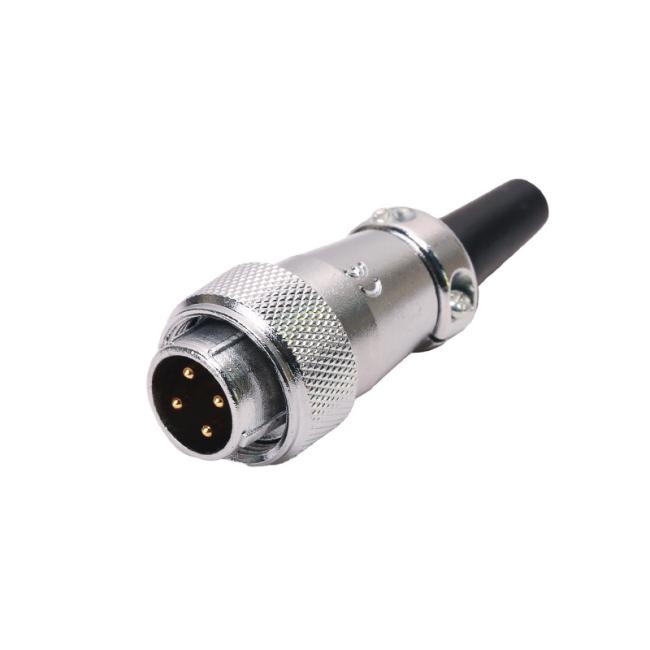

Product Photos

Our service

1. 100% high quality, all failed parts get free warranty within 30 days after received.

2. Repairs parts are available within 10years; we will inform the EOL products to you from time to time

3. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement

4. Unique designed package for you can be provided upon customer requirement.
