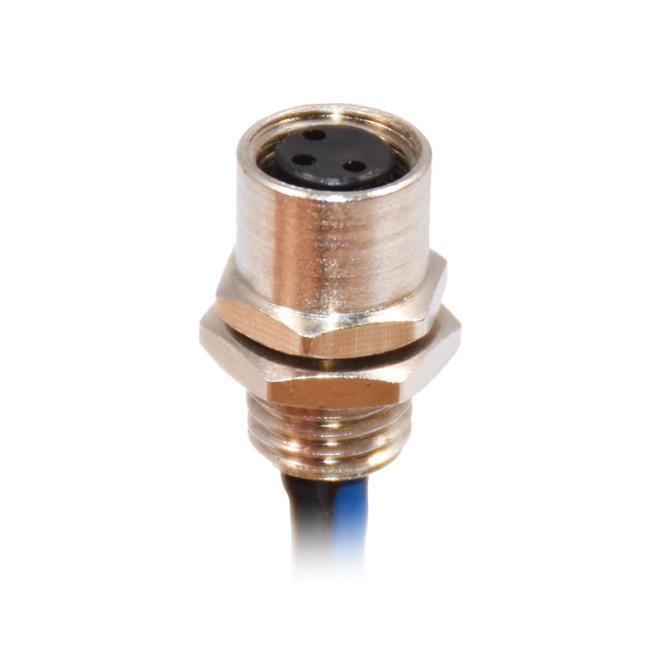

M8 Waterproof Connector 3 Pins Rear Panel Mount Connector With Tail Sensor Application

Rigoal could supply various m8 male and female panel mount connectors.

These m8 circular connectors may be classified as straight and 90 degree right angle m8 panel mount connectors, shielded and unshielded pcb panel mount connectors, front and rear panel mount, front and rear fasten screw thread, wire solder pin and DIP solder pin connectors.

The M8 connector system provides a solution that safely and reliably ensures the communication in industrial environments.

Product description

1. M8 panel mount connector

2. Connector locking system is bolted

3. Termination is solder

4. Housing material is PA

5. Wire gage(AWG) 24

6. Cable outlet can be 3,5 - 5,0 mm

7. Temperature will from -40° to +85°

8. Contacts 3.4.5.6.8pins avaliable

Electrical values

Rated current (40 °C) : 4 A

Rated voltage :60V

Rated impulse voltage :1500 V

Pollution degree :3

Overvoltage category :III

Insulating material group :III

Volume resistivity :≤ 3 mΩ

EMC compliance :not shielded

Degree of protection :IP67

Mechanical operation :> 100 Mating cycles

Product photos

M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.

• LED lighting , white light , color light etc

• Low current equipement

• Connector be used in narrow environment

• Communication equipement

• Lighting harness

Our service

1. We are the manufacture, Rigoal is our brand, and has built a great reputation in China even around the world.
2. We guaranteed that 100% in good quality, the price will be reasonal.
3. All the inquiry will be response within 24 hours, the commucation will be effective.
4. Special feature and service can be provided upon requirement.

Rigoal-----Your Best Connection!
