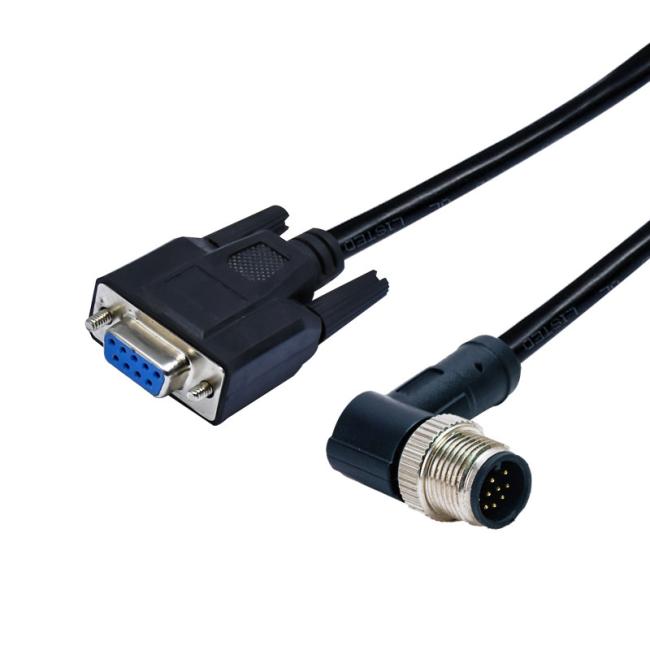

D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor
D-Sub Female 9pins To M12 Waterproof Right Angle 9pins Molding Male Connector Sensor
Electrical data
Gender: female to male
Type: m12 to D-sub connector
Body shell:PA + GF Housing / Metal shell
Terminal: Screw joint
Pollution degree: 3
IP rating: IP67
Mechanical operation :>100 Mating cycles
Conductor structure:32x0.1mm
Material
Flammability rating according to UL 94: HB
Contact material: CuZn
Contact surface material: Ni/Au
Contact carrier material: TPU GF
Material of grip body: TPU, hardly inflammable, self-extinguishing
Material, knurls: Zinc die-cast, nickel-plated
Cable Jacket: PUR or PVC
| Plastic Housing | Engineering Thermoplastic Flammability Rating UL 94V-0. |
| Contacts | Copper Alloy |
| Plating | Gold Plating Over Nickel in Contact |
| O-Ring | Silicone Rubber Black Color |
| Cable | UL 2464 22AWG, OD 5.4mm, Color Black |
| Shielded | Brass with Nickel Plated |
| Current Rating | 4A (2 to 5Pin), 2A (6 to 8Pin), 1.5A (9 to 12Pin) |
| Rated Voltage | 250V AC/DC (2 to 4Pin), 60V AC/DC (5Pin), 30V AC/DC (6 to 8Pin), 30V AC/DC (9 to 12Pin) |
| Insulation Resistance | 10⁸ MΩ |

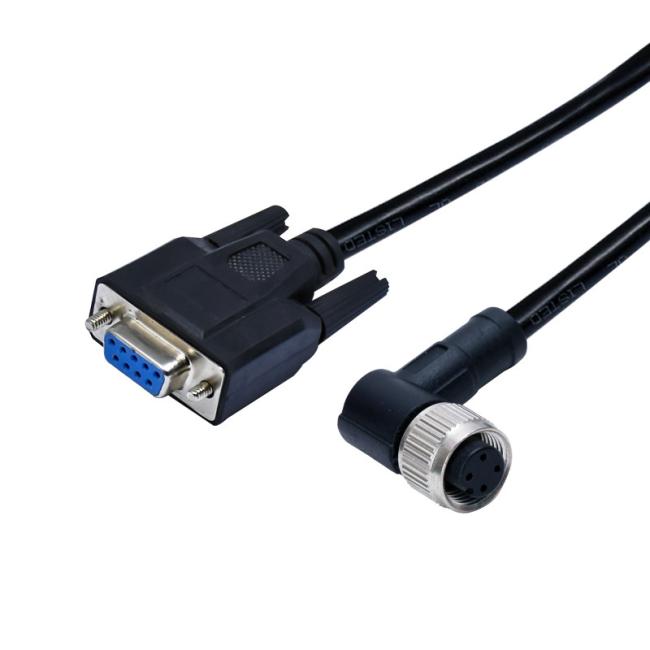

Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: How long is your delivery time?
A: Sample is around 5 working days; Mass is 5-15 work days.
Q4: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q5: How to deliver the goods?
A: DHL, UPS, TNT, FedEx, Aramex, Postal parcel and forwarder are acceptable.
Q7: How to contact us?
A: contact us with email/whatsapp/wechat
