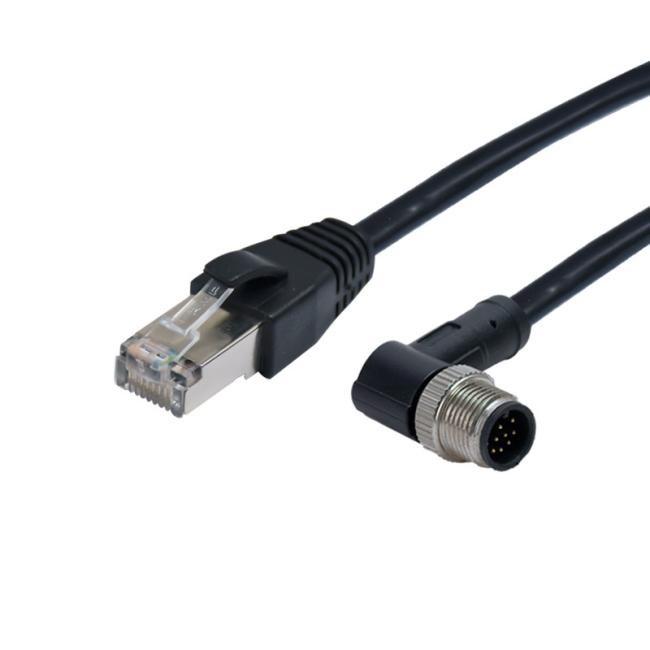

Rigoal Industrial Ethernet Connector M12 Molded 90 Degree Male 9 Pin Connector
Industrial Ethernet Connector M12 Molded 90 Degree Male 9pins Connector To RJ45 Cable
Product description

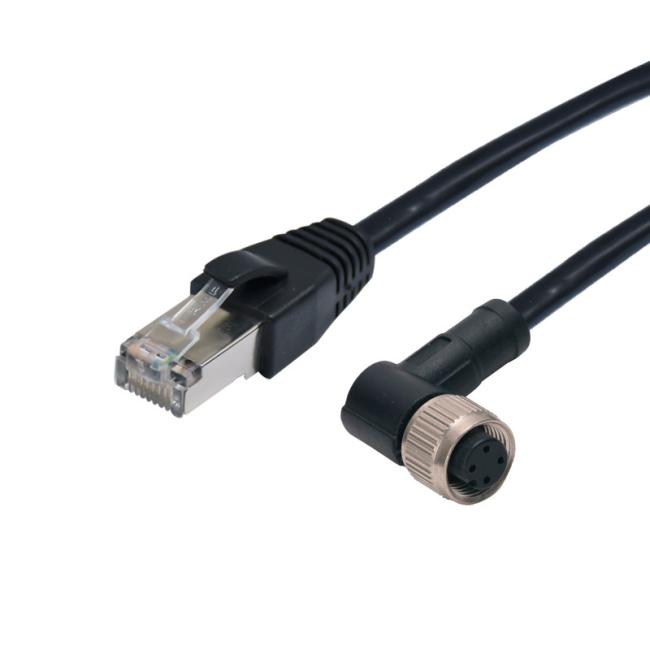

M12 D-Code (Female) to RJ45 (Male) Ethernet cable, CAT5E. 0.5 m (1.6 ft). Outdoor UV and sunlight resistant.
Tested operational for shock and vibration according to requirements for rolling stock and ground vehicle installations. Compatible with all Axis network video products with female RJ45 Ethernet port 802.3af and 802.3at (up to 30W).
Electrical data
Moulding:Polycarbonate
Contact material: Phosphor Bronze
Contact plating: 50 micron gold
Operating Temperature: –40°C to +70°C
Mating cycles: 1,000 cycles Compliant
Current rating: 1.5A
Voltage rating: 30V ac, 42V dc
Contact resistance:10mW max.
Performance: Cat 5e
Conductor types: 24-28AWG, solid or multi- stranded
Degree of Protection: IP68
| Connector | m12 to RJ45 connector |
| Gender | female to male |
| Degree of protect | IP68 |
| Current rating | 1.5A |
Product photos
