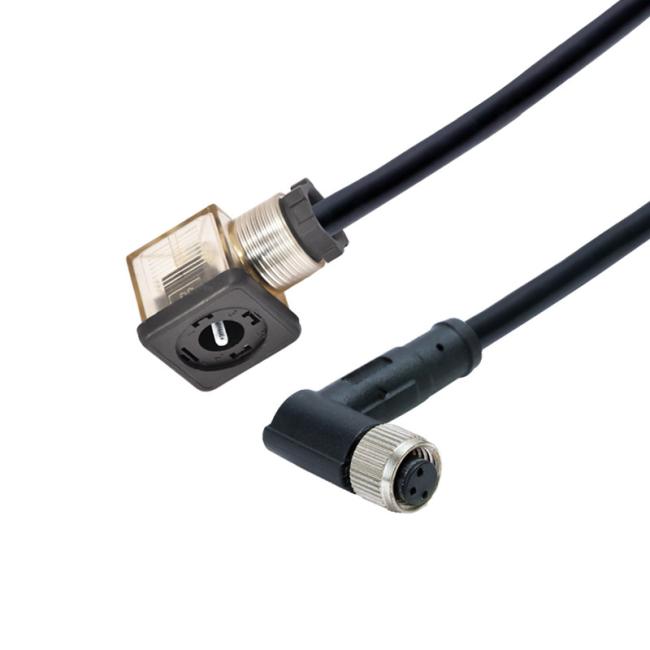

Solenoid Valve Battery Powered LED Connector And M12 Molding Female Cable Connector

Product description

solenoid valve connectors are available in the five industry standard sizes of 8mm, 9.4mm, 10mm, 11mm and 18mm and are suitable for 24 volt, 110 volt and 220 volt applications, high quality solenoid valve connectors and over-molded solenoid cables help reduce wiring time,olenoid Valve Connectors Canfield Connector is a manufacturer of interconnection devices, electronic timers, sensors, modules and specialty electronic devices targeted at the fluid power industry. Over-molded solenoid valve cables available in sizes to fit all NITRA directional solenoid valves

General Details

Contacts: 3+PE

Connector design: female 90degree connector

Connector locking system: central bolt

Termination: screw

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6,0 - 8,0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Rated impulse voltage: 4000 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

Component part drawing

Product photos

FAQ

Q1. What kind of connectors you could supply?

A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details

Q2: How can I get a connector’s sample?

Sample in stock is free; you just need to pay shipping cost.
