M12 Molding 5pins A Code Male Straight Waterproof Connector To Solenoid Valve Type B 3+PE Plug

Price Negotiable

Price: negotiable

MOQ: 100pcs

Delivery Time: 7-10days

Brand: Rigoal

Product Description

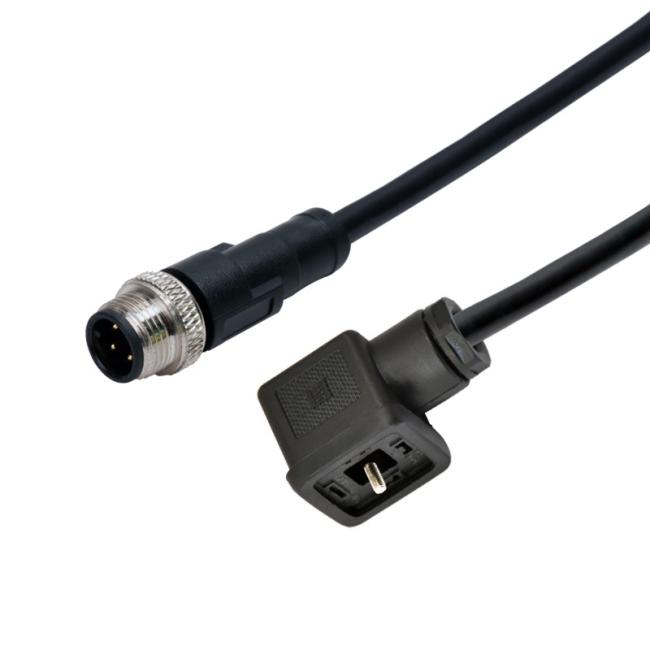

M12 Molding 5pins A Code Male Straight Connector To Solenoid Valve Type B 3+PE Plug

Product Description

1. Nut structure, more tightly connected, firm

2. Silicone ring effectively prevents water and dust from entering

3. With new flame retardant/anti riot sun/antioxidant/anti-aging PVC plastic which is flexible and durable

4. Easy install

5. IP67,IP68 m12 waterproof connector Male Female Sensor Connect extension Cable

6. M12 Connector System for industrial automation and control applications provides a full solution that safely and reliably ensures communication in industrial environments

7. These connectors are designed for both front mount and rear mount panel installation

General Details

Contacts: 3+PE

Connector design: plug molding connector

Connector locking system: central bolt

Termination: screw clamp

Wire gauge (mm): min. 0,34 mm², max. 1,5 mm²

Wire gauge (AWG): min. AWG 22, max. AWG 16

Cable outlet: 6,0 - 8,0 mm

Upper limit temperature: 120 °C

Lower limit temperature: -30 °C

Electrical values

Rated current (40 °C): 10 A

Rated voltage: 250 V

Pollution degree: 3

Overvoltage category: III

Insulating material group: III

Volume resistivity: ≤ 15 mΩ

Insulation resistance: ≥ 10¹⁰Ω

EMC compliance: not shielded

Degree of protection: IP65

Mechanical operation: > 50 Mating cycles

Material

Contact material: CuSn (bronze)

Contact plating: Ni (nickel)

Contact body material: PA (UL 94 HB)

Housing material: PA

M12 Data

Pin No.	3	4	5	8	12	17
Coding	A	A	A	A	A	A
Standard	IEC61076-2-101
Rated current	4A	4A	4A	2A	1.5A	1A
Rated voltage+	250V	250V	60V	30V	30V	30V
Operating Temperatur	-25℃~85 ℃
Degree of protection	IP67/IP68
Connector locking system	Solder
Mechanical operation	>500 mating cycles
Contact resistance	≤10mΩ
Material of connector	CuZn
Contact plating	Au(gold plating)
Material of connector body	Cu,Epoxy resin

Component part drawing

Connector type	m12 to selnoid valve connector
Contacts	2+PE 3+PE / 5PINS
Gender	female
Degree of protection	IP65
Size of tail	PG7 or PG9
