4A Solenoid Valve Connector 3 Pins Male International Portable Adapter Industrial Plug
Solenoid Valve Connector 3 Pins Male International Portable Adapter Industrial Plug
1. M12 Molded versions and assembly possibles
2. M12 A B C D X S T Y K L M coding are available
3. Connector with LED type support
4. Operating voltage 250V, Rated current 4A
5. Can be easily connected to photoelectric barries
6. Satisfy all the requirements actuator devices in automation technology
7. Valve Plug molding Type C with cable
8. Waterproof rating is IP65
9. Wire gauge(mm) is 0.34mm²
10. Wire gage(AWG) 22
| Material Data | |
| Shell material | copper/Zinc |
| Core material | PA |
| Overmold material | PVC/TPU |
| Terminal material | Phosphor copper |
Electrical values
Rated current : 4 A
Rated voltage: 250 V
Rated impulse voltage: 500 V
Pollution degree: 3
Ambient temperature: -25°C. . . +90°C
Contact resistance: ≤10mΩ
Overvoltage category: III
Insulating material group: III
Volume resistivity: ≤ 5 mΩ
Insolution resistance: ≧100mΩ
EMC compliance: not shielded
Degree of protection: IP67
Mechanical operation: >100 Mating cycles
Conductor structure: 32x0.1 mm
Wire cross section: 0.25mm2

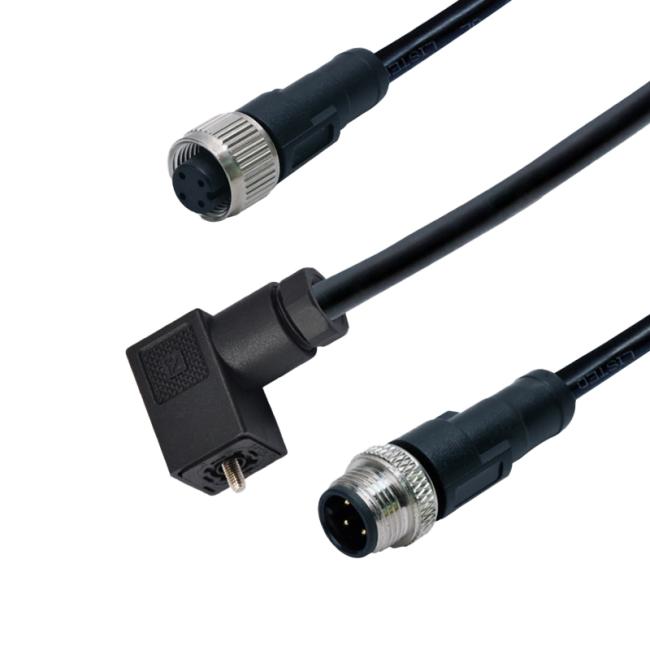

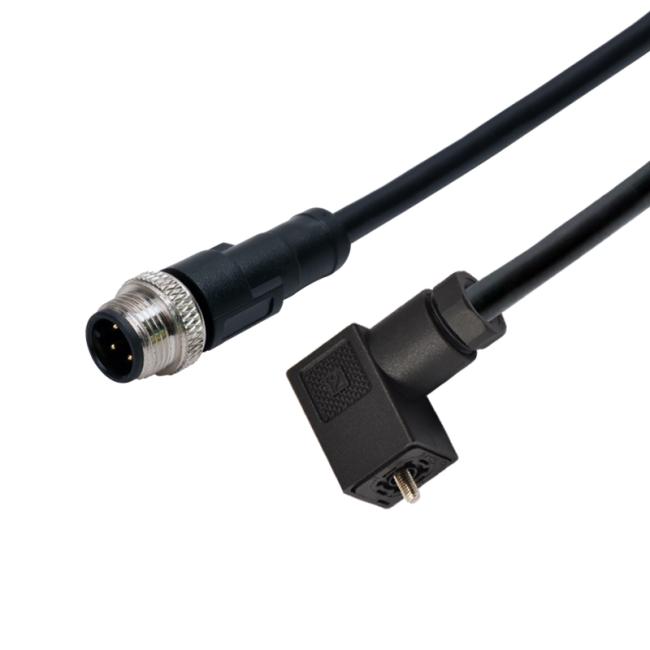

Product photos
FAQ
Q1. What kind of connectors you could supply?
A: M8, M12, M16, M23, Industrial waterproof connector, weipu connector, solenoid valve connector etc, also can customized based on buyer's requirements as long as tell us your details
Q2: How can I get a connector’s sample?
Sample in stock is free; you just need to pay shipping cost.
Q3: Is it OK to print my Logo on the product?
A: Yes, OEM/ODM service is available.
Q4: How to contact us?
A: Contact us with email/whatsapp/wechat
Q4: How does your factory do regarding quality control?
A: Quality is the priority.
