Rigoal IP68 Circular Connector , M14 4 Pin Male To Male Connector With Shielded
Waterproof Plastic Connector M14 4pins Assembly Connector Male To Male With Shielded
Features
- Waterproof Cap.
- Cost-saving.
- IP69K waterproof connectors to cable assemblies.
- Anti-oxidization and anti-UV.
- Compliant with the RoHS Directive.
- Customized orders are welcome.
- Plastic Housing: Engineering Thermoplastic. Flammability Rating UL 94V-0.
Quick Details
Product name:UCU connector
Gender: male to male
Current Rating:5A
Number of contacts: 4pins
Mating style: screw
Back Shell:Circular
Waterproof Rating:IP68
Seal for cable OD:Φ3mm~Φ7mm
Contact resistance:<5mΩ
Insulation resistance:≥500MΩ at DC500V
Breakdown voltage: ≥1000v/1minute
Assembly Style: Field Installable(Solder)
Material
Connector body: Flame Retardant Nylon
Contact:Brass C2680 and C17200 gold plated
Sealing:EPDM
| Connector size | UCU connector |
| Contacts | 4pins |
| Gender | male to male |
| Contact diameter | Φ1x4 |
| Current Rating | 5A |

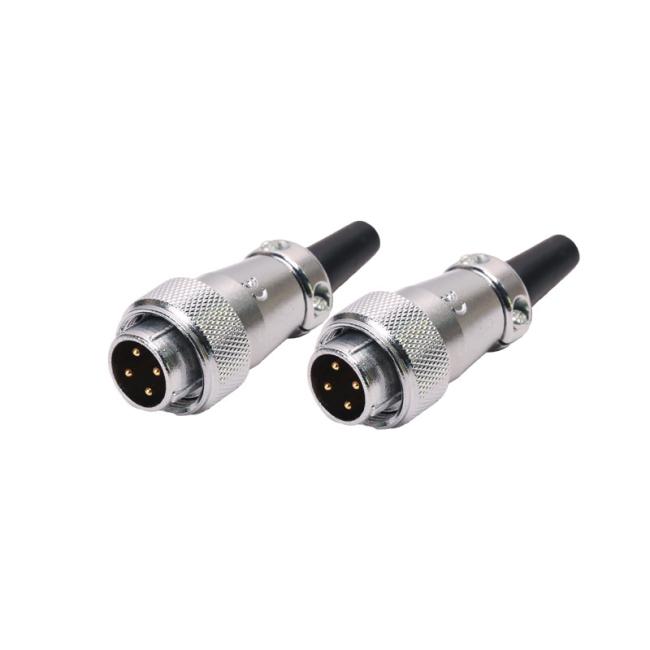

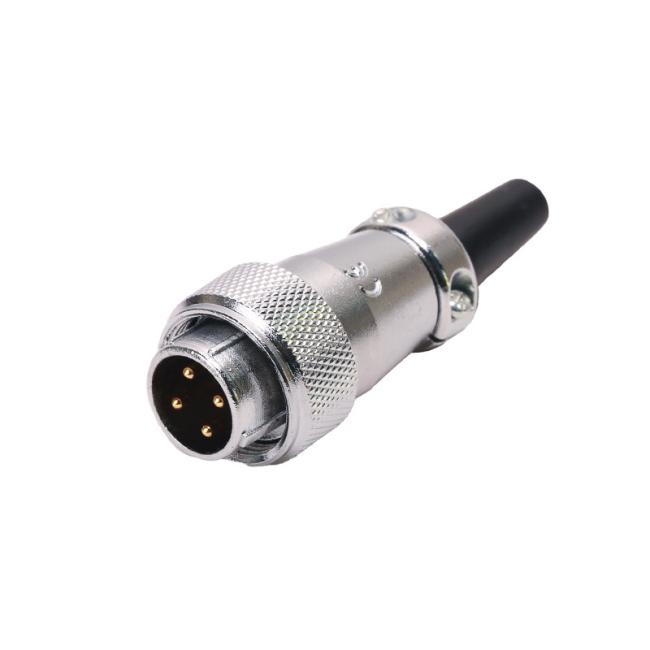

Product Photos
Our service
1. 100% high quality, all failed parts get free warranty within 30 days after received.
2. Accept 3 years warranty upon customer requirement.
3. Repairs parts are available within 3years; we will inform the EOL products to you from time to time
4. Free LOGO on the surface of over-molded connectors can be provided upon customer requirement.
5. Unique designed package for you can be provided upon customer requirement.
6. Special feature and service can be provided upon requirement.
