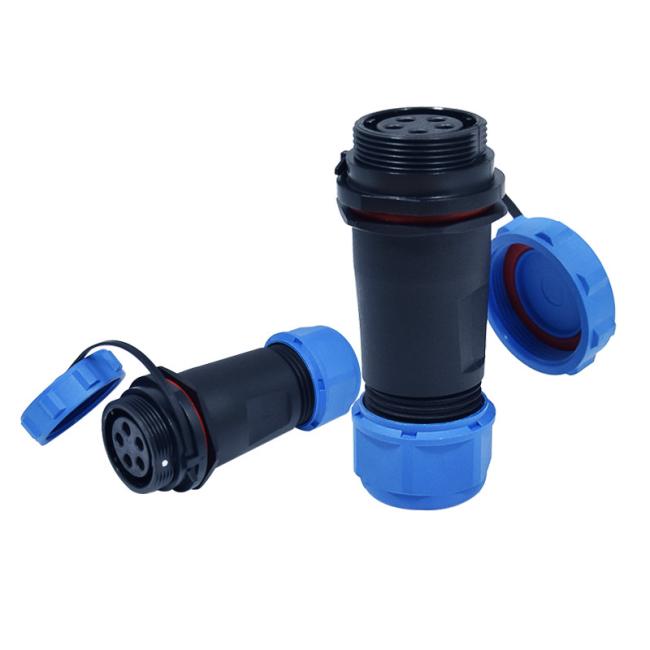

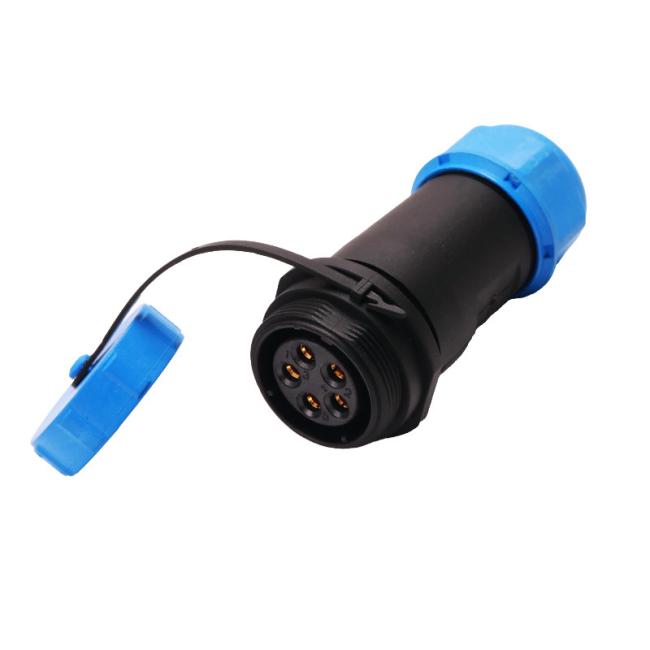

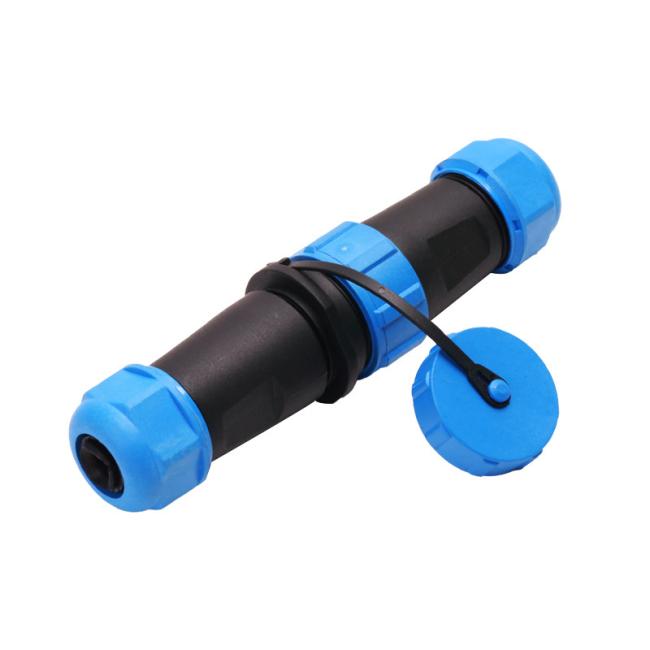

PA66 Circular In Line 5 Pin Female Connector SP21 IEC Standard
Weipu IP68 waterproof PA66 circular In-line 5 pin female connector SP21
Description
• The current and voltage rating of multi pin waterproof connector are 10A+5A/125V+60V.
• The current/voltage rating of IP67(push locking) or IP68(screw locking).
• multi-pins(2-8 pins) for varies industrial demands.
• Your drawings and samples are warm welcomed since our professional R&D team can help to customize the items you want.
• gold-plated contact, high performance of corrosion resistance and electrical conductivity effectively deal with temperature rise.
• Screw locking style and push locking,easy to assemble.
• High current application safety and stable wire.
• the copper needles of the connector is adopted gold-plated technology,which can resist corrosion and suitable for high/low temperature, current transmission is more stable and safety.
| Electrical Parameters | |
| Number of Poles | 5 |
| Current Rating | 50A max |
| Voltage Rating | 600VAC max |
| Durability Voltage | 2500VAC @ 60 s. |
Main features
1. Advanced structure: IP67 self locking connector
2. Multicore:2,3,4,5,6,7,8,9 to 32 pins are optional
3. Connection method: soldering(welding),screw terminal
4. Assembly: cable to cable ,male and female without cable
5. Certifications: UL, TUV, CE,ROHS,CQC.
6. Connection method: push pull locking type
| Technical Parameters | |
| Contact Resistance | 10 mΩ max |
| Insulation Structure | 500 MΩ at 500VDC |
| Operating Temperature | -40°C ~ +105°C |
| IP Class | IP67 (1m / 30min) |
| Mold Material | PA66 |
| Contact/Terminal Material | Gold Plated Brass |
| Seal Material | Silicone |
| Operation Parameters | |
| Voltage Rating | 600VAC max |
| Current Rating | 50A max |
| Min Wire Size OD | 6.5mm ~ 10mm |
| Max Wire Size OD | 10.5mm ~ 18mm |
| Max.Cable Cross Section Area | 0.5mm2 ~ 6.0mm2 |
