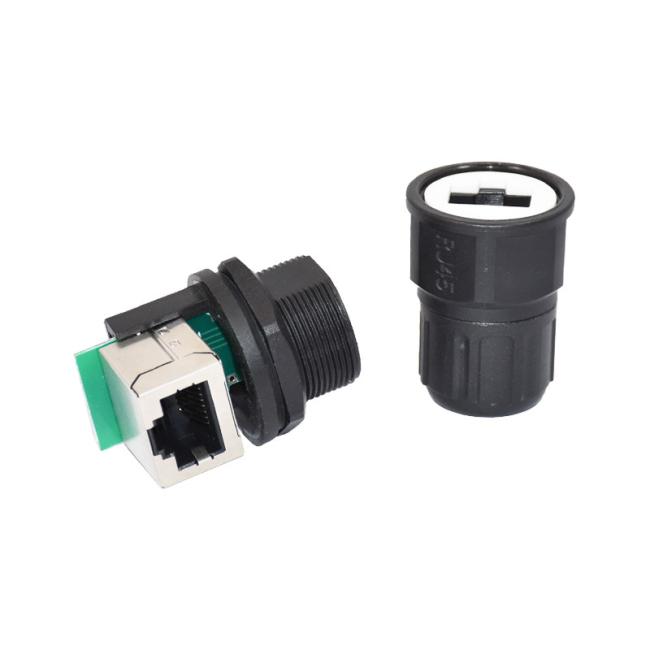

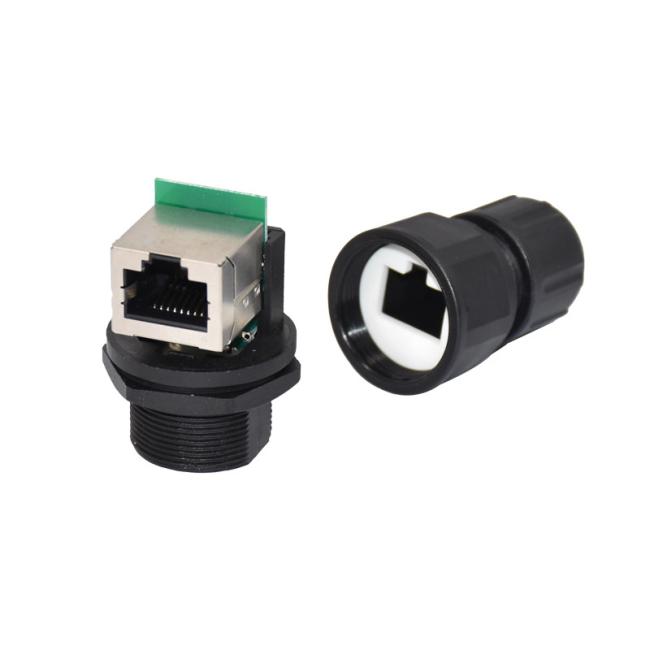

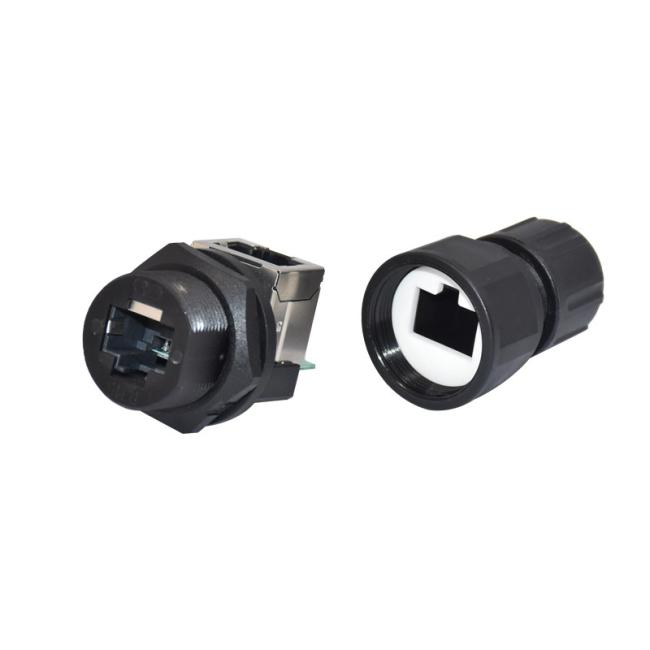

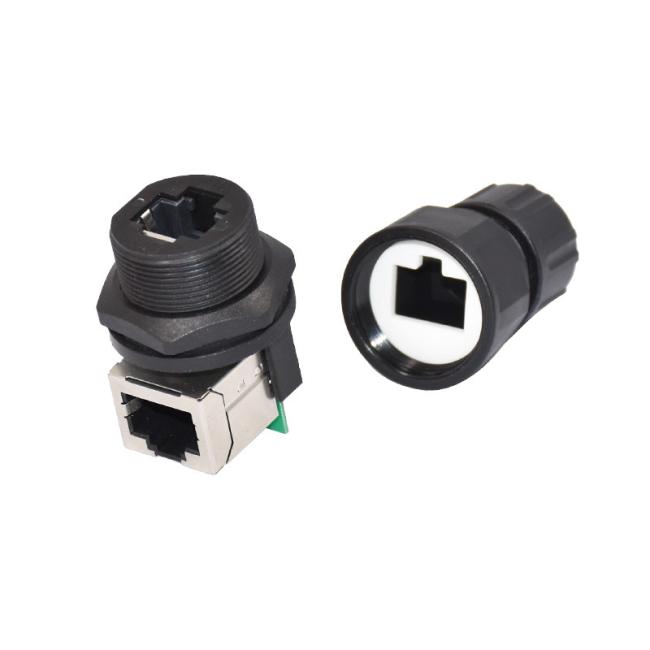

Industrial RJ45 Panel Mount Ethernet Waterproof Connector 1.5A
Industrial Ethernet Connector RJ45 Panel Mount Ethernet Waterproof Connector
General details
| Product name | RJ45 connector | Connecting mode | Screw locking |
| Brand | Jnicon | Application | LED screen/display |
| Voltage | 500V | Certification | CE, RoHS |
| Transmission speed | Cat 6 | Warranty | 3 years |
| Shell material | PA66(Nylon) | Protection level | IP68 |
| Contacts pin | 8 pin | Work temperature | -25℃--80℃ |
| Application | Audio & Video | Flame-resistant | UL94-V0 |
| Gender | Male + Female | Jack | RJ45 ethernet port |
Electrical Data
Moulding:Polycarbonate
Contact material: Phosphor Bronze
Contact plating: 50 micron gold
Operating Temperature: –40°C to +70°C
Mating cycles: 1,000 cycles Compliant
No. Conductors: 8
Current rating: 1.5A
Voltage rating: 30V ac, 42V dc
Contact resistance:10mW max.
Performance: Cat 5e
Conductor types: 24-28AWG, solid or multi- stranded
Degree of Protection: IP67
Application
High density
Heat resistant
Flame retardant
wear resistant
Waterproof,dustproof and sealed
High security,good perfomance and durability
