M8 Waterproof 3pin 4pin Male Female Right Angle Straight Assembly Sensor Connector
M8 Waterproof 3pin 4pin Male Female Right Angle Straight Assembly Sensor Connector
Quick details
1. M8 assembly connector 4pins female gender
2. Connector locking system is bolted
3. Termination is solder
4. Wire gauge(mm) is 0.25mm²
5. Wire gage(AWG) 24
6. Cable outlet can be 3,5 - 5,0 mm
7. Temperature will from -40° to +85°
8. Contacts 3.4.5.6.8pins avaliable
| Number of Contacts | 3 | 4 | 5 | 6 | 8 |
| Rated voltage | 30V | 60V | |||
| Contact resistance | <5mΩ | ||||
| Insulation resistance | <100mΩ | ||||
| Pollution degree | 3 | ||||
| Temperature range | 25 °C to 85° C | ||||
| Degree of protection | IP 67 when mated | ||||
| Mating times | 100 cycles | ||||
| Wire gauge | 24AWG | 26AWG | |||
| Cable jacket | PVC or PUR | ||||
| Material of housing | Brass Nickel Plated | ||||
| Material of insert | PA+GF UL9V-0 | ||||
| Material of contact | Brass phosohor bronze gold plated | ||||
| Housing Color | - Black |
| Type of Contact | - Female Right Angle |
| Number of Poles | - 3 4 |
| Cable Gland | - M9.5 x 1 |
| Rated Voltage | - 60V AC/DC |
| Rated Current | - 4 Amps (2 A at 0.14mm2) |
| Suitable Cable | - 4 mm to 5 mm / 0.14 mm2 to 0.34 mm2 |
| Core Insulation of Connecting Leads | - PVC, PETP, diameter 1.0 mm to 1.55 mm |
| Protection Class | - IP 67 (total protection from dust and temporary immersion in water - up to 1 meter for up to 30 min) |
| Contact Material | - Cu Sn |
| Contact Surface Material | - Gold |
| Contact Bearer Material | - Polyamide |
| Housing Material | - Polyamide |
| Coupling Nut Material | - Zn Ai/Ni |
| O-Ring | - Viton/NBR |
| Operating Temperature | - -25 C to + 70 C (-13 F to 158 F) |
| Type of Termination | - Pin Penetration |

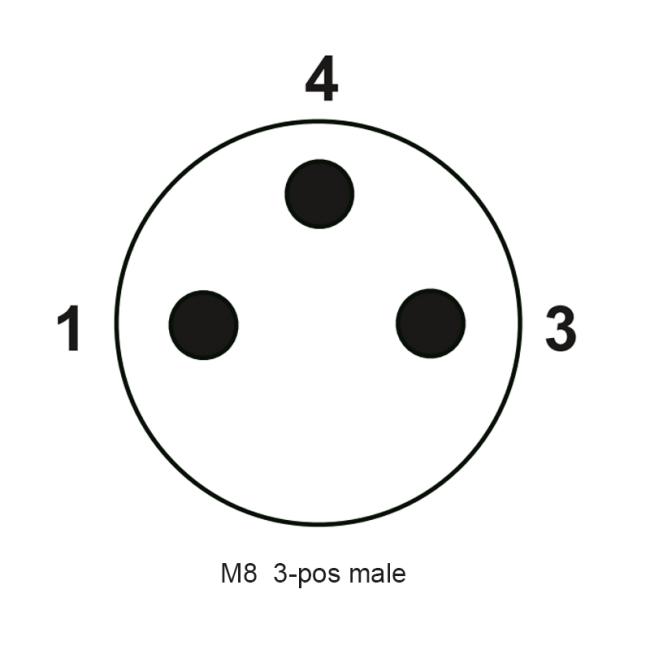

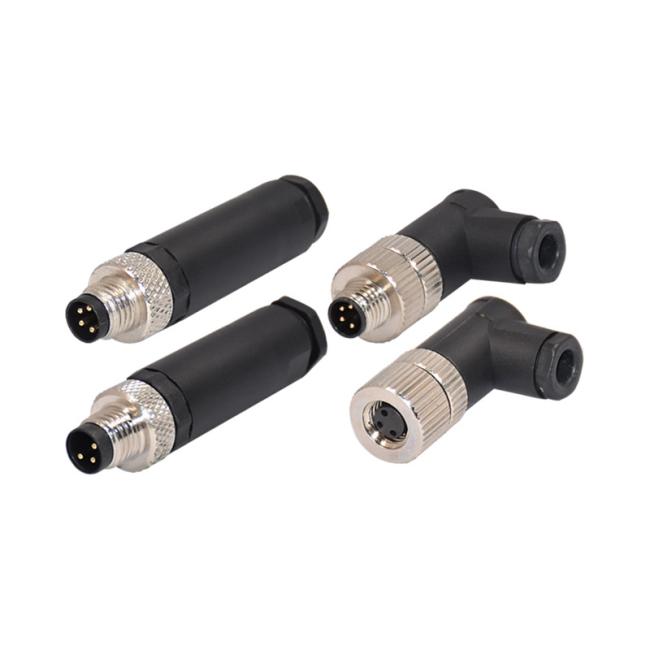

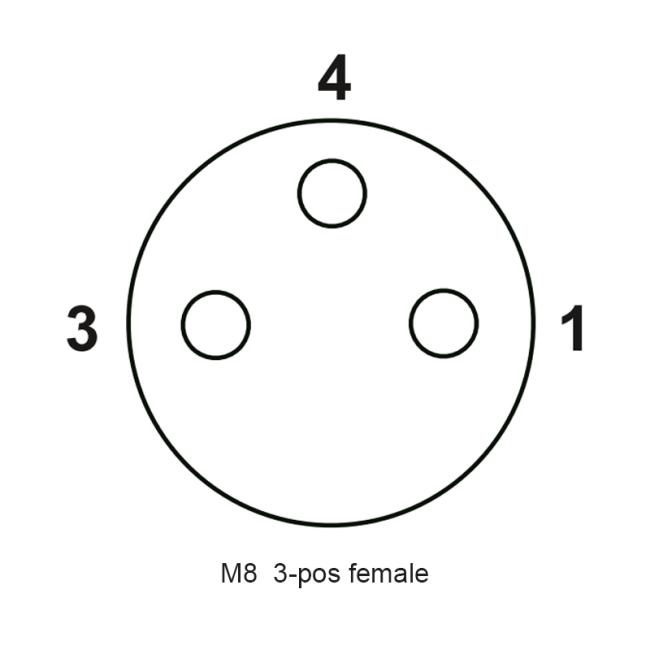

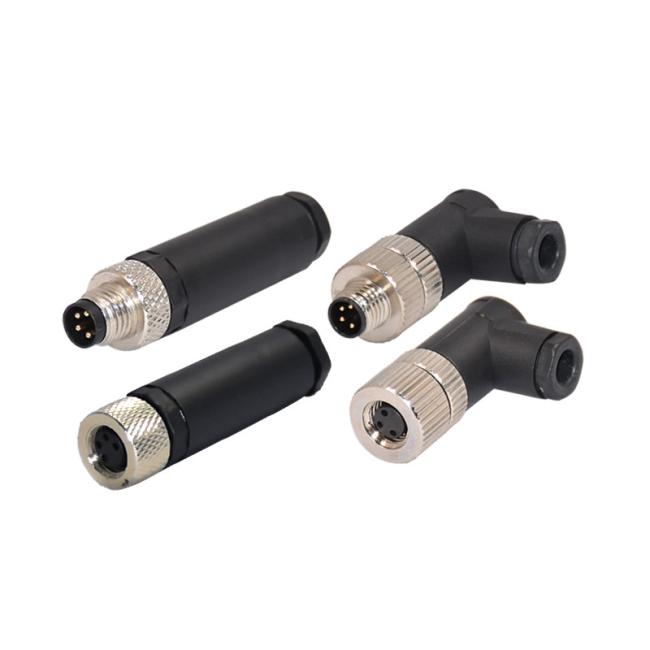

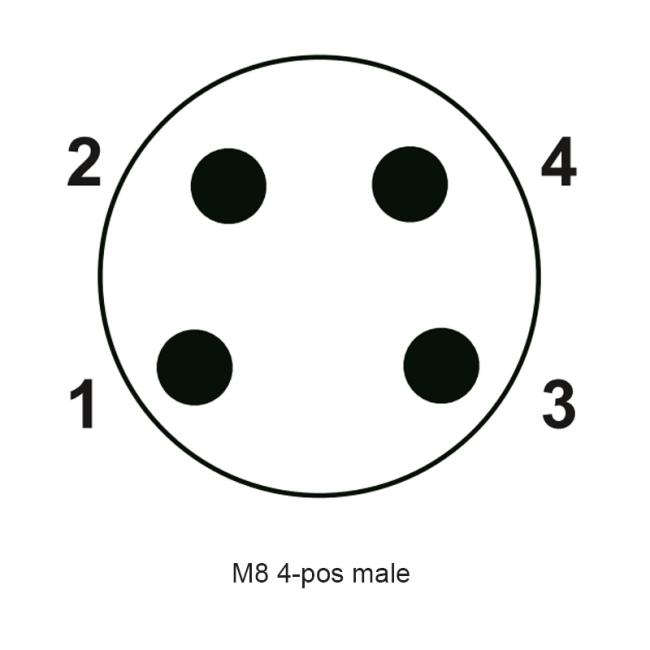

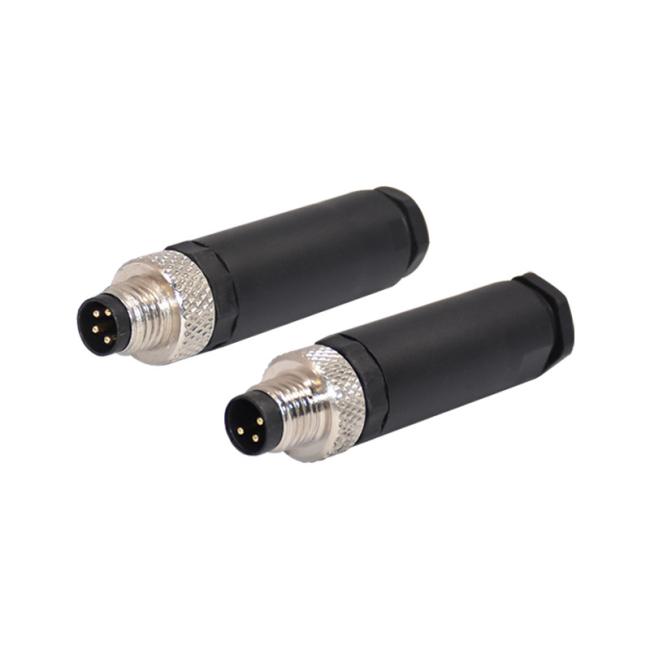

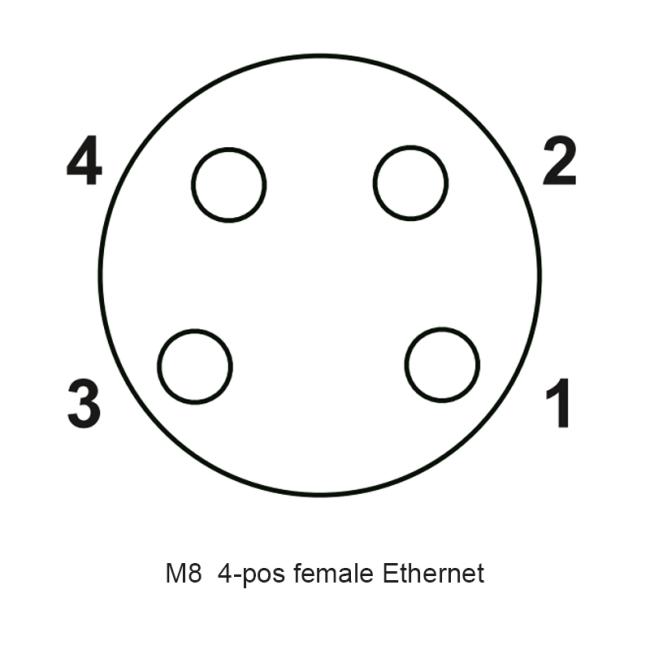

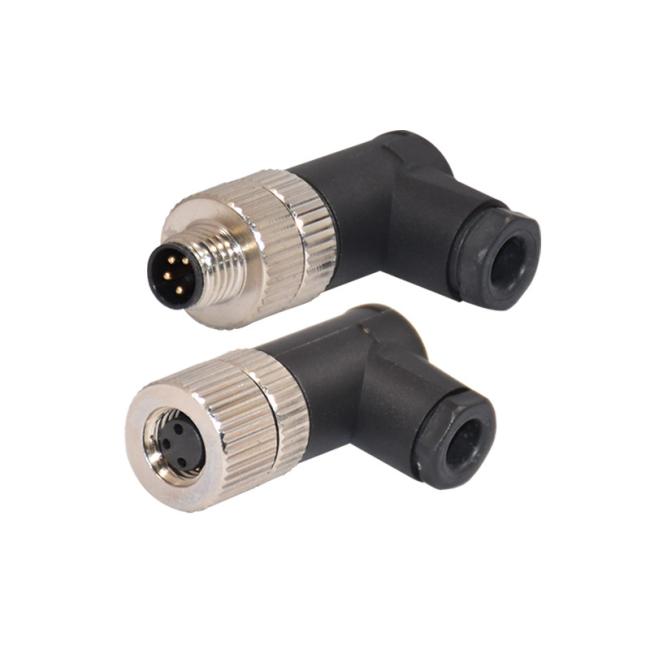

Product photos
Packsging & Shipping
1.Our general packing: PE bag and PE bag contons. General Carton size:40*30*30cm
2.Customized according to customer's request
M8 connector can be used a wide fields like LED, Automation, Sensor, mechanise equipment etc.
• LED lighting , white light , color light etc
• Low current equipement
• Connector be used in narrow environment
• Communication equipement
• Lighting harness
