IEC Standard IP67 Solder Type Rear Fastened M12 Lock Automotive Male Waterproof Connector With Panel Mount And Wires

Price Negotiable
Price: negotiable
MOQ: 100
Delivery Time: 14
Brand: RIGOAL
Product Description

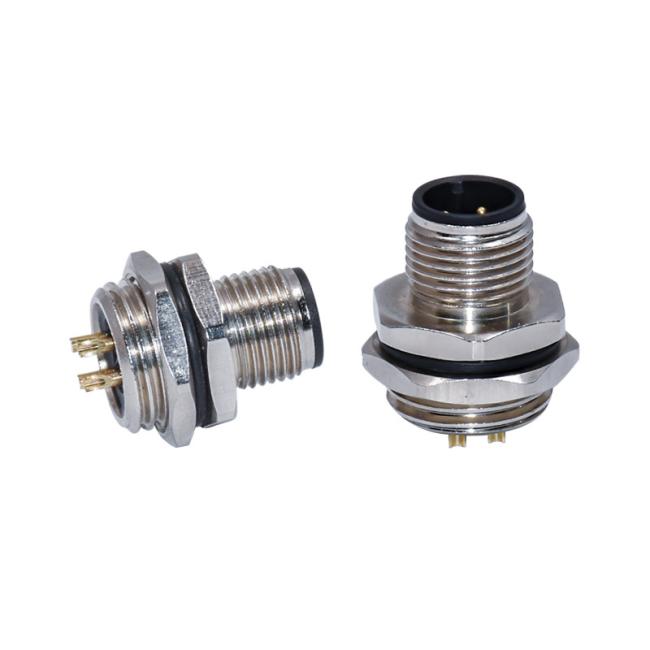

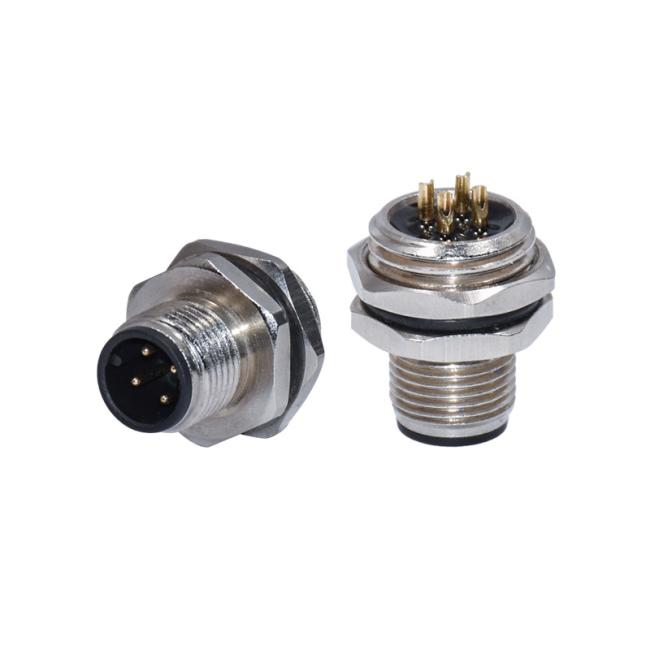

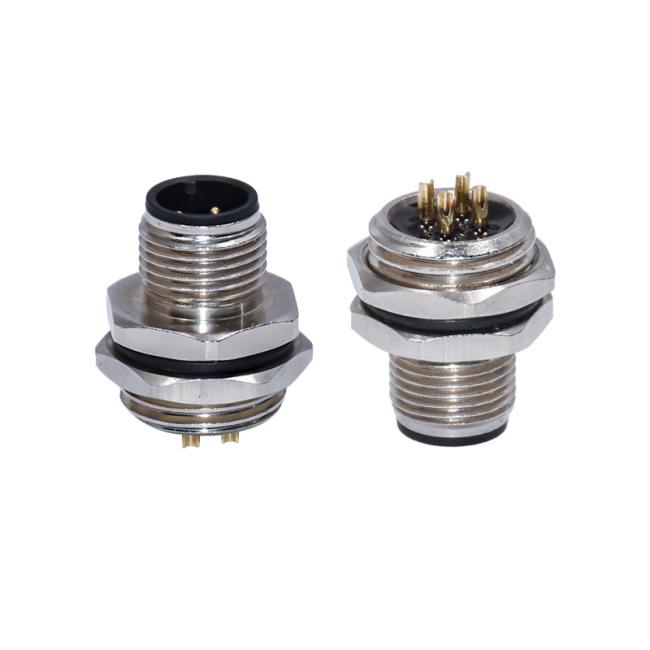

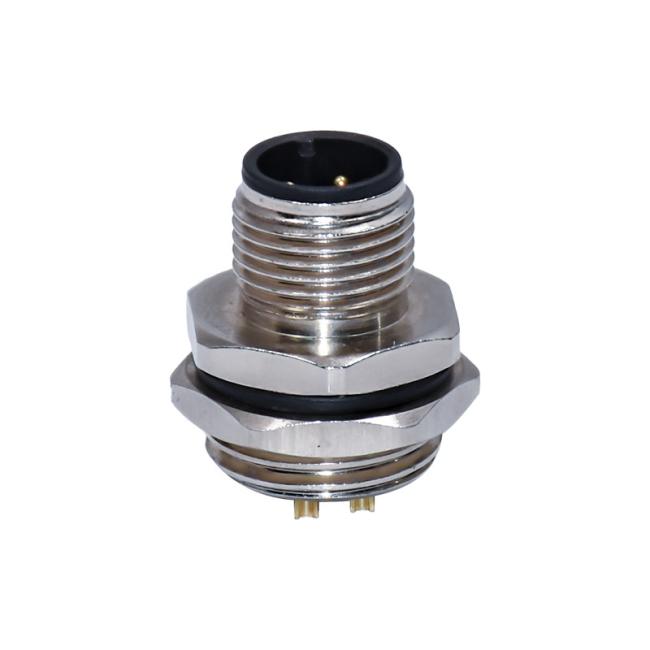

IEC Standard IP67 Solder Type Rear Fastened M12 Lock Automotive Male Connector With Panel Mount And Wires



General Infomation
Standard IEC 61076-2-101 Insulation Resistance ≥100MΩ
Ambient Temperature -25℃~+90℃ Contact Resistance ≤5mΩ
Connector Insert TPU Shielding Unavailable
Connector Contacts Brass with Gold Plated Seal/O-ring Epoxy resin/FKM
Coupling Nut/Screw Zinc Alloy/Brass with Nickel Plated Mating Endurance >500 cycles
IP Rating IP68/IP69K in locked condition Certificate UL/CE/ROHS/IP67/REACH/IP68
