China Power Straight Plug Connector 4 6 7 9 12 16 17 19pin IP67 M23 12 Pin Male Female Connector for sale

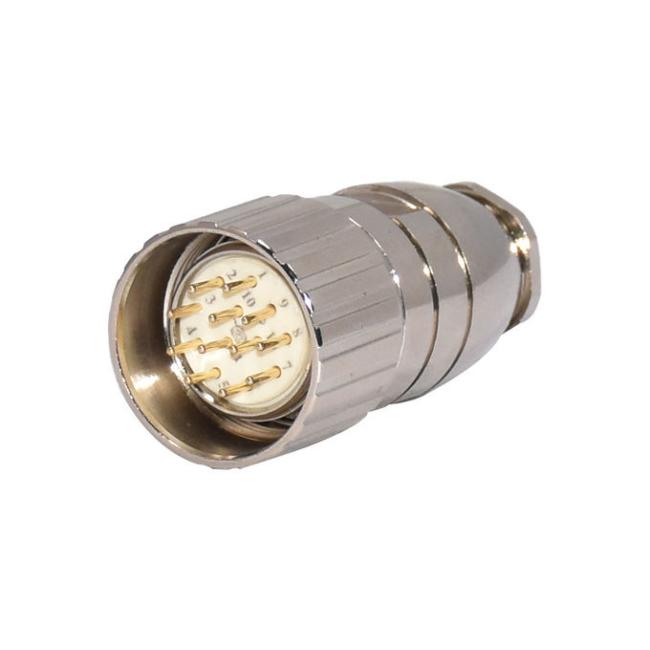

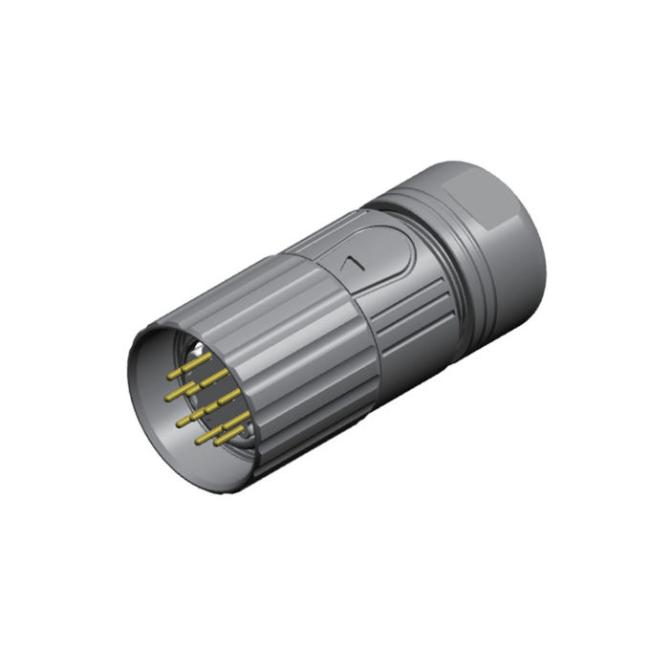

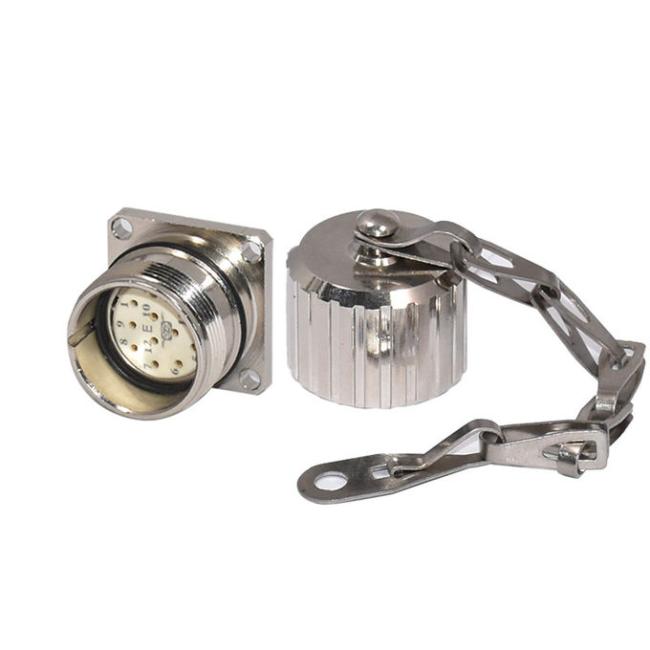

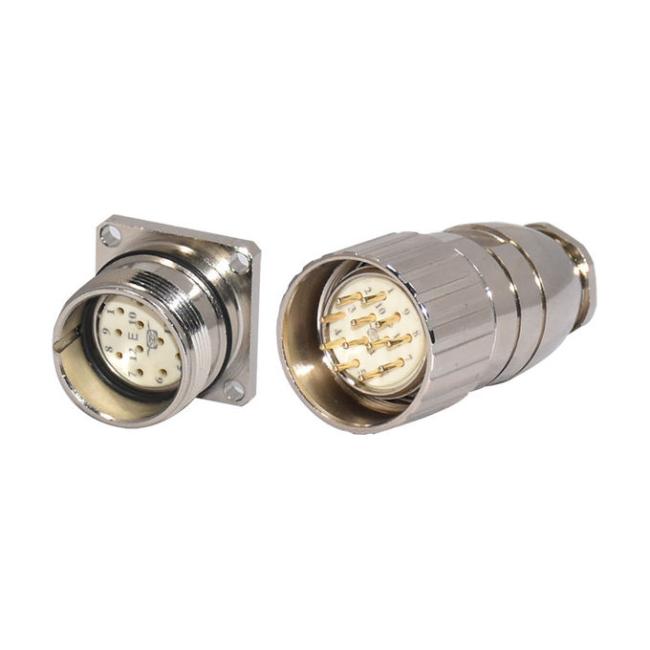

Power Straight Plug Connector 4 6 7 9 12 16 17 19pin IP67 M23 12 Pin Male Female Connector

Price Negotiable
Price: negotiable
MOQ: 100
Delivery Time: 10-15 work days
Brand: RIGOAL
Product Description

Ip67 Waterproof M23 12 Pin 12PIN 12E Female / Male Plug Encoder Solder Servo Motor Signal Hummel Electrical Power Connector



Specification
item
value
Place of Origin
China

Guangdong
Brand Name
RG-connector
Model Number
M12 to Solenoid value connector
Type
ADAPTER
Application
Automotive
Gender
Female
Pins
12P
Connector locking system
screw
Termination
solder
Cable outlet
6-10 mm
Degree of protection
IP67
Mechanical operation
> 50 mating cycles
Temperature Range
-20°C~125°C
Rated voltage
150V
Material ot contact
CuZn (Messing/brass)
Contact plating
Au (Gold/gold)
Material of contact body
PBT/PA66
​
