Front Panel Mount M12 D Coded Connector IP68 PA66 Ethernet And Profinet
Price:
negotiable
MOQ:
100pcs
Delivery Time:
5-8working days
Brand:
Rigoal
Product Description

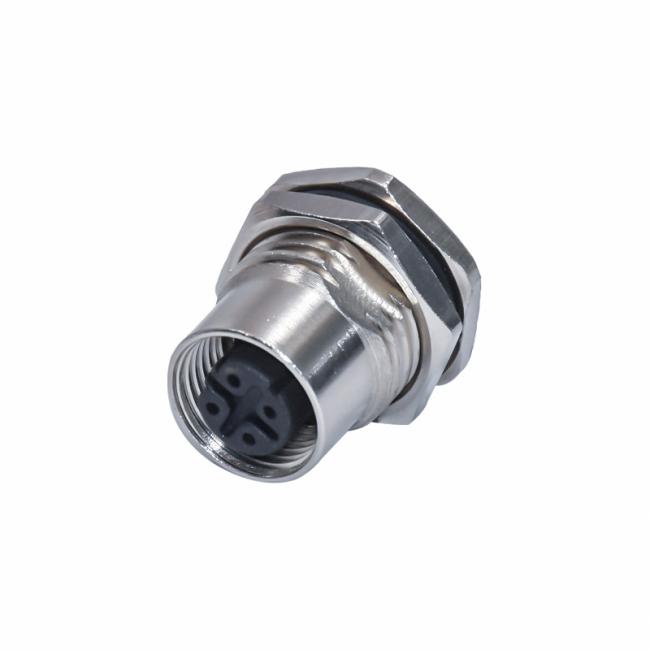

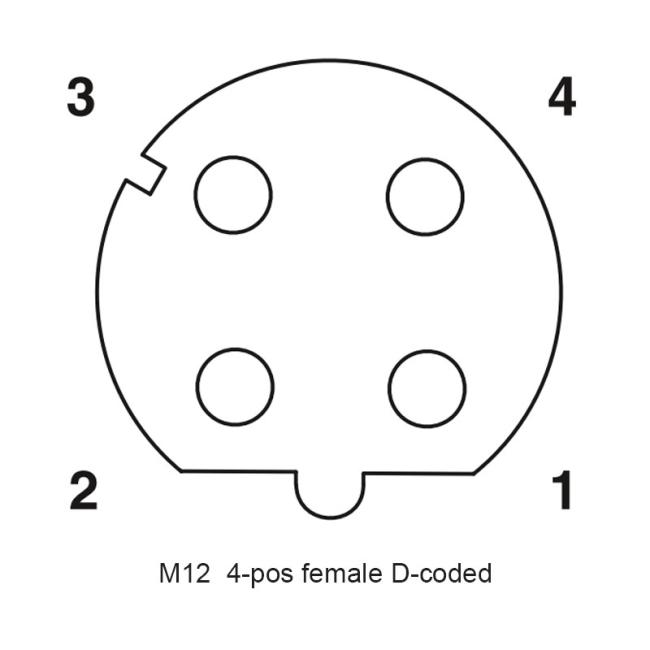

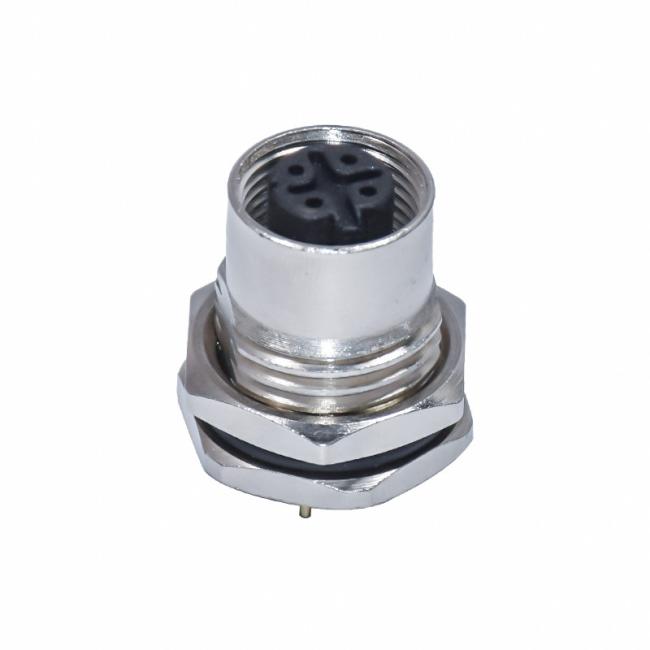

M12 4pin Female D Coded Front Panel Mount Connector Ethernet And PROFINET M12 Connector

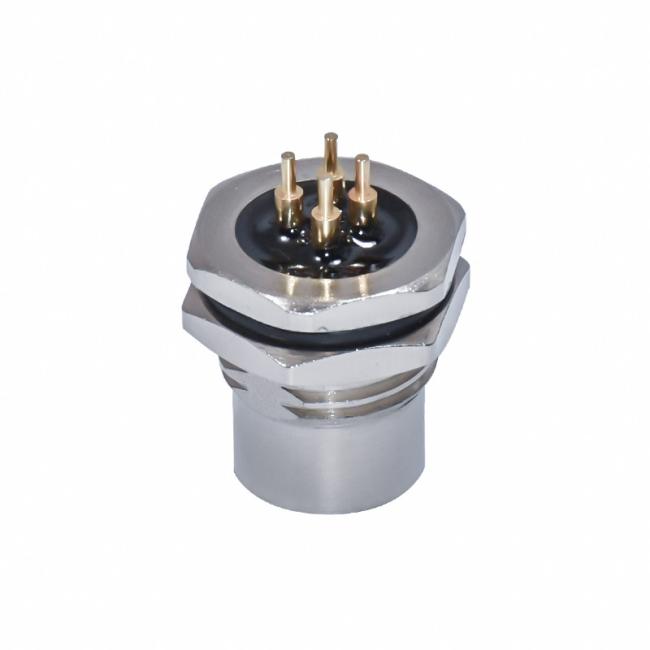

Bus system flush-type socket, Ethernet and PROFINET, 4-pos., M12 SPEEDCON, shielded, D-coded, rear/screw mounting with M16 thread, with straight solder connection
General
| Nane | M12 4pin D coded connector |
|---|---|
| Rated current at 40°C | 4 A |
| Rated voltage | 250 V |
| Rated surge voltage | 2.5 kV |
| Number of positions | 4 |
| Insulation resistance | ≥ 100 MΩ |
| Coding | D - data |
| Standards/regulations | M12 connector IEC 61076-2-101 |
| Status display | No |
| Overvoltage category | II |
| Degree of pollution | 3 |
| Connection method | Solder pins |
| Insertion/withdrawal cycles | > 100 |
| Torque | 3 Nm ... 4 Nm (Installation-side) |

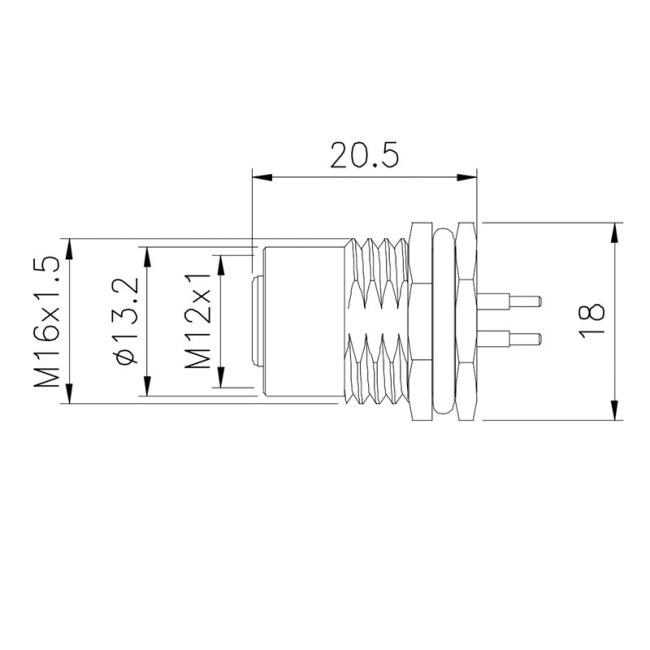

| Mounting type | Rear mounting M16 x 1.5 With flat nut |
| Thread type | M16 x 1.5 |
Material
| Flammability rating according to UL 94 | V0 |
|---|---|
| Contact material | CuZn |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material, knurls | Zinc die-cast, nickel-plated |
| Sealing material | NBR |
Bus system flush-type socket, Ethernet and PROFINET, 4-pos., M12 SPEEDCON, shielded, D-coded, rear/screw mounting with M16 thread, with straight solder connection
