16A metal power waterproof connector

IP67 assembly straight 3Pin 4pin 5pin 8pin metal m12 male connector

Features:

Model: M12
Number of Pins: 4/5/8 Pin
Cable Outlet: 4~7mm (PG7)
Connector Type: Male/Female Straight/Right Angle (Optional)
Coupling: Threaded Coupling
Termination: Screw
Wire Size: 0.14-0.5mm (AWG 26-20)
IP Rating: IP67
Rated Voltage: 250V (4 Pin): 60V (5 Pin) 30V (8 Pin)
Withstand Voltage: 2500V (4 Pin) 1500V (5 Pin) 800V (8 Pin)
Rated Current: 4A (4/5 Pin) 2A (8 Pin)
Operating Temperature: -25°C-85°C
Shell Color: silver
Contact Resistance: ≤3 Ohm
Insulation Divison: Ⅲ
Over Voltage Protection Level: Ⅱ
Quantity: 1 Pc

For more details, please contact us. We will send you picture or drawing for your approval before offer you samples.

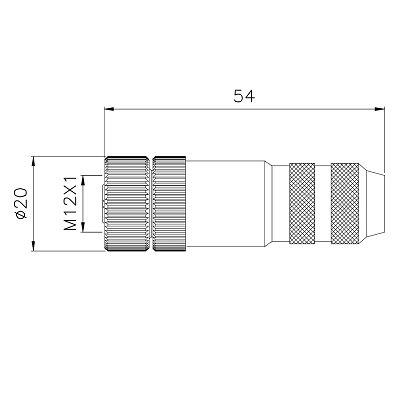

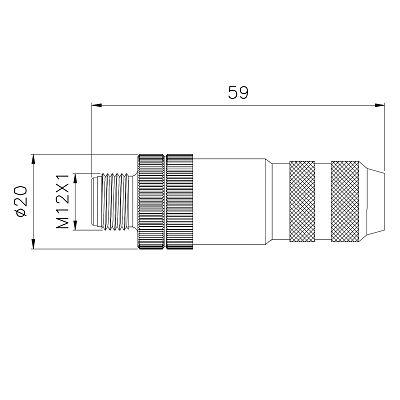

M12 Metal Male / Female
Assembly Cable Plug(Shield)

Series: M12 connector

Number of pin: 4, 5, 8 pin
Certification: RoHS
Waterproof: IP67

Advantages:

Field wiring, widely used in railway manufacturing, subway construction, industrial automation and other fields.

Certifications

The connector products are widely used in bus components, ethernet, solenoid valvees, press stiches, motors-control, protoelectric barries, flow monitoring devices, proximity switches, and sensors in hydraulic, pneumatic and automation industries.

Package&Shipping:

Packaging
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.

Shipping
We can according to customer request choose different ship way,which more converence ,which we will choose!
