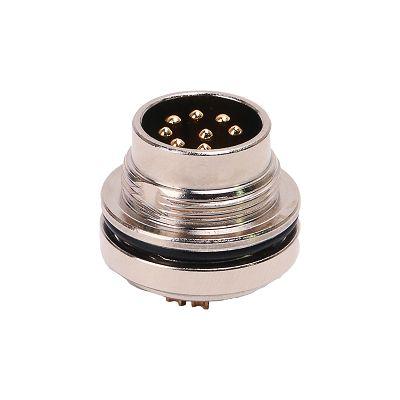

M16 male rear panel mount connector

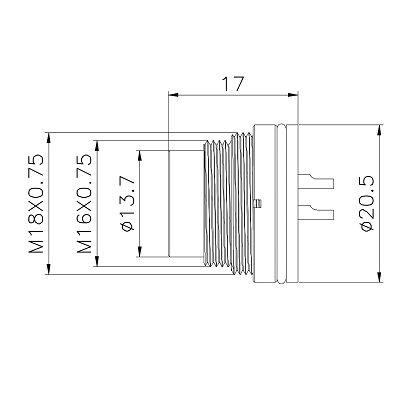

Product diagram

Available Description:

Stainless steel screw is available

IP67/IP68, RoHS, REACH, UL certificate

Generally Description:

Connector Series: M16

Standard: IEC 61076-2-101

Coding: A

Pins: 2/ 3/ 4/5/6/7/8/9-----24pins

Gender:Male

Connector Design: Panel mount

Connector Locking System: Fix screw

Waterproof Rating: IP65/IP67

Ambient Temperature: -30°C~+90°C

Material:

Connector Body: PA66+GF

Contacts: Phosphorus copper with gold plated

Screw/Nut: Brass with nickel plated

Waterproof 0-ring: FKM

Glue: Black epoxy resin

Wire Jacket: PVC

Electrical data:

Rated Current: 3A

Rated Voltage: 250V

Contact Resistance: ≤10mΩ

Insulation Resistance: ≥100MΩ

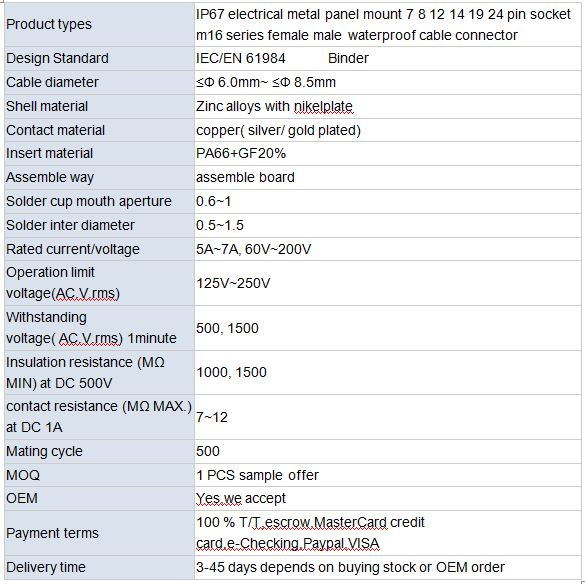

Product parameter

Certifications

Package&Shipping:

Packing Details :

1. Our standard packing: Individual part with transparent PE bag with label;

2. OEM package available

Shipping Methods :

1. Samples and Small quantity order

FedEx/DHL/UPS/TNT/SF ,Door to Door.

2. Batch goods : Express, By Air, by Sea or by Rail

3. FCL: Airport/Seaport/Railway Station receiving

Our Services

Customers want

1. High quality and competitive price

2. Stable delivery and excellent service

3. Reliable warranty and after-sales service

We provide

1. 100% quality assurance, all broke parts can be guaranteed within 30 days after received.

2. According to customer requirement, provide 10 years warranty.

3. Repairs parts are available within 10years; EOL products will be always informed to you.

4. Supply free LOGO to the surface of over-molded connectors upon customers' requirement.
