Solder Termination 15A M12 D Code Connector 26AWG TPU GF
M12 D code molding waterproof cable
Characteristics of M12 Series
| Model No. | M12C04 | |
| Material | Connector Body | Nylon(PA66)+GF UL94V-0 1/16' |
| Contact | Brass with Gold Plated | |
| Sealing | Silica Gel | |
| Property | Current Rating | 15A |
| Voltage Rating | 100V | |
| Contact Resistance | <10mΩ | |
| Insulation Resistance | 10MΩ at DC 200V | |
| Breakdown Voltage | 1.5KV/1minute | |
| Temperature Rating | -40°C~+105°C | |
| Durability(Plug/Unplug) | 3000 times | |
| Waterproof Rating | IP67 | |
| Cable Max. Diameter | 7.0 mm | |
| Pins Range | 3, 4, 5, 8, 12,17 | |
| Certificate | CCC; CE; Rohs | |
The M12 circular connector that we produce conform to international standard for IEC61076-2-101 with M12*1.0 screw locking.
Waterproof rating is IP67, protected from dust and water during immersion,resistant to many oils and chemical.
M12 offers many different cable connectors, panel mounted receptacles, field attachable/installable connectors and its accessories. Connectors have industry- standard A, B, D ,X,S,T,K,Lcoding, for both screw-locking and quick-locking system.

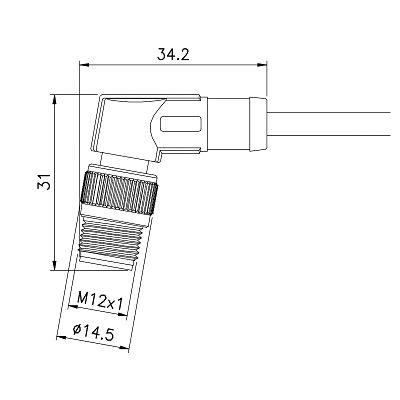

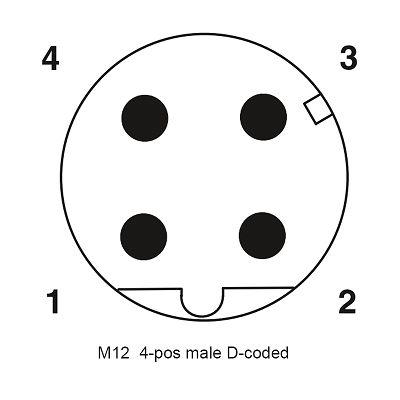

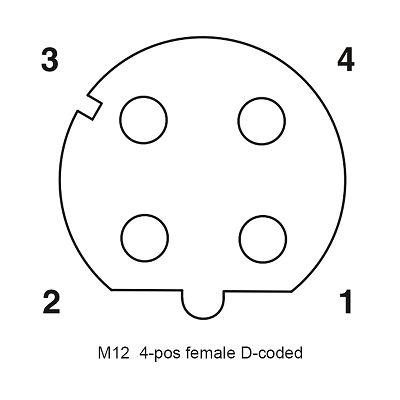

Product diagram
Advantages:
1. High degree of protection IP67, safe to use on site
2. High quality gold-plated solid phosphor bronze contacts , ≥ 600 times mating life
3. Anti-vibration locking screw design
4. Support samples, retail and bulk orders
 |
 |
 |
 |
Certifications
Our Services
1. High quality and competitive price
2. Stable delivery and excellent service
3. Reliable warranty and after-sales service
4.100% quality assurance, all broke parts can be guaranteed within 30 days after received.
5. According to customer requirement, provide 10 years warranty.
6.Repairs parts are available within 10years; EOL products will be always informed to you.
7.Supply free LOGO to the surface of over-molded connectors upon customers' requirement.
Package&Shipping:
Packaging Details:
1.Our standard packing:
Individual part with transparent PE bag with label;
cartoon size:46*30*30(mm)
OEM package available.
2.At buyer's option
Delivery Time: Usually shipped within 7-10 days after payment.
