M12 CuZn AWG24 Welded Flange Male Connector 3 PIN 4A PA

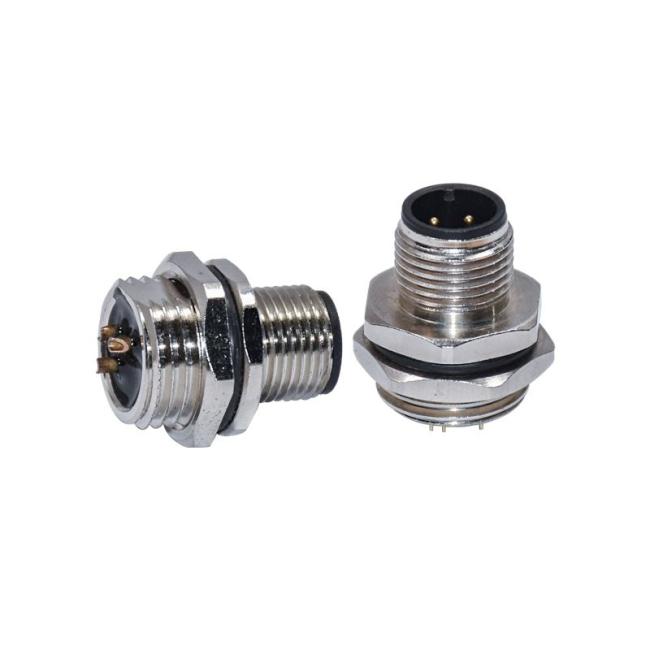

M12 3PIN welded flange male rear lock panel mounting connector
| Coding | A / B / C / D / K / L / X / S / T Code |
| Number of Positions | 2 / 3 / 4 / 5 / 6 / 8 / 12 / 17 PIN |
| Gender | Male / Female |
| Orientation | Straight / Right Angle |
| Mounting Type | PCB Mount / Panel Mount / Cable |
| Termination Style | Solder Type / PCB Mount |
| Mounting Feature | Front Mount / Back Mount / 3 Hole Flange |
| Temperature Range | -25°C ~ + 85°C |
| Rated voltage | 250V for 3/4 pin, 60V for 5pin, 30V for 8/12/17pin |
| Product Keywords | Metal Waterproof Panel Mount M12 Connector,M12 Panel Connector 3pin |
M12 Panel Receptacle series provides three kinds of mount choice: PCB Mount, Panel Mount & Cable, and have three features of mount: Front Mount, Back Mount, 3 Hole Flange. According to IEC 61076-2-101/104 standard, complying with IP67 protection level.
Products Feature
M12*1 thread locking mechanism, anti-vibration locking design;
Easy quick connect and disconnect coupling;
Pin configurations: 2, 3, 4, 5, 8,12 and 17 positions;
A, B, C, D, K, L, X, S, T coding available;
Meets IP67/IP68 waterproof requirements;
Temperature Range: -25°C ~ + 85°C ;
Alternative mount arrangements for solder cup or PCB;
Panel Mount and distribution version available;
Available as a loose piece or as a pre-made M12 cables;
M12 Circular Connector is mainly used in outdoor light boxes, construction machinery, steel production equipment, power equipment, mining machinery, ship machinery, automotive equipment, production automatic equipment, temperature transmitters, hydraulic machine tools, sensors, solenoid valves, instruments, Pressure transmitters and more.
