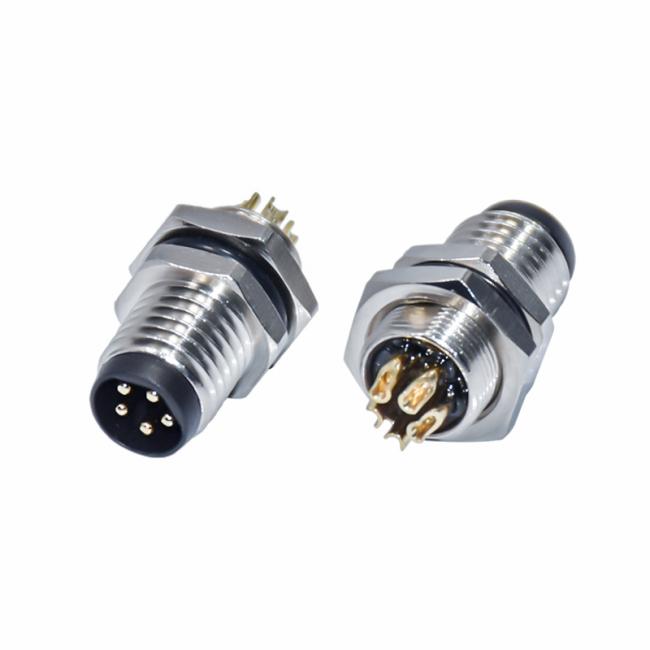

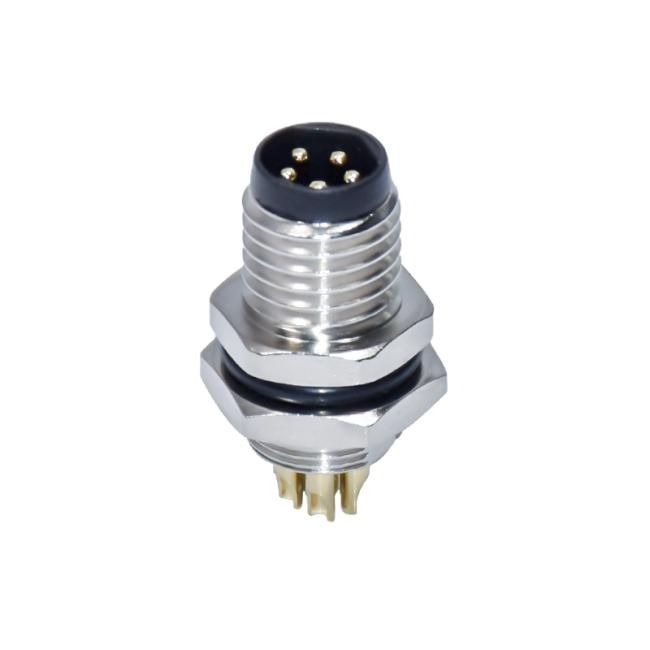

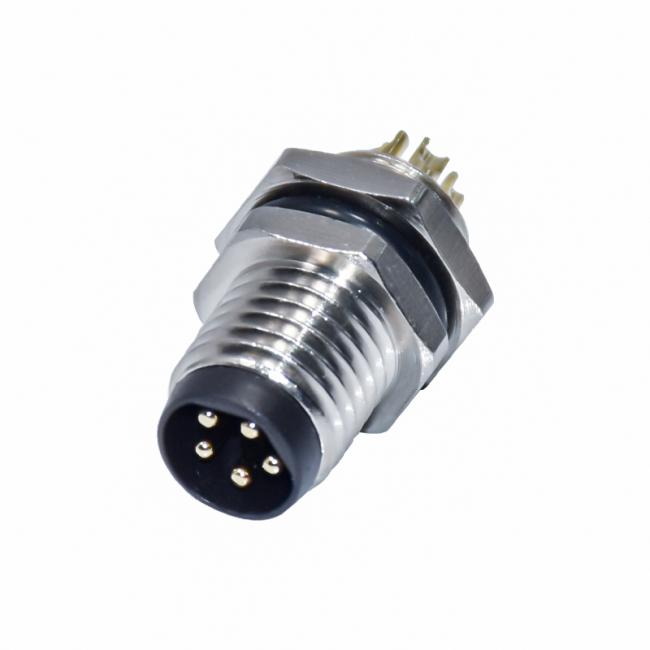

Rear Lock Transparent TPU M8 Flange Connector Solder 5 PIN IP67 Brass
| item | value |
| Place of Origin | China |
| Guangdong | |
| Brand Name | Rigoal connector(RG) |
| Model Number | M8 5pin |
| Type | Panel installation |
| Application | Military |
| Gender | Male |
| Pins | 5P |
| Number of Cores | Five Core |
| Product name | M8 5PIN panel mounted with waterproof military male connector |
| Termination | Termination |
| Insert material | TPU+GF |
| Contact material | Brass with gold plated |
| Overmold material | Transparent TPU |
| Coupling material | Brass with nickel plated |

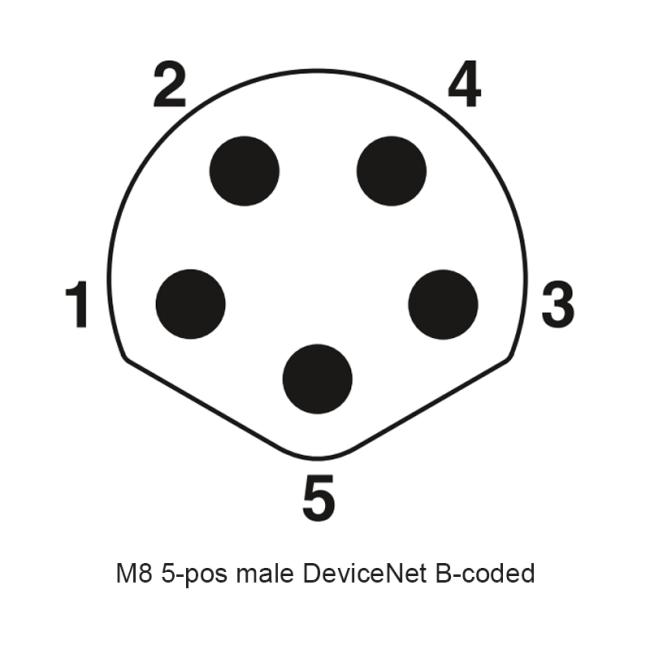

| Number of pole | 5pins |
| Operate temperature | -20℃~+80℃ |
| Degree of protect | IP67/IP68 |
| Standard | IEC 61076-2-101 |
Product Description
Panel-mounted metal 5pin M8 connector waterproof IP67 circular sensor description :
M8 series connectors provides a wide range of metric for small sensors and actuators.
The ingress protection is available and rated to IP 67, these connectors are ideally suited for industrial control networks wheresmall sensors are required. Connectors are either factory TPU over-molded or panel receptacles supplied with sold-cup for wireconnecting or with PCB panel solder contacts. Field attachable / mountable connector is also available for your choice.
|
|
|

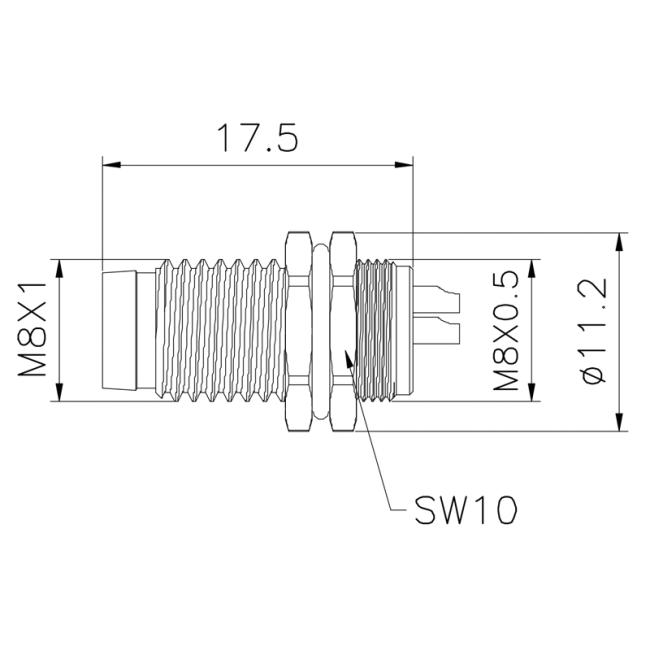

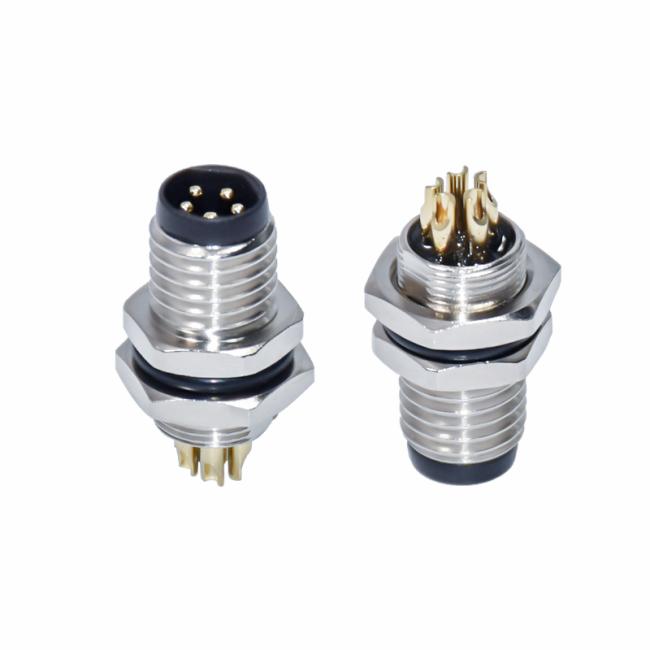

The M8 panel receptacles are ideal for compact and space-sensitive industrial applications. CABLEFORCE M8 panel connectors are
available with solder termination and PCB panel assembly type, with rear mounting and front mounting.
Packing & Delivery
Packaging
1. Generay Package :Each pcs put in one samll waterproof PE bag,then put in a carton
Details: Add the label, about 200 hundred pieces connector put in one carton, Carton size:46*30*30cm
2. OEM/ODM package is avaiable
3. According to customer choice.
Shipping
We can according to customer request choose different ship way,which more converence ,which we will choose!
