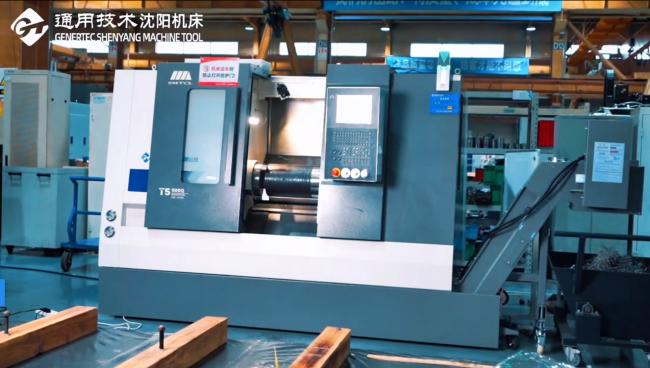

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

Product Description:

SMTCL T5.2-500Q Horizontal 12-station power turret Pump Rotor Shaft Processing CNC Turning Center

T5.2-500Q series horizontal CNC Turning Center, combining intelligent control technology and advanced manufacturing technology, has high precision, high efficiency and high cutting rigidity. The finite element analysis software is used to optimize the design, analyze the distribution of stress points, reduce the deformation of parts, and achieve the optimal structure of the whole machine. The main castings are all made of high-strength cast iron materials, which ensures the minimization of vibration during the cutting process and improves the machining accuracy and cutting stability.

Product Features:

1,High Precision

Product Paramenters:

Item		Unit	T5-500Qm
Max. turning diameter		mm	280
Max. turning length		mm	450
Max.swing diameter over bed		mm	Φ560
Max.swing diameter over cross slide		mm	Φ350

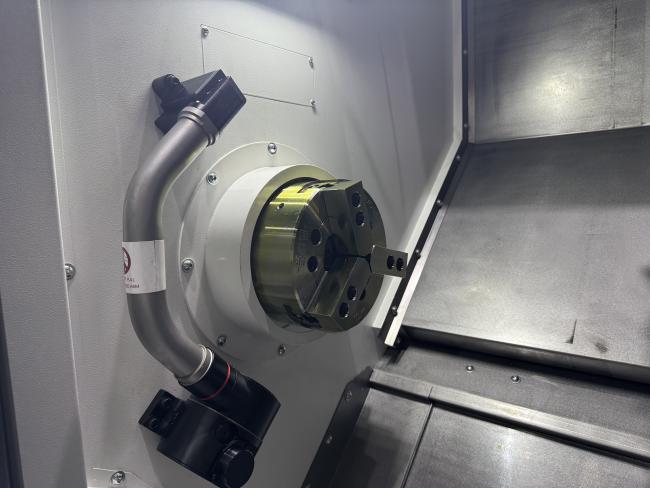

Spindle	Type of spindle nose		A2-6
	Inner diameter of front bearing	mm	Φ100
	Taper of spindle bore		1:20；Φ70
	Spindle bore	mm	Φ65
	Max. through bar diameter	mm	Φ50
	Standard chuck diameter	inch	8
	Max. spindle speed	r/min	4500
	Spindle rated torque	Nm	130
	Max. spindle torque	Nm	230
	Main motor output power continuous /30 minutes	kW	11/15
Two axis	Rapid traverse of X/Z axis	m/min	30
	X axis travel	mm	170
	Z axis travel	mm	560

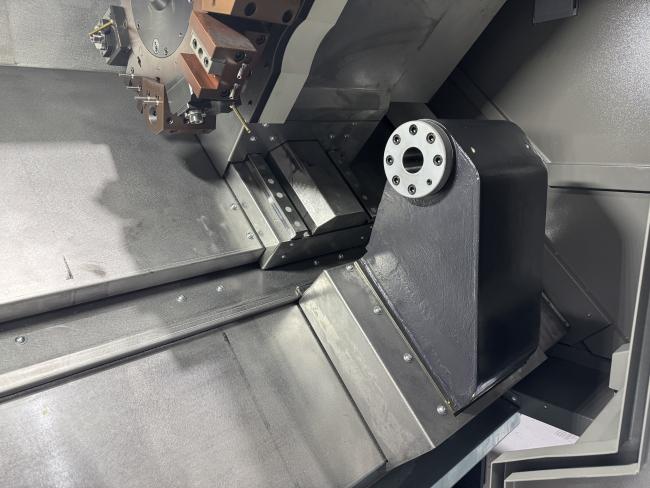

Tailstock	Tailstock travel	mm	500(Servo drive)
	Tailstock quill taper	Morse	MT-5
Turret	Turret form		Horizontal 12 -station servo powered tool holder
	Center height of turret	mm	80
	Turret rotation repeat positioning accuracy	Sec.	±1.6
	Whether the cutter can be selected nearby		yes
	End face tool holder	mm	25×25
	Boring tool holder	mm	Φ40
	Reduction sleeve	mm	f32
Other	Distance from spindle center to bed bottom	mm	1015
	Machine net weight	kg	4200
	Total power supply capacity	kVA	35
	Overall dimensions (Length X width X height)	mm	2750×1890×1900
