SMTCL Next-Generation DTC600 Vertical Drilling and Tapping Center
Price:
Negotiable
MOQ:
1 Set
Delivery Time:
45-60 days
Brand:
SMTCL/SYMG
Product Description
Product advantages:
- High-rigidity, high-seismic-resistance design; large-span bed, herringbone-type columns, and thermally symmetrical spindle headstock.
- High dynamic response; newly upgraded drive system with a high-response servo system.
- High efficiency and high reliability; high-efficiency servo tool magazine with fully sealed internal protection and secondary cleaning of the tool holder.
Product Performance:
High rigidity:
- Bottom-stabilized herringbone columns
- Thermally Symmetrical Spindle Housing
- Six-point support for the bed frame, low center of gravity
High Dynamic Response:
- Spindle speed: 20,000 rpm
- Three-axis rapid traverse: 48/min
- High-efficiency servo tool magazine
High performance:
- Quantitative Process Standards
- Strict inspection standards

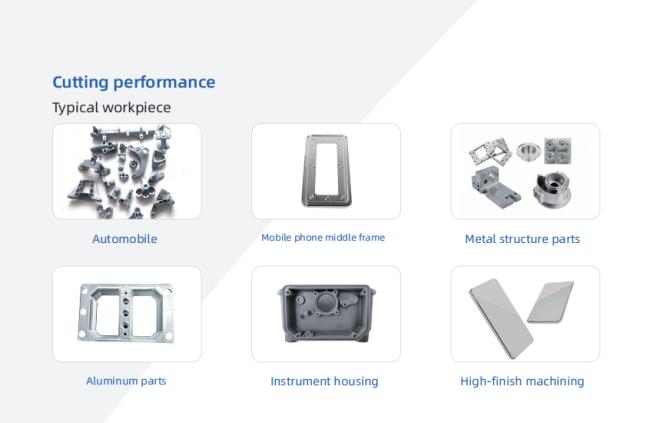

Key industries:
- Phone frame and structural components
- Automotive and aerospace aluminum
- 5G housing and heat sinks
Product Parameters:
| Project | Unit | DTC600 | |
| Workbench | |||
| Workbench dimensions | mm | 700*420 | |
| Maximum Permissible Load | kilogram | 250 | |
| T-slot dimensions | mm * pieces | 14 times 3 | |
| Processing Scope | |||
| Maximum travel of the worktable – X-axis | mm | 600 | |
| Maximum travel of the slide – Y-axis | mm | 400 | |
| Maximum spindle travel – Z-axis | mm | 330 | |
| Distance from the spindle face to the worktable surface | Maximum | mm | 480 |
| smallest | mm | 150 | |
| Spindle | |||
| Tapered hole (7:24) | BT30 | ||
| Maximum rotational speed | r/min | 20000 | |
| Rated Output Torque (S1/S2) | N.m | 11.8/17.5 | |
| Spindle motor power (S1/S2) | keyword | 3.7/5.5 | |
| Cutting tool | |||
| Knife handle model | MAS 403 BT30 | ||
| Feed | |||
| Move quickly | X-axis | m/min | 48 |
| Y-axis | m/min | 48 | |
| Z-axis | m/min | 48 | |
| Three-axis drive motor power (X/Y/Z) | keyword | 2.5/2.5/2.7 | |
| Three-axis drive motor torque (X/Y/Z) | N.m | ||
| Feed rate | mm/min | 0-20000 | |
| Tool magazine | |||
| Tool magazine configuration | Turret-type servo tool magazine | ||
| Knife Selection Method | Two-way nearest-tool selection | ||
| Tool magazine capacity | To put | 21 | |
| Maximum tool length | mm | 250 | |
| Maximum tool weight | kilogram | 3 | |
| Maximum cutterhead diameter | Full blade | mm | Φ65 |
| Adjacent empty knife | mm | Φ100 | |
| Tool change time | s | 1.6 | |
| Machine tool weight | kilogram | 3200 | |
| Total electrical capacity | KVA | 15 | |
| Machine tool outline dimensions (length * width * height) | mm | 1750*2370*2600 | |
| Inspection Items | Factory Standard | ||
| Processing accuracy | IT6 | ||
| Positioning accuracy | X-axis (mm) | 0.008 | |
| Y-axis (mm) | 0.008 | ||
| Z-axis (mm) | 0.008 | ||
| Repeatability | X-axis (mm) | 0.004 | |
| Y-axis (mm) | 0.004 | ||
| Z-axis (mm) | 0.004 | ||
