Normal gap bed lathe machine metal Processing Manual Lathe CA6240 metal turning machine
Product Introduction
CA6240 conventional lathe can undertake all kinds of turning work, in addition to turning inner and outer cylindrical surfaces, end faces and other rotating surfaces, turning various commonly used metric, inch, modulus, and diametral threads, as well as drilling and reaming. The precision of the processed parts and the better surface roughness can be obtained.
Main technical parameters
| Model | CA6136/6236 | CA6140/6240 | CA6150/6250 | |
| CAPACITY | Max.swing over bed | 360mm | 400mm | 500mm |
| Max.swing over cross slide | 190mm | 210mm | 300mm | |
| Max.swing over gap | 520mm | 560mm | 660mm | |
| Effective length of gap | 250mm | |||
| Center Distance | 750,1000,1500,2000mm | |||
| Bed Width | 360mm | |||
| HEADSTOCK | Spindle hole | 52mm | ||
| Spindle nose | ISO-C6 | |||
| Spindle taper | MT6 | |||
| Spindle speed(Number) | (9steps)40-1400rpm | |||
| Metric threads range | 18kinds 0.5-14mm | |||
| Inch threads range | 27kinds 2-40inch | |||
| Moudle threads range | 11 kinds 0.25-3.5mn | |||
| CARRIAGE | Max.travel of top slide | 95mm | ||
| Max.travel of cross slide | 180mm | 230mm | ||
| Max.size of toolshank | 20*20mm | |||
| TAILSTOCK | Dia.of tailstock sleeve | 65mm | ||
| Taper of tailstock sleeve | MT4 | |||
| Max.travel of tailstock | 140mm | |||
| MOTOR | Main drive motor | 4 or 5.5KW | ||
| Coolant pump motor | 125W | |||
| PACKING(L*W*H): | ||||
| Center Distance | 750mm | 225*115*165cm | ||
| 1000mm | 245*115*165cm | |||
| 1500mm | 288*115*165cm | |||
| 2000mm | 338*115*165cm | |||
| WEIGHT(N.W/G.W): | ||||
| Center Distance | 750mm | 1350/1750kg | 1400/1800kg | 1500/1900kg |
| 1000mm | 1450/1850kg | 1500/1900kg | 1600/2000kg | |
| 1500mm | 1600/2000kg | 1650/2050kg | 1750/2150kg | |
| 2000mm | 1750/2150kg | 1800/2200kg | ||

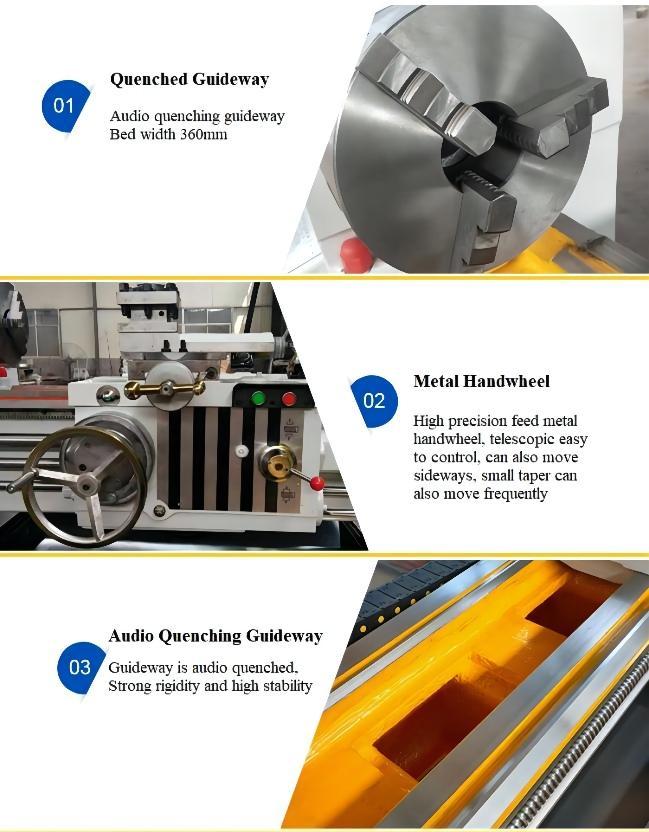

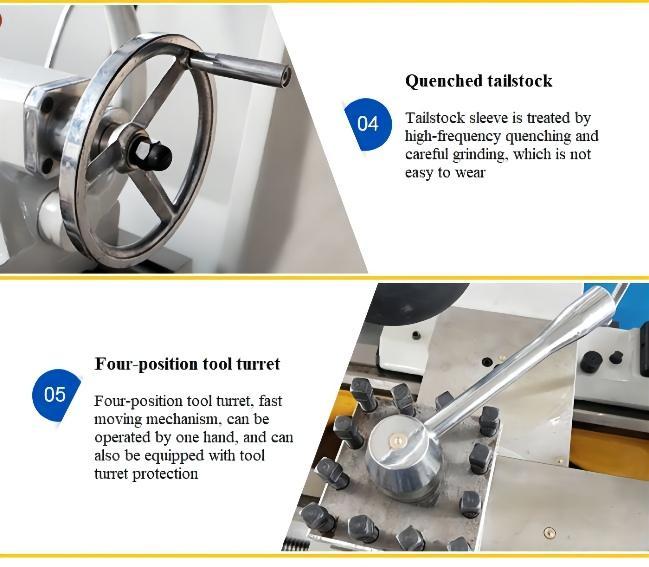

Product performance
