8 100M RJ45 PoE Ports + 2 1000M SFP Ports PoE Network Switch
10 Ports Industrial PoE Switch 8 100M RJ45 PoE Ports + 2 1000M SFP Ports
Overview

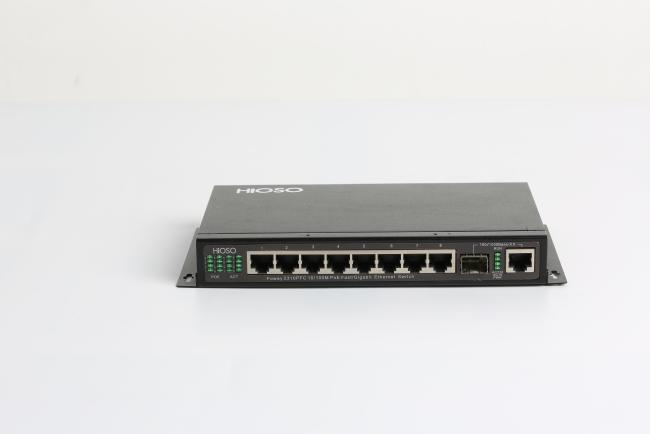

HiOSO Foway2310PFS series 10 ports 100M/1000M Security Industrial PoE Ethernet Switches, supply 8 10/100M RJ45 PoE ports and 2 1000M SFP cascaded/ring network uplink ports ; support auto discovery IEEE802.3af/at standard powered devices,auto stop powering the non standard poe devices;support to supply power to IP cameras,VoIP phones,wireless access points and other network devices;support to choose web or SNMP management; support to transmit HD video flow; apply to Security system, electronic power system and traffic system requirements.
Technical Specification
| Parameter | Specification |
| Standard | IEEE802.3 10Base-T Ethernet, IEEE802.3u 100Base-TX/FX Fast Ethernet,IEEE802.3z 1000Base-SX/LX Gigabit Ethernet,IEEE802.3x Flow control,IEEE802.1q VLAN,IEEE802.1p QoS, IEEE802.1d Spanning Tree,IEEE802.1w RSTP IEEE802.3af,IEEE802.3at |
| PoE |
8 10/100M RJ45 PoE/PSE, support IEEE802.3af 15.4W / IEEE802.3at 30W Working mode:auto detect powered device,stop powering if not PD device |
| Wavelength | 850nm/1310nm/1490nm/1550nm/ |
| Transmission distance | 1000M Fiber,multi-mode:220m(fiber size 62.5/125μm)/550m(fiber size 50/125μm); Single-mode:10/20/40/60/80/100/120Km;Single-fiber:10/20/40/60/80/100/120Km CAT5: 100M |
| Ports |
8 10/100M RJ45 ports (POE/PSE); 2 1000M SFP ports: 1 Gbps, 1000M SFP / 1000M Copper SFP |
| MAC | 8K |
| Buffer memory space | 1Mbit |
| Bit error rate | <1/1000000000 |
| MTBF | 100000 hours |
| Power |
DC48V dual input redundant backup (external power) AC110V/220V@50HZ/60HZ&DC48V dual input redundant backup (inside power) |
| Power consumption | Whole device:5.2W POE/PSE: maximum240W |
| Working temperature | Common:-10~60℃; -T (wide temperature range):-40~75℃ |
| Storage temperature | -40~80℃ |
| Humidity | 5%~90% non-condensing |
| Installation | Wall mounting type (external power), desk type/1U rack (inside power) |
| Dimension |
30mm (H)×219mm(W)×119mm (D) (external power) 44mm (H)×276mm(W)×190mm (D) (inside power) |
