20km Transmission 4 Port FTTH OLT Fttx Solutions Supply Huawei Zte ONU
Price:
Negotiable
MOQ:
1
Delivery Time:
3-10 work days
Brand:
Hioso
Product Description
Epon Olt 1U Rack 4 Port Ftth Olt Supply Huawei Zte Onu Dual Power Supply
Feature
(1) Supply 4 SFP PON ports, 2 1000M SFP uplink ports, 2 Combo uplink ports
(2) Each PON port support 1:64 split ratio, total 1256 ONUs access
(3) Distance can reach 20km under 1:32 split ratio
(4) Support WEB and SNMP, integrate switching function

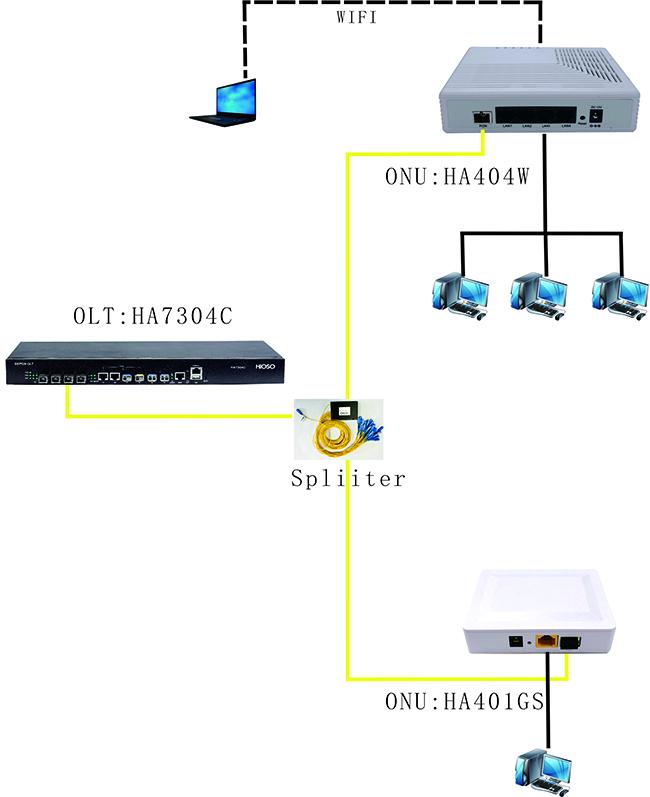

Application
Apply for town,village fiber network and surveillance, apply for FTTX network,
to transmit IP phone, data,IPTV and other IP services access.
Technical Specification
|
Parameter
|
Specification
|
|
Operating wavelength
|
1310(RX) /1490(TX)
|
|
Optical power
|
+2.5 ~ +7dBm
|
|
Receiving sensitivity
|
-30dBm
|
|
Max distance
|
20km
|
|
Max splitter ratio
|
1:64
|
|
Capacity
|
4 PON, maximum 256pcs ONU
|
|
MAC
|
8k
|
|
Uplink port
|
2 SFP ports + 2Combo ports
|
|
PON port
|
4 SFP 1000M fiber ports
|
|
Control port
|
1 10/100/1000M RJ45 port
1 Console(RJ45), to debug the device 1 USB port |
|
MTBF
|
100,000 hours
|
|
|
Support IEEE802.3ah
|
|
Support DBA with minimum1Kbps granularity adjustable
|
|
|
Support 1Gbps up link and down link symmetrical bandwidth
|
|
|
Support AES-128 encryption to each Logical Link Identifier
|
|
|
Support powerful OAM function, implement telnet management, maintenance and upgrade
|
|
|
Support auto discovery and auto register of ONU (real-time operation)
|
|
|
Protocols supported
|
Support IEEE802.3,IEEE802.3u,IEEE802.3ab,IEEE802.3z
|
|
Support IEEE802.1Q VLAN,IEEE802.1d Spanning Tree
|
|
|
Support IEEE 802.1P QoS,IEEE802.3X Flow Control
|
|
|
Support IEEE802.3ad Trunk,IEEE802.1W RSTP
|
|
|
|
Support GUI management based on SNMP
|
|
Support WEB and Telnet GUI management based on CLI
|
|
|
Other functions
|
Support 1GMPv1/v2 protocol report, query and leave message mouse
|
|
Support DHCP Snooping
|
|
|
Support Ipv4 address learning based at DHCP Snooping
|
|
|
Support ARP Snooping, QoS etc
|
Working Environment
|
Parameter
|
Specification
|
|||
|
Power
|
AC100~240V 50/60HZ,DC12V/5A redundant three power supply
|
|||
|
Power Consumption
|
25W
|
|||
|
Operating temperature
|
-10—55 C
|
|||
|
Storage temperature
|
-40—70 C
|
|||
|
Humidity
|
5%--90% non-condensing
|
|||
|
Dimension
|
440mm(length) * 210mm(width) * 44mm(height)
|
|||
