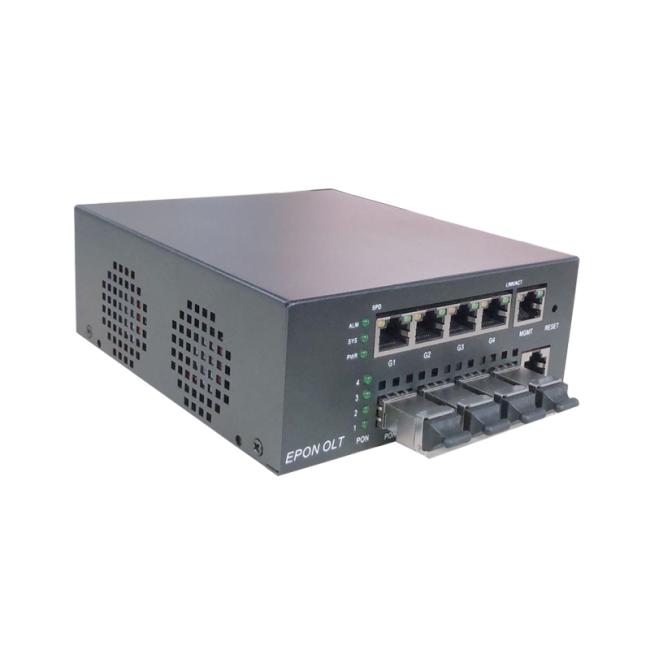

MINI 4 HiOSO EPON OLT Black Metal DC12V 5A 1000M Uplink OLT For FTTH Solutions
Price:
Negotiable
MOQ:
1
Delivery Time:
2-12 work days
Brand:
Hioso
Product Description
Overview

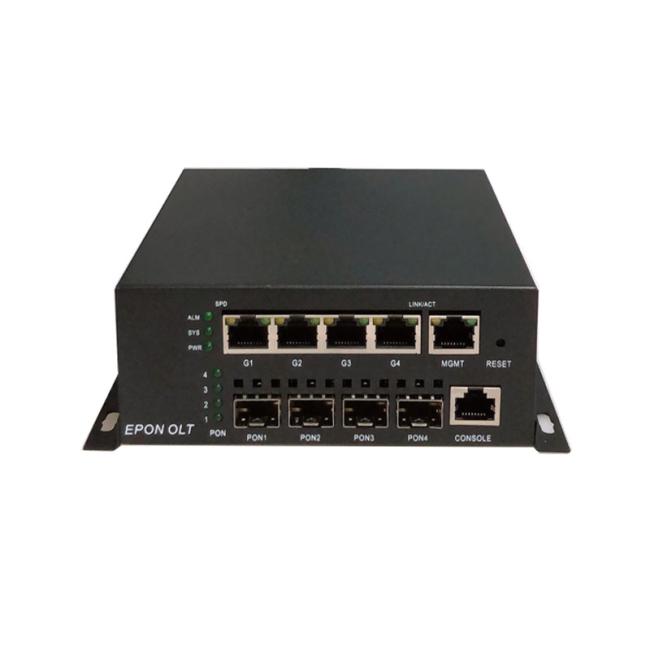

Mini standalone type 4PON OLT,
supplies 4 SFP PON ports,4 Gigabit RJ45 uplink ports . The whole system supports 4-PON, 256 ONUs. It supports 10～20km transmission distance at the base of high bandwidth, and supports full line speed L2/L3 transition capacity.
It adapts to counties, towns and villages fiber network access. It is also adapt to FTTH/FTTB/FTTO projects, to implement fiber to the home, such as IP phone, Ethernet data and IPTV services access.
Feature
- Supply 4 SFP PON ports, 4 1000M uplink ports
- one 10/100M RJ45 management port, one console port
- Each PON port support 1:64 split ratio, total 256 ONUs
- Distance can reach 20km under 1:32 split ratio, 10km under 1:64
- Support to work with HA400/HA7200 series ONUs to establish passive network
- Apply for town,village fiber network and surveillance, apply for FTTX network, to transmit IP phone, data,IPTV and other IP services access
Application
1000M point to multi-point optic passive network
Technical Specification
| Parameter | Specifications |
| Operating wavelength | 1310(RX) /1490(TX) |
| Optical power | +0 ~ +7dBm |
| Receiving sensitivity | -27dBm |
| Max distance | 20km |
| Max splitter ratio | 1:64 |
| Capacity | 4 PON,Maximum: 256 ONUs |
| MAC | 16K |
| Uplink port | 4 1000M RJ45 |
| PON port | 4 SFP PON ports |
| Control port | 1RJ45, RS232, to debug the device |
| 1FE port | |
| MTBF | 100,000 hours |
| EPON traits | Support IEEE802.3ah |
| Support DBA with minimum1Kbps granularity adjustable | |
| Support 1Gbps up link and down link symmetrical bandwidth | |
| Support AES-128 encryption to each Logical Link Identifier | |
| Support powerful OAM function, implement telnet management,maintenance and upgrade | |
| Support auto discovery and auto register of ONU (real-time operation) | |
| Protocols supported | Support IEEE802.3, IEEE802.3u, IEEE802.3ab |
| Support IEEE802.1Q VLAN | |
| Support IEEE 802.1P QoS | |
| Support WEB management, support SNMP, CLI |
Working Environment
| Parameter | Specification |
| Power supply | DC12V 5A |
| Power consumption | 20W |
| Operating temperature | -10—55 C |
| Storage temperature | -40—70 C |
| Humidity | 5%--90% non-condensing |
| Dimension | 55mm(height) ×135mm(width) ×152mm(length) |
