KLUK Swing Doors:

KLUK Doors' Aluminum Thermally Controlled swing door is offered as a complete system with the following:

Perfect for hot & cold climates to keep the ideal temperature in
Clean and narrow 2 15/16" stile & rail profile doors
Thicker 2 1/4" panels suitable for high wind environment
Panel design offers split finish options for the exterior and interior for versatility of colors and aesthetic
Thermal struts that creates a non-conductive bridge between the outside and the inside of the door
Wider and taller than typical swing doors

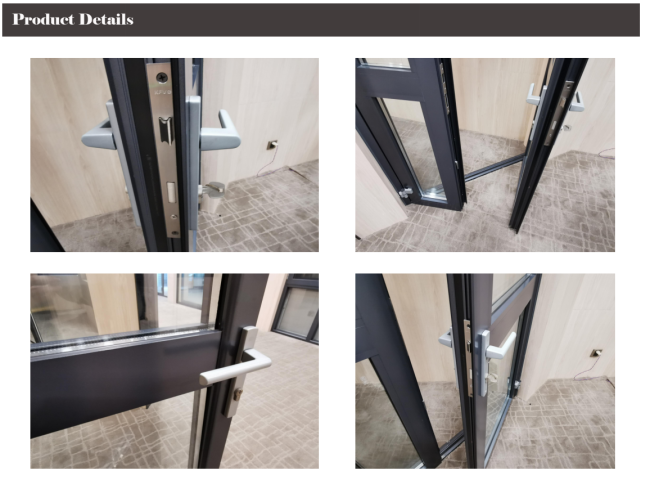

Concealed multi-point locking system for ease of operation and security
Inswing and Outswing configurations
Flush threshold options
Commercial options including panic hardware
Clear & bronze anodized, and white in-stock finishes or create a distinctive color
Hardware finishes available in stainless or bronze

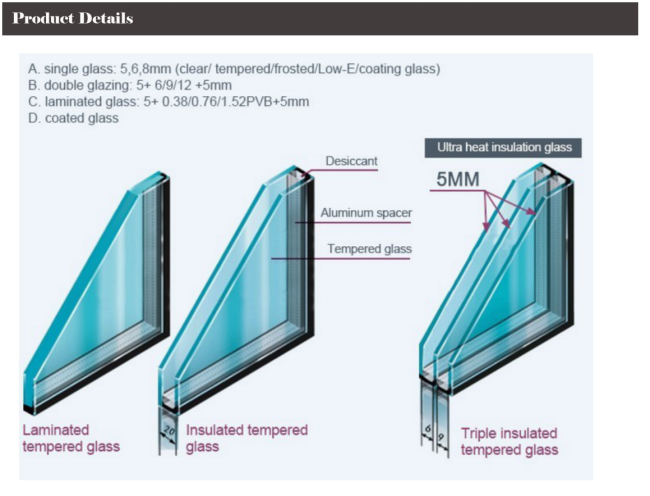

Wide range of glazing options for improved thermal performance
Unique narrow door profiles to match our folding and multi slide doors

Door leaf positioning and installation method:

First, adjust the positioning pin on the door frame crossbeam with its own adjusting screw to draw out the crossbeam plane 1-2mm. Then, firm the glass door leaf, align the hole position of the rotary pin connector in the lower cross bar of the door leaf with the rotary pin shaft of the ground spring, and rotate the door leaf to sleeve the hole position into the pin shaft. Then take the pin shaft as the axis, turn the door leaf 90 degrees (pay attention to straighten the door leaf when turning), so that the door leaf and the cross beam of the door frame are at right angles. At this time, the hole of the rotary connector in the crossbeam of the door leaf can be aligned with the locating pin on the crossbeam of the door frame, and the locating pin can be pulled out and inserted into the hole of the rotary connector of the crossbeam of the door leaf for about 15mm.Aluminum Spring Doors.

 Products Sketches:
