Two Track Aluminum Sliding Doors For Balcony Wood Grain 1.5mm Thickness Fireproofing

Price Negotiable
Price: Negotiation
MOQ: 300 Square Meters
Delivery Time: 25-30 days
Brand: KLUK
Product Description

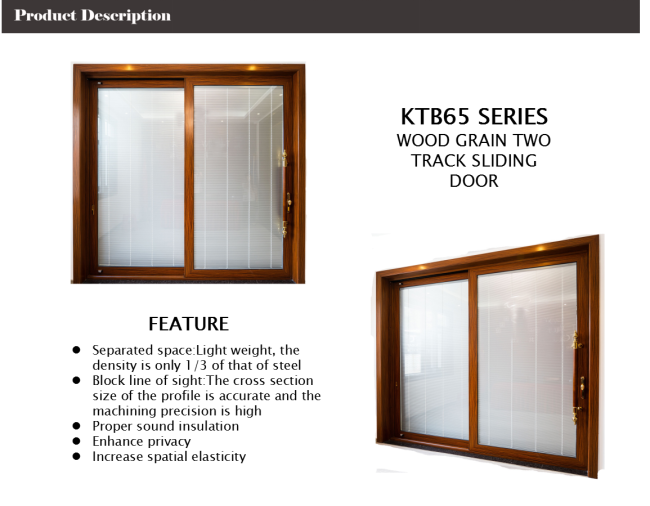

KTB65 Series Two Track Aluminium Sliding Doors For Balcony Wood Grain 1.5mm Thickness





Wood Grain Surface Technology:



Wood transfer formula often choose high and low hydroxyl value of two kinds of polyester. If the difference between the two hydroxyl values is too small and the gelation time is not too different, the separation of the film and the transfer paper is not easy. Through a large number of experiments, we set the hydroxyl value of 75 mgKOH / g of the hydroxyl polyester resin as the reference point, > 75 mgKOH / G as the high hydroxyl value, and < 75 mgKOH / g as the low hydroxyl value. We use the polyester resin with these two hydroxyl values to obtain the film which is easy to separate from the transfer paper.Aluminum Folding Doors



Water mark transfer printing is to transfer the pattern to the plate through the material, which is a bit similar to our old printing, and the process effect is not as good as water drape transfer printing.Aluminum Folding Doors


Water drape transfer printing can not only process wood grain, but also stone grain and leather grain. At the same time, because of the technology, there will be no empty position of water mark transfer printing, and the whole transfer printing will not let the plate and printing film contact, which ensures the transfer printing effect to a greater extent.



Sliding Doors:



Whether it is a square meter bathroom or an irregular storage room, as long as the sliding door is replaced, the narrow space will not be wasted. The folding sliding door can even be 100% opened, accounting for no space. From the perspective of use, the sliding door undoubtedly greatly facilitates the space division and utilization of the living room, and its reasonable push-pull design meets the compact order and rhythm of modern life. In terms of taste, the push-pull glass door will make the room look lighter, in which the segmentation, masking and so on are so simple but still change. Today, when we advocate getting close to nature, we can install a smooth, quiet, transparent and bright sliding door on the balcony to enjoy the sunshine and scenery.
According to different ways of use, sliding doors can be divided into electric sliding doors, manual sliding doors, automatic sliding doors, etc.
According to different application occasions, sliding doors can be divided into factory sliding doors, industrial sliding doors, workshop sliding doors, prison sliding doors, wall cabinet sliding doors, etc.
According to different materials, sliding doors can be divided into metal sliding doors, glass sliding doors, color steel sliding doors, aluminum alloy doors, solid wood sliding doors, etc.







Performance Parameter

National Standard

Wind Load Resistance 4.5<=p3>=5.0 level 8
Air Tightness 2.5<=q1<=2.0 level 6
Water Tightness 350<=△p>=700 level 5
Thermal Insulation 3.0>k>=2.5 level 4
Sound Insulation 35=<Rw+Ctr<40 level 5







Name/Model: Two Track Aluminium Sliding Doors For Balcony Wood Grain 1.5mm Thickness
Profiles: 6063-T5 high quality aluminium extrusion profiles
Glass Choice: Low-e; relective;Frosted; tinted; clear tempered glazing
Glass Choice: 5mm; 6mm,12mm single tempered glazing
5+12A+5mm; 5+27A+5mm; 6+12A+6mm double glass
5+6A+5+6A+5mm triple glass
5+0.76+5mm;6+2.28+6mm Laminated
other glass type you need,Aluminum Folding Doors
Color: matt black;white;ultra silver;clear anodized;nature clean aluminium
Any color available
Customized (matt black;white;ultra silver;clear anodized;nature clean aluminium)
white or other color

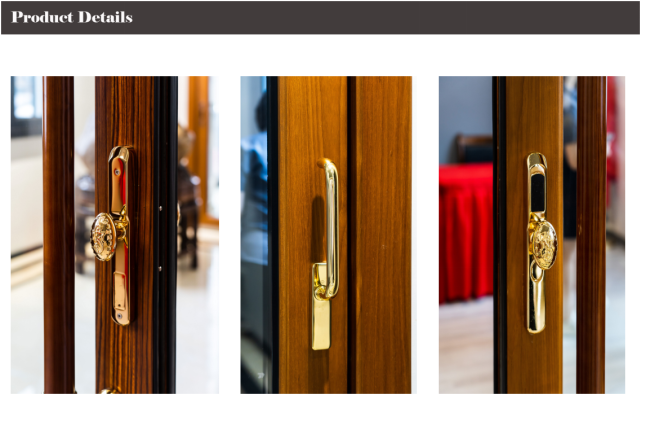

Hardware :


China Top brand: MACO


Frame Surface Finish: Powder coated meet AS 3715; Electrophoresis; flucarbon; Anodizing;
Flyscreen: Stainless steel security mesh; Aluminium security mesh; Fiberglass flys
Guarantee : Years,
Security: Crimsafe mesh ; Grille available
Application: Building(office/hotel/apartment)
