PLC Control PSA purified Coal Hydrogen Production Unit 18000Nm3/H

PLC Control PSA purified Coal Hydrogen Production Unit 18000Nm3/H

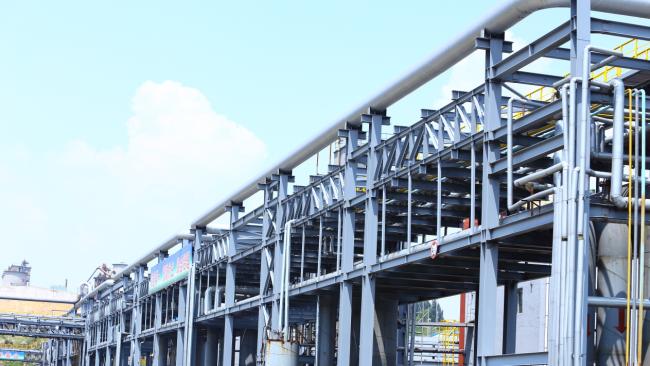

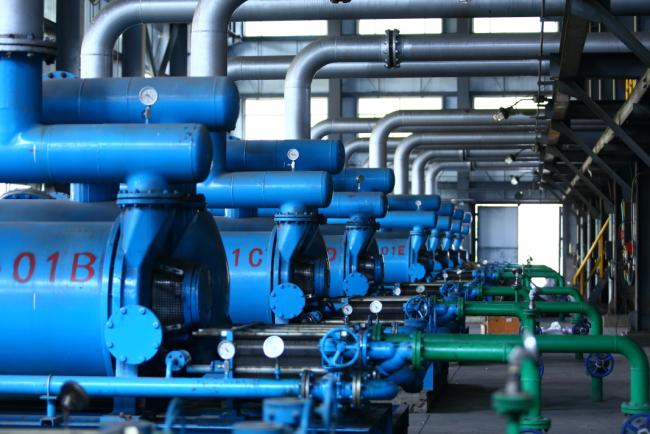

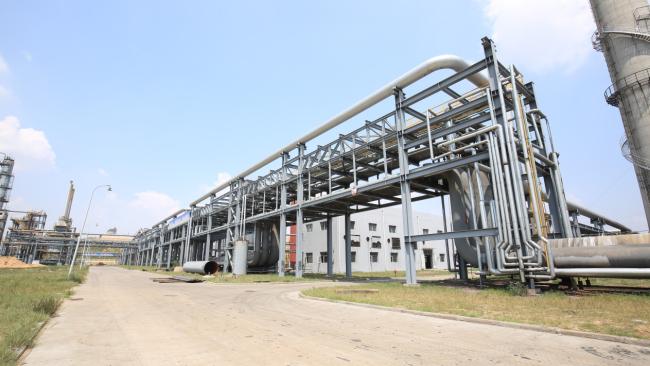

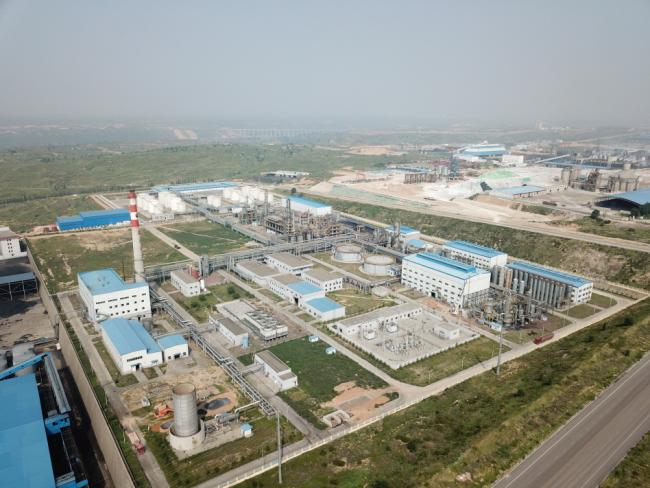

Hydrogen production from raw gas of Shenmu Xinyi chemical

Technology Application:

Techairs is a domestic company with the most outstanding performance in intermittent production of hydrogen from coal (with wide source of raw material, such as powdered coal, lump coal, anthracite, lignite, industrial coke oven gas and crude gas etc.), and the technology has reached the world advanced level. The coal to gas PSA is successfully adopted for the hydrogen production as well as the crude gas PSA and the coke oven gas purified PSA.

Features:

1. Full set of equipment with PLC automatic control, easy to operate.

2. The temperature, pressure and flow were monitored in the device to ensure the safe and stable operation of the device;

3. PSA desorption gas enter into the recovery system of combustion, recycling of heat, reducing energy consumption.

4. High thermal efficiency, the normal operation of the steam production for self-sufficiency, no additional steam source;

5. gasification water closed loop recycling, to achieve zero emissions.

Specifications:

Scale: 2000 ~ 100000Nm3 / h

Pressure: 1.0 ~ 3.0MPa (special requirements can be customized)

Hydrogen Purity: 99% in the range of 99.999%

Turndown: 30% to 110%

Features and advantages

Mature process technology and safe and reliable operation.

Wide source of raw material and large processing scale.

Four stages of full low conversion process with the CO conversion rate >95%.

Advanced recovery technology of thermal energy and low consumption of production energy.

The "three wastes" boiler is adopted, being environmentally friendly.

Reference
