Automatic SMR Hydrogen Generation System Steam Methane Reforming Technology

Automatic SMR Hydrogen Generation System Steam Methane Reforming Technology

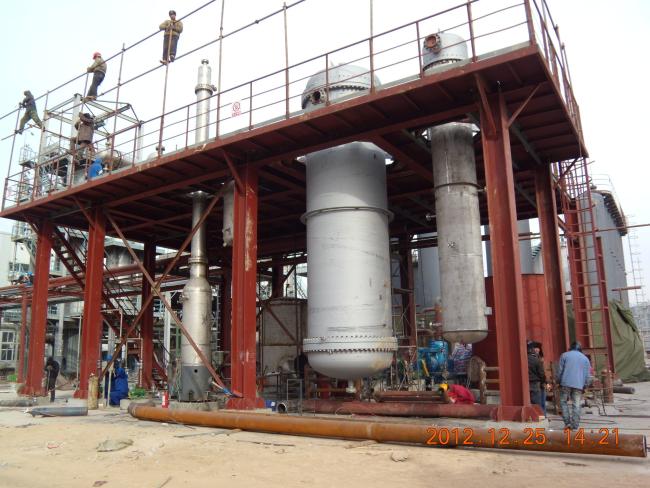

Expanding Production From 3000Nm3/H To 4500Nm3/H SMR Hydrogen Plant

Technology Application:

The conversion workshop section has optimized the conversion efficiency and material consumption with the raw material of natural gas and other light hydrocarbon. The Two-high THiPSATM technology is adopted for the PSA workshop section to guarantee the high yield and purity of the hydrogen, the technology has reached the world advanced level.

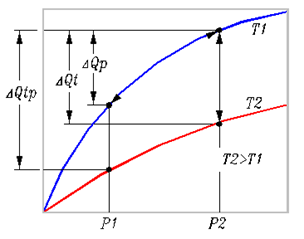

Diagram of the adsorption capacity with respect to pressure and temperature

As can be seen from the Langmuir isothermal adsorption diagram, at a certain temperature, the de-sorption is completed by reducing the pressure. Common desorption methods are atmospheric desorption and vacuum desorption, whose purpose is to reduce the partial pressure of adsorbate.

The conversion gas composition is relatively complex, so the adsorption tower loading of different adsorbents, these adsorbents are solid particles with large specific surface area, mainly include: activated alumina, activated carbon, silica gel and molecular sieve, in order to achieve their common role in the separation of the desired product components objective.

Technical indexes:

Purity: ≥99.99%

Capacity: From 3000Nm3/H To 4500Nm3/H

Features and advantages of smr hydrogen plant

Mature process technology and safe and reliable operation.

Short cycle of project construction and investment recovery rate to achieve strong market competitive.

Multistage margin recovery and the PSA desorption gas burn-back enabling energy saving and environmentally friendly.

Special adsorbent, low operating cost, high purity and high yield.

Special programmable control valve with high level of automatic.

Process Schematic
