Heze,Shandong 3000Nm3/h Hydrogen Generation Plant

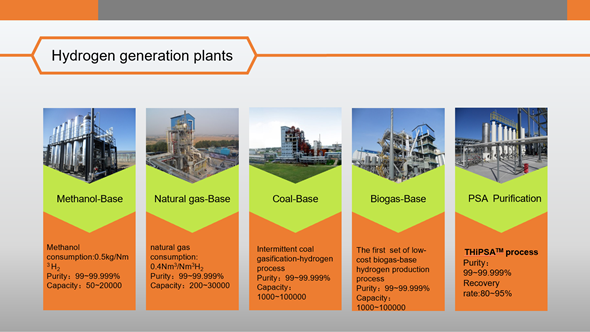

hydrogen generation plants

TECHAIRS hydrogen generation plants are using fossil materials and industrial hydrogen rich gas to purify hydrogen. For example, hydrogen production from methanol, natural gas, coal, biogas, syngas and hydrogen rich gas,. These systems are designed and manufactured with economic, user-friendly functions, and minimal maintenance requirements. The hydrogen generation plants sport H2 capacities that range from 50 Nm³/h to 30,000 Nm³/h, H2 purity percentage values that estimate from 99 to 99.999%, meet the high purity hydrogen standard and proton membrane fuel cell hydrogen standard (ISO14687-2:2012, SAEJ2719:2015, GB/T37244 — 2018), and operating pressure levels of 0.8 MPa to 3.0 MPa.

Key figures

Hydrogen pressure: 1.0~3.0Mpa

Hydrogen purity: 99~99.999%

Scale: 50~100000Nm3/h

H2 recovery rate: 80 to 95%

Turndown: 30 to 110%

key device feature

The device uses modular standard design. It’s installed by professional assembly staffs in the manufacturing base. The device consists of multiple skids and Party A can assemble without welding in the field and purify the peripheral equipment. This form ensures the quality and safety of the device with low consumption, easy maintenance and reliable operation, saving investment in the device and shortening the construction period.

High safety and reliability

Advanced and mature technology is strong guarantee of safety, while the device has a sound alarm system to prevent system failure, so that it can be timely treated in the early period. The system is equipped with two sets of safety protection systems of the “overpressure linkage automatic unloading” system and linkage shut-down system. In the event of power failure or failure in the instrument system, two sets of relief valves of the system trip for protection, so that safe operation of the device has been reliably guaranteed.

Standard assembly line manufacturing in the factory

Hydrogen production machine uses modular standard design, factory production and assembly; procedural supervision and control; inspection and commissioning in the factory, and delivered after qualified; assembly of Party A without welding on site and supply of hydrogen production peripheral equipment. This form ensures the quality and safety of the device, saves investment in the device and shortens construction period, facilitating transportation and moving.

Techairs^TM special program control valves

Special program control valves independently researched and developed and produced by Techairs uses the world’s advanced low-flow resistance valve body, with the streamlined runner and anti-erosion and anti-fatigue technology, switch of the valve is fast with good sealing performance, and no leakage of the switch reaches more than 1 million times, and it has the capacity to bear two-way pressure and resist high-speed airflow.

Intelligent control system

Automatic handling of various safety failures to eliminate man-made hidden safety risks. The intelligent and optimized operation scheme of the machine ensures the quality of full cycle operation to fundamentally solve energy consumption losses caused by manual operation. Save not less than 10% of production costs for customers in the operating cycle of 10 to 15 years.
