Qingdao Sanli Benno 50Nm³/H Hydrogen Production From Methanol

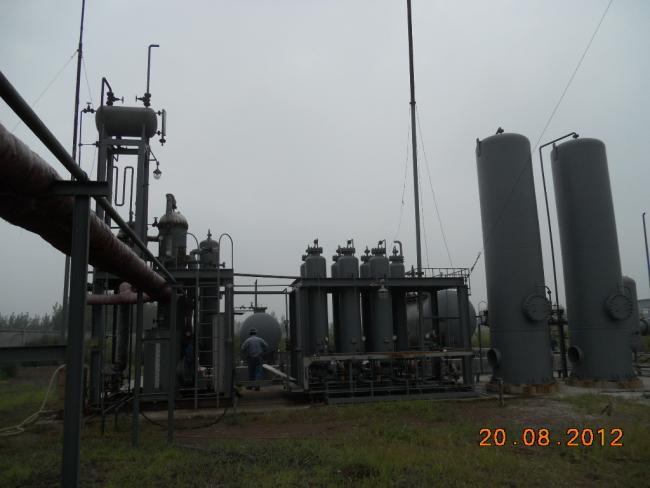

Technology Application:
Methanol and deionized water are mixed evenly. After vaporization and overheating, under certain conditions of temperature, pressure and catalyst, mixed raw material for reforming reaction to produce reforming gas containing H2, CO and CO2. After pressure swing adsorption(PSA) separation and purification, high purity hydrogen product is prepared.
General equipment and material
| S/N | Item No. | Equipment Name | Unit | Qty. | Material |
| 1 | F0101 | Reformer | Set | 1 | 15CrMoR |
| 2 | E0101 | Superheater | Set | 1 | 0Cr18Ni10Ti/321 |
| 3 | V0101 | Desalt water tank | Set | 1 | 304 |
| 4 | V0102 | Methanol tank | Set | 1 | Q235 |
| 5 | T0101 | Washer/Separator | Set | 1 | 304 |
| 6 | E0102 | Heat exchanger | Set | 1 | SS316 |
| 7 | E0103 | Condenser | Set | 1 | SS316 |
| 8 | P0101A/B | Circulating liquid metering pump | Set | 2 | |
| 9 | P0102A/B | Desalted water pump | Set | 2 | |
| 10 | T0201A~H | Absorption towers A~H | Set | 6 | Q345R |
| 11 | V0202 | Buffer tank of crude hydrogen | Set | 1 | Q345R |
| 12 | V0203 | Buffer tank of product gas | Set | 1 | Q345R |
| 13 | V0204 | Tank of negative direction discharge | Set | 1 | Q345R |
| 14 | V0205 | Tank of positive direction discharge | Set | 1 | Q345R |
| 15 | V0206 | Buffer tank of desorbed gas | Set | 1 | Q345R |
Our high performance PSA plants deliver a host of benefits, including:
-The perfect balance between plant performance and investment costs.
-Outstanding quality and reliability thanks to rigorous selection, testing and approval of plant components.
-Virtually 100% on-stream performance and availability due to special features such as reduced number of adsorbers, adsorber group isolation and redundant control systems.
-Tailor-made solutions for individual feed gas conditions and hydrogen demands.
-Reduced costs and faster on-site set-up and commissioning times due to modular design and prefabricated equipment.
-Easy maintenance
Technical indexes:
purity: 99%~99.999%
Capacity: 25~100000Nm3/h
Yield :≥90%
Features and advantages:
The methanol has a high conversion rate (≥95%) and low consumption. The Two-high THiPSATM technology is applied.
The raw material of start-up methanol is closed-loop recycled, being energy saving and environmentally friendly.
Special adsorbent/catalyst has a long service life and low operating cost.
Special programmable control valve is of high automatic degree.
