Miniature Scale Steam Methane Reforming Hydrogen Production Purity 99.999%

Miniature Scale Steam Methane Reforming Hydrogen Production Purity 99.999%

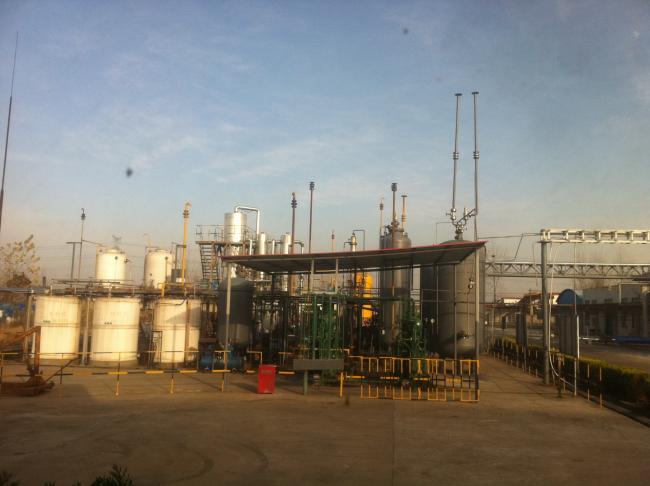

Rugao City Shuangma 300Nm³/H Hydrogen Production From Methanol

Technology Application:

Methanol and deionized water are mixed evenly. After vaporization and overheating, under certain conditions of temperature, pressure and catalyst, mixed raw material for reforming reaction to produce reforming gas containing H2, CO and CO2. After pressure swing adsorption(PSA) separation and purification, high purity hydrogen product is prepared.

Advantages

Variable degrees of customization versus standardization to meet project requirements

Focus on best in class plant availability and reliability benefiting from Air Liquide’s operational experience

Dedicated standard plant program for small hydrogen capacities with high degree of modularization allowing for execution time of less than 15 months Free On Board (FOB)

Key figures

Capacity: 10 000 to 200 000 normal cubic meters per hour (Nm³/h) Hydrogen (10 000 to 40 000 Nm³/h for small-scale standard plants)

Feed+fuel-steam: 12.3 to 13.2 Mega Joules per normal cubic meter (MJ/Nm³)

Steam production: 0.4 to 1.2 kilograms per normal cubic meters (kg/Nm³) Hydrogen

Technical indexes:

purity: 99%~99.999%

Capacity: 25~100000Nm3/h

Yield :≥90%

Features and advantages:

The methanol has a high conversion rate (≥95%) and low consumption. The Two-high THiPSA^TM technology is applied.

The raw material of start-up methanol is closed-loop recycled, being energy saving and environmentally friendly.

Special adsorbent/catalyst has a long service life and low operating cost.

Special programmable control valve is of high automatic degree.

Reference
