Mature Process Hydrogen Generation Plant 200Nm3/H Small Scale

Mature Process Hydrogen Generation Plant 200Nm3/H Small Scale

Longquan 200Nm3/h Hydrogen Generation Plant,Hydrogen Production From Methanol

Technology Application

Techairs is professional engaged in gas preparation, separation and purification technology research and development and engineering transformation. It is widely used in petrochemical industry, coal chemical industry, fine chemical industry, gas industry, ethanol industry, photovoltaic semiconductor industry and PTA industry.Unique THiPSATM technology and FrTPSA technology can achieve high purity, high yield, low material consumption and low energy consumption; Separation of multicomponent gas and low separation coefficient gas.

Physical adsorption has two characteristics: one is the different adsorption capacity of different components, the two is the adsorption capacity of adsorbate on the adsorbent increases with partial pressure and decrease with increasing adsorption temperature. The first property of the adsorbent, may realize the preferential adsorption of impurity components containing in hydrogen syn-gas for hydrogen purification purposes; For the second property, can achieve adsorbing at high pressure and low temperature, desorbing in low pressure and high temperature. This cycle of adsorption and regeneration achieve the purpose of continuous hydrogen purification, which as shown in the Tu Lange Muir curve:

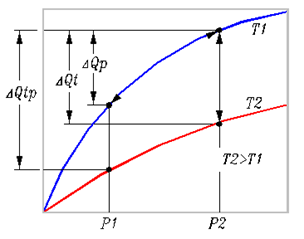

Diagram of the adsorption capacity with respect to pressure and temperature

Technical indexes

Capacity:200Nm3/h

Purity:99% ~ 99.9999%
