Thermal Dryer Pipe Drying System For Plastic Recycling Lines

Description:

Our Thermal Dryer / Pipe drying system is a excellent way of removing further moisture content after the dewatering (Dehydration)process in a recycling plant. The thermal dryer with a cyclone is essential final step in reducing moisture level down to 3~8%.

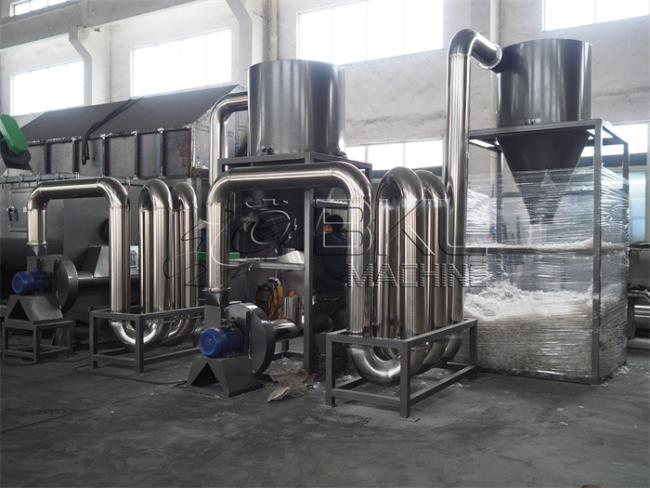

After dewatering process ,Most percent waters will be removed from the recycled material. The exit material will be sucked by the Fan to go through the long pipes, Meanwhile, the heating device supply the hot air to the long pipes which could reduce the balance moisture in the materials during the transport to the storage silo.

The main parts has the electrical heating device, Stainless steel pipes,Fan, Storage silo.

Depending on te capacity of your plastic washing line,It could equip with one step thermal dryer or even two/three sets in a row to ensure the lowest moisture levels finally.

Specifications:

Blower motor power:5.5kw~15kw

Pipe diameter:φ133mm, φ159mm,φ219mm

Pipe material: Stainless steel

Heating Power:36~60KW

More photos:
