1m Ftth G657A1 Fiber Optic FBT Coupler 1550nm Wavelength
MOQ:
1 PCS
Delivery Time:
3-8 work days
Brand:
SUNET/OEM
Product Description

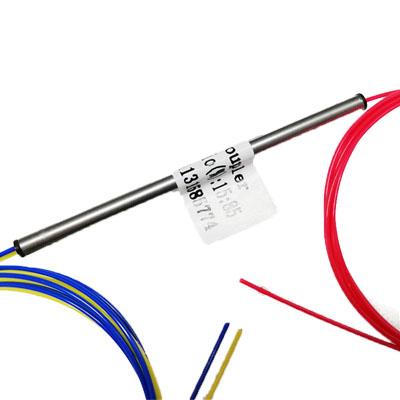

1*2 Ftth Fiber Optic Fbt Coupler
Fbt Coupler Description
1.Fiber Optic FBT splitter is a type of optical power management device that is fabricated using Fused Biconical Tape technology.
2. It features small size, high reliability, cheap cost and good channel-to-channel uniformity, and is widely used in PON networks to realize optical signal power splitting.
3.Sunet provides whole series of 1xN and 2xN splitter products that are tailored for specific applications. All products meet GR-1209-CORE and GR-1221-CORE Sunet offers both tree and star type inline couplers/splitters. They provide a reliable solution to split/combine signals. The splitting ratio ranges from 1x2 to 1x32 ports for tree couplers, and from 2x2 up to 2x32 for star couplers. Available in single, dual, and tripple wavelength windows(1310/1490/1550nm).
Fbt Coupler Features
Low Excess loss
Low PDL
Environmentally stable
Good Thermal Stability
Fbt Coupler Technical specifications
| Parameter | Specification | |
| Channel Number | 1×2 or 2×2 | |
| Operating Wavelength (nm) | 1310,1550,1310/1550,1310/1550/1490 | |
| Operating Bandwidth (nm) | ±40 | |
| Coupling Ratio | Coupling Ratio Insertion Loss(dB) | |
| P Grade | A Grade | |
| 50/50 | ≤3.3 | ≤3.5 |
| 40/60 | ≤4.5/2.6 | ≤4.7/2.8 |
| 30/70 | ≤5.7/1.9 | ≤5.9/2.1 |
| 20/80 | ≤7.6/1.3 | ≤7.75/1.38 |
| 10/90 | ≤10.85/0.68 | ≤11.2/0.75 |
| 5/95 | ≤14.4/0.45 | ≤15.5 /0.48 |
| 2/98 | ≤18.5/0.6 | ≤19.8/0.38 |
| 1/99 | ≤21.8/0.28 | ≤22.8/0.35 |
| PDL (dB) | ≤0.15 | ≤0.2 |
| Directivity(dB) | ≥50 | |
| Return Loss(dB) | ≥55 | |
