ISTA Test Furniture Packaging Zero Drop Testing Machine Box Drop Test Machine for Lading and Transporting and Handling
Zero Drop Testing Machine

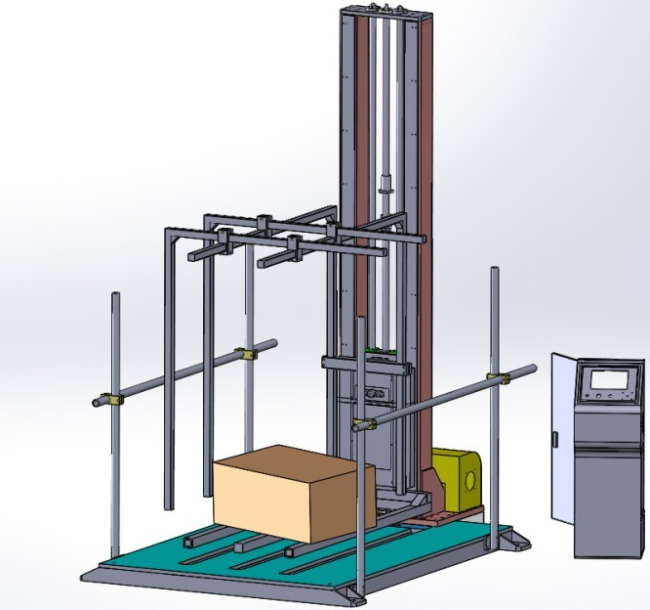

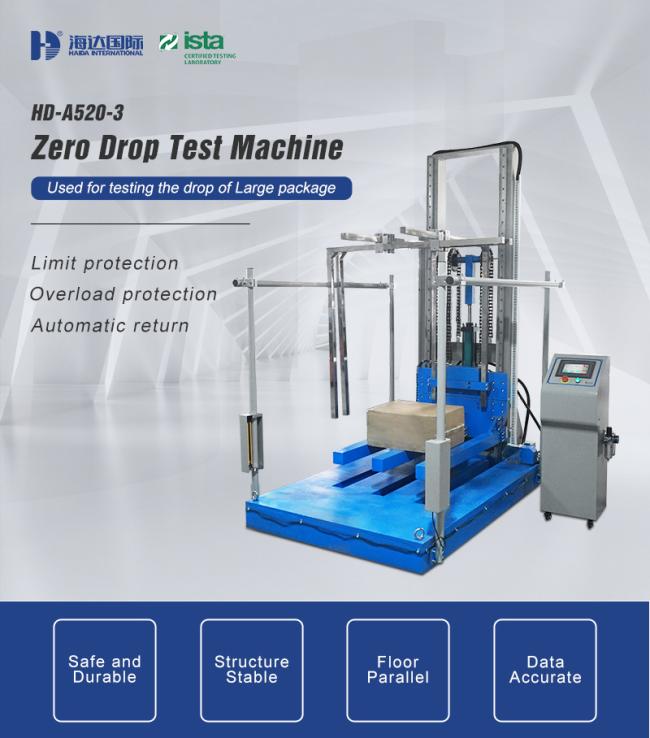

HD-A520-3 Zero Box Drop Test Machine is mainly used to evaluate the impact of the package during the actual transportation, loading and unloading process, and to evaluate the impact resistance of the package during the handling process and the rationality of the packaging design. Test Standard: GBT4857.5-92 Packaging and Transportation Package Drop Test Method.
Features
1. It is mainly used for the drop test of larger packages;
2. The data is highly precise, using Wanling hydraulic cylinders and Shenchi cylinders with high efficiency;
3. Easy to operate, using Mino displacement sensor with high accuracy;
4. Intelligent design such as limit protection, overload protection, and automatic return to ensure safe operation;
5. In the process of releasing the sample to fall, the sample can not touch any part of the device to ensure that it falls freely.
|
Sample max. load |
500KG (can be customized) |
|
Max.sample size for face |
1200*1200*1200mm (L*W*H)(can be customized) |
|
Max.sample size for Edge&Corner |
800*800*800mm (L*W*H)(can be customized) |
|
Drop test |
Corners, edges , faces of sample |
|
Drop height |
0 -1000mm (Adjustable) |
|
Outside dimension |
2300*1490*1950mm (L*W*H) |
|
Test speed |
2m/min |
|
Panel material |
45# steel, solid steel plate |
|
Arm material |
45# steel |
|
Height display |
Digital |
|
Operate mode |
PLC |
|
Driving mode |
Taiwan Linear slider and copper guide |
|
Drop method |
Electromagnetic and pneumatic comprehensive support |
|
Power |
Three- Phase, AC380V, 50/60Hz,1.6KW |
|
Air source |
≥0.6MPa (User-supplied) |
| Oil source | 40L (User-supplied) |
