It is suitable for compression test, deformation test and stacking test of the corrugated cartons, honeycomb boxes an etc packages.Also, it will be usage for the compression test of containers (such as plastic drums for edible oil, mineral water), paper canisters,paper boxes, paper cans, container drums and etc.
ISTA Carton Paper Box Compression Tester High Precision Box Carton Package Compressive Strength Testing Machine Equipment
Price:
$6,973.04-9,762.26
MOQ:
1
Delivery Time:
Negotiable
Brand:
Haida
Product Description

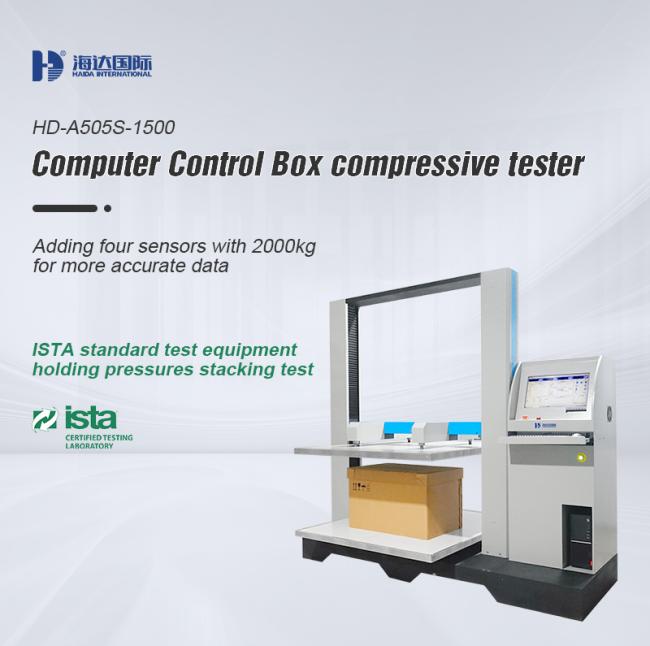

Box Compression tester
Product Description
This Box Compression Tester is specialized for testing the compression performance of cartons.
Design Standard
ISO 12048; ISO 2872; ISO 2874; GB/T 16491; GB/T 4857.4; GB/T-4857.16; ASTM D642; ASTM D4169; TAPPI T804; JIS Z0212
Specification
Model | HD-A505S-1200 | HD-A505S-1500 |
Capacity | 20kN | 50kN |
Test Space (L*W*H) | 1000*1200*1500 mm | 1300*1500*1500 mm |
Resolution | 1/250,000 | 1/250,000 |
Power | AC 220V, 50 Hz, 1.5kW | AC 220V, 50 Hz, 1.5kW |
Item | Description |
Max. Force | 5000kg(50KN) |
Load cell | 4 load cell for highest accuracy |
Control system | Windows 10, RS-232 interface |
Motor | Pana.sonic servo motor w/ DC variable speed drive system, high-precision mechanical ball screw rod |
Force reading | kgf, Ibf, N, KN, T etc |
Load cell Resolution | 1/250,000 |
Load Precision | within ±0.5% |
Effective test area | 1300*1500*1500mm |
Test speed | 0.01~200mm/min |
Software | Mtest HD-002-A(Independent R&D) |
Data display | Load, displacement, speed, loading rate and elapsed time |
Safety features | E-Stop Over-load protection Upper and lower limit switches Load sensor with automatic retreat |
Features
1. Clear software interface with obvious icons, can real-time display of each test data and can monitor the test process at any time.
2. Multi-purpose - customer can choose compression test or stacking test as per their requirements
3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency.
2. Multi-purpose - customer can choose compression test or stacking test as per their requirements
3. Double Ball guide rod design. ultra-high transmission accuracy, smooth operation and high power transmission efficiency.
Low failure, long life and low noise
4. Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault prompts to
ensure the safety of users' operations
4. Equipped with many intelligent configuration, such as limit stroke protection, overload protection, and fault prompts to
ensure the safety of users' operations
5. Chinese-English bilingual test system to meet more needs;
The Compression Testers can operate in five ways
1. Deformation under defined load: Test deformation under defined load of various corrugated cartons and beehive crates
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke
2. Load under defined deformation: Test load under defined deformation of various corrugated cartons and beehive crates
3. Maximum load: test the maximum load of various corrugated cartons and beehive crates
4. Stacking test: stack test of various corrugated cartons and beehive crates
5. Cyclic test: dynamic strain according to strength & stroke

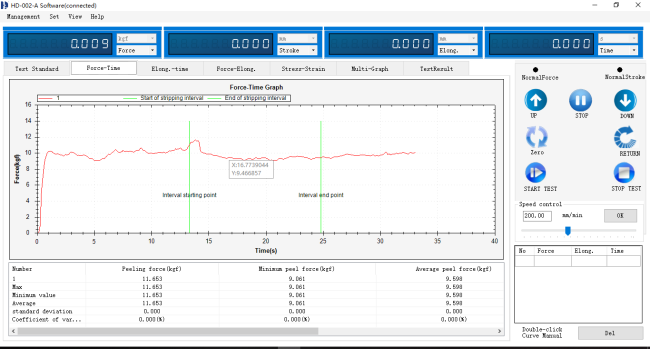

SOFTWARE – HD-002-A(Independent R&D)
Paper&Package Tester
Company Profile
Founded in 2004, Haida® is the recognized Dongguan, China market leader in the testing equipment industry, having four main manufacture series: Accelerated Environmental Series , Universal Tensile Machine , Paper & Packaging , Foam, Furniture & Optical, also involved in Textile & Shoes & Leather, Luggage, Baby carriage & toys, and optical testing equipment.
