2 Or 4 Positions ICI Mace Snag Tester For Textile Tungsten Carbide Steel Needle
2 Or 4 Positions ICI Mace Snag Tester For Textile Tungsten Carbide Steel Needle
TEST STANDARD
ASTM D3939,GB / T 11047
INTRODUCTION

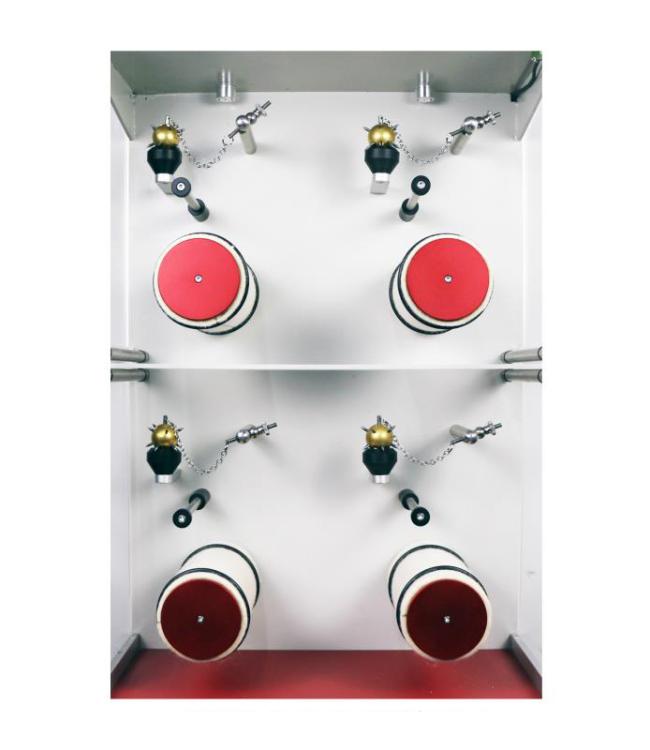

ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.
TECNICAL PARAMETER
| Technical Index | HD-W955 |
| No. of Cylinder | 4 Nos. |
| Mace | Diameter Ø 31.8mm, Weight 160g (Including needles) |
| Speed of Rotation of Cylinder | 60 R.P.M. (± 2 rpm.) (As Per Standards) |
| Mace weight | 160±10g |
| The exposed length of the pin nail | 10mm; the tip radius R0.13mm |
| Felt thickness | 3～3.2mm; width 165mm |
| Working width of guide rod | 125mm |
| The distance between the hammer and the guide rod | 45mm |
| Size of Test Specimen | 200x330mm (As Per Standards) |
| Digital Counter (Preset Type) | 0–99999,LED |
| Needle | tungsten carbide steel |
| Dimensions | 970 x 480 x400 mm |
| Power supply | 220V,50Hz or 110V,60Hz |
| Net Weight | 60 Kg |
OUR SERIVES
1.Design & Production : Solution Consultation for each order
Recommend the most cost -performance machine
Research & Develop the suitable one for Special- designed Model.
2.Shipping & Delivery: One-Stop Service
Production- Deliver to your door - Installation & Training- Technical Support
3.Warranty
1 year warranty with lifetime technology support
4.After-Sale Service
React within 2 Hours
Video inspection & on-site service combined.
