LED Pilling Test Machine, ICI Mace Snag Tester Of Tungsten Carbide Steel Needle
LED Pilling Test Machine, ICI Mace Snag Tester Of Tungsten Carbide Steel Needle
TECHNICAL PARAMETER
| Technical Index | HD-W955 |
| No. of Cylinder | 4 Nos. |
| Mace | Diameter Ø 31.8mm, Weight 160g (Including needles) |
| Speed of Rotation of Cylinder | 60 R.P.M. (± 2 rpm.) (As Per Standards) |
| Mace weight | 160±10g |
| The exposed length of the pin nail | 10mm; the tip radius R0.13mm |
| Felt thickness | 3～3.2mm; width 165mm |
| Working width of guide rod | 125mm |
| The distance between the hammer and the guide rod | 45mm |
| Size of Test Specimen | 200x330mm (As Per Standards) |
| Digital Counter (Preset Type) | 0–99999,LED |
| Needle | tungsten carbide steel |
| Dimensions | 970 x 480 x400 mm |
| Power supply | 220V,50Hz or 110V,60Hz |
| Net Weight | 60 Kg |
TEST STANDARD
ASTM D3939,GB / T 11047
INTRODUCTION

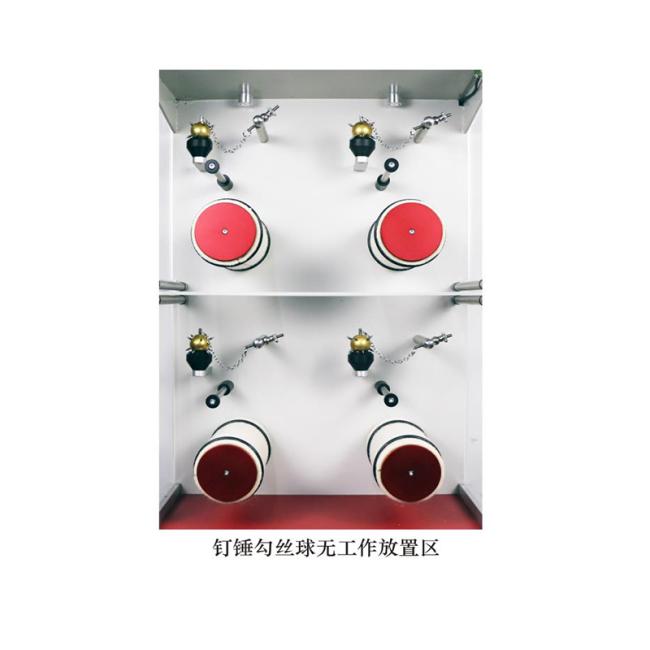

ICI Mace Snag Tester applies to rapidly determine the snagging resistance of heavyweight fabrics such as apparel, upholstery, and automotive interiors fabrics etc.
The number of rotation cycles can be preset. Automatically stops when the preset rotation period is reached. In order to ensure the accuracy of detection and prolong the service life, the nail hammer is made of platinum steel. Adjustable chain length.
