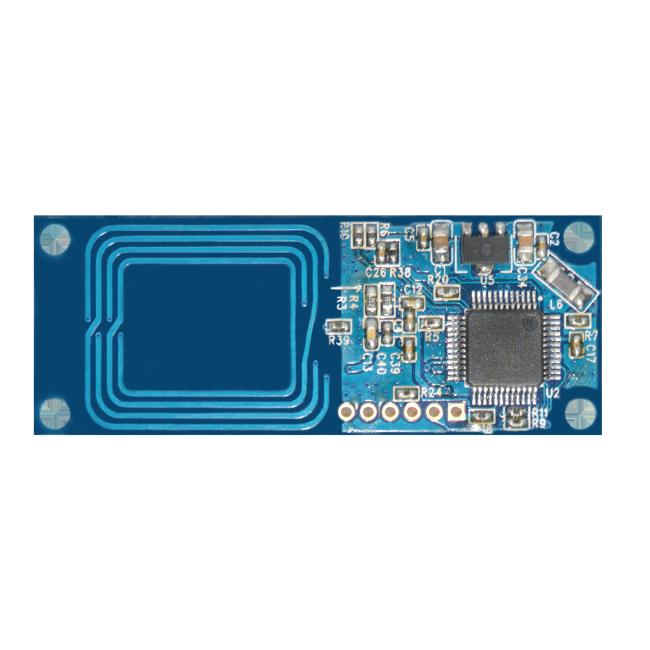

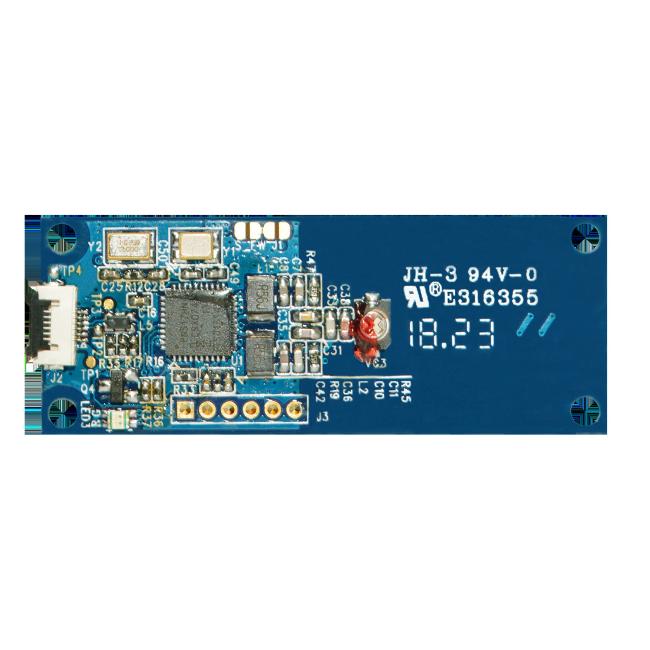

ACM1252U-Z6 NFC reader module

The ACM1252U-Z6 is an NFC reader module with FFC connector developed based on the 13.56 MHz contactless technology, for fast and easy integration to embedded systems.

The features of ACM1252U-Z6 NFC reader module:

USB Full Speed Interface via 6-pin FFC Connector
CCID Compliance
USB Firmware Upgradeability
Smart Card Reader:
Contactless Interface:
Read/write speed up to 424 kbps
Built-in Antenna for contactless tag access, with card reading distance of up to 30 mm (depending on tag type)
Supports ISO 14443 Type A and B cards, , FeliCa, and all 4 types of NFC (ISO/IEC 18092) tags
Built-in anti-collision feature (only 1 tag is accessed at any time)
NFC Support:
Card Reader/Writer Mode
Peer-to-Peer Mode
Card Emulation Mode
Built-in Peripherals:
User-controllable bi-color LED
Application Programming Interface:
Supports PC/SC
Supports CT-API (through wrapper on top of PC/SC)
Supports Android™ 3.1 and later
