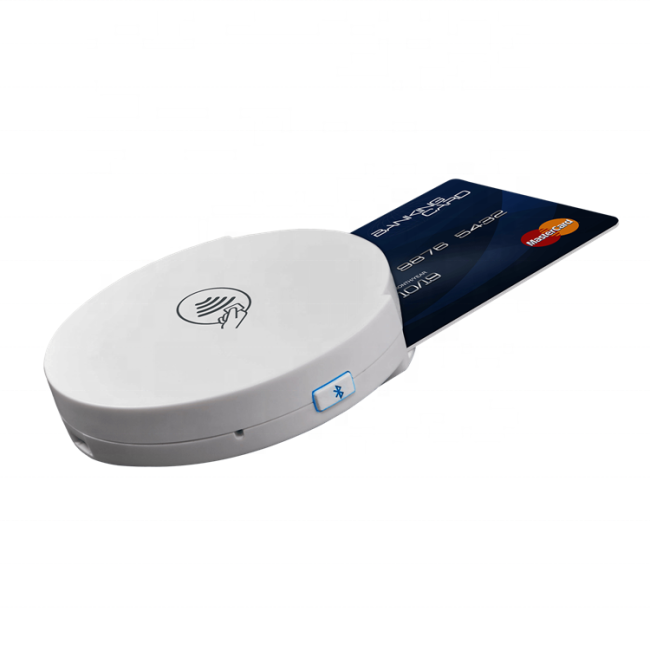

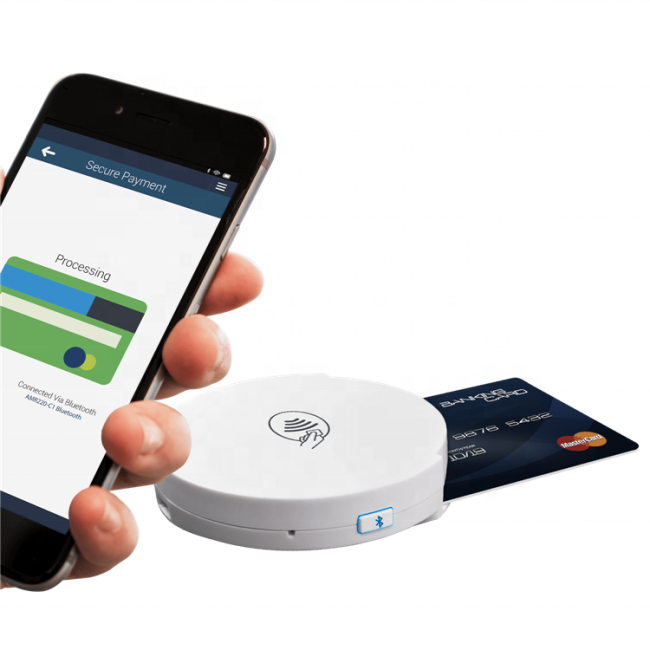

AMR220-C1 ACS RFID NFC Reader , Mpos Card Reader For Mobile Banking

Price Negotiable
Price: $110.00/Sets 1-9 Sets
MOQ: Negotiable
Delivery Time: Negotiable
Brand: ACR
Product Description
                     AMR220-C1 ACS Secure BLE nfc mPOS Reader support for EMV contact/contactless card



AMR220-C1 ACS Secure BLE® mPOS Reader supports ISO 7816 Class A, B, and C full-sized smart cards (5 V, 3 V, and 1.8 V), including microprocessor cards with T=0 and T=1 protocol, ISO 14443 Type A and B smart cards, ®, FeliCa, and most NFC tags and devices compliant with the ISO 18092 standard. It is primarily designed to meet major payment and security standards, such as Mastercard® Contactless, Visa® Contactless, EMV™ Level 1 & Level 2. It is Apple Pay® and Android Pay™-ready.









Physical Characteristics
Dimensions (mm) 70.0 mm (L) x 70.0 mm (W) x 15.0 mm (H)
Weight (g) 50.8 g (70.8 g with cable ± 5 g tolerance)
BLE Interface
Protocol BLE®(BLE4.1)
Power Source Rechargeable Lithium-ion Battery (charging through USB)
Speed 1 Mbps
USB Interface
Protocol USB CCID
Connector Type Micro-USB
Power Source From USB port
Speed USB Full Speed (12 Mbps)
Cable Length 1 m, Detachable
Contact Smart Card Interface
Number of Slots 1 Full-sized Card Slot
Standard ISO 7816 Parts 1-3, Class A, B, C (5 V, 3 V, 1.8 V)
Protocol T=0; T=1
Contactless Smart Card Interface
Standard ISO/IEC 18092 NFC, ISO 14443 Type A & B, , FeliCa
Protocol ISO 14443-4 Compliant Card, T=CL
Classic Card, T=CL
ISO 18092, NFC Tags
FeliCa
Built-in Peripherals
LED 4 single-colors: Green
Buzzer Audio Tone Indication
Other Features
Encryption In-device AES encryption algorithm
Firmware Upgrade Supported
Certifications/Compliance
Certifications/Compliance EN 60950/IEC 60950
ISO 7816
ISO 18092
ISO 14443
USB Full Speed
BLE®
EMV™ Levels 1 & 2
Mastercard® Contactless
Visa payWave®
PC/SC
CCID
MIC (Japan)
CE
FCC
RoHS 2
REACH
Microsoft® WHQL
Device Driver Operating System Support
Device Driver Operating System Support Windows®
Linux®
MAC OS® 10.7 and later
Android™ 4.4 and later
iOS 8.0 and later
