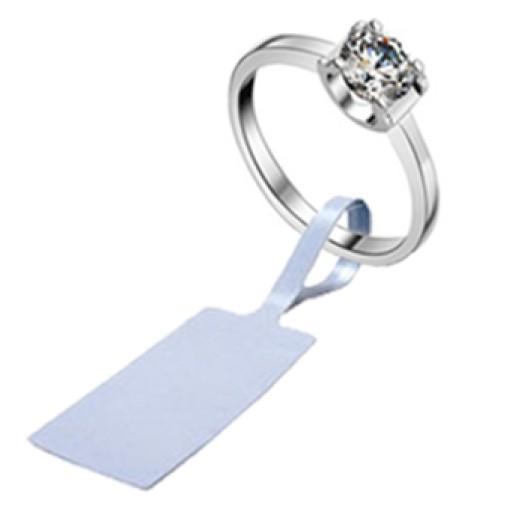

UHF Jewelry Security Tag
UHF Jewelry Security Tag RFID Price Tag for Inventory Management
|
Model Number |
Waterproof disposable uhf jewelry rfid label tag |
|
Protocol |
ISO/IEC 18000-6C, EPC Global Class 1 Gen 2 |
|
RFID Chip |
UCODE 7 |
|
Operating Frequency |
UHF860~960MHz |
|
Memory |
48 bit Serialized TID, 128 bit EPC, No User Memory |
|
IC Life |
100,000 Programming cycles, 10 years data retention |
|
Label Width |
100.00 mm(Tolerance± 0.20 mm) |
|
Label Length |
14.00 mm(Tolerance± 0.50 mm) |
|
Tail Length |
48.00 mm(Tolerance± 0.50 mm) |
|
Surface Material |
Radiant White PET |
|
Operating Temperature |
-0~60°C |
|
Operating Humidity |
20%~80% RH |
|
Storage Temperature |
20~30°C |
|
Storage Humidity |
20%~60% RH |
|
Shelf Life |
1 year in anti-static bag at 20~30 °C / 20% ~60% RH |
|
ESD Voltage Immunity |
2 kV (HBM) |
|
Appearance |
Single row reel form |
|
Quantity |
4000 ± 10 pcs/Roll;4 Rolls/Carton(Based on the actual shipment quantity) |
|
Weight |
To be determined |
|
Note |
This one is very very hot for jewelry inventory management and it's really sellab |
| Other Features: | |||
| Data Storage | > 10 years | ||
| Re-write | 100,000 times | ||
| Installation | Adhesive | ||
| Customization | Printing,Encoding,Barcode,Designing,etc | ||
|
Application |
|
||
Established in 2001 year, Shenzhen Chuangxinji smart card co.,Ltd was specialized in producing
and marketing of pvc cards,smart cards and RFID wristbands&Tags.
In possession of three modern and high standard production line:
PVC card production line with monthly output of 20,000,000 pieces cards: Brand-new CTP machines and brand Heidelberg offset printing machines, 8 compounding machines.
Antenna production line with monthly output of 20,000,000 pieces cards: roll to roll printing machines, compounding machines, machines for erosion and engraving.
RFID end product production line with monthly output of 500,000,000 smart cards and 300,000,000 RFID tags: reversed assembling machines compound die cutting machines, laminating machines.
Marketing Team
We own 26 marketing staffs who speak English, Germany, France, Spanish, Arabic and so on, our business range from Europe, America, Oceania, Africa, Asia and middle east countries and regions.
