960mhz Metal UHF RFID Tag Sticker For Warehouse Pallet Asset Management
960mhz Metal UHF RFID Tag Sticker For Warehouse Pallet Asset Management
UHF Anti metal rfid tag for warehouse Pallet Asset Management
- UHF EPC G2,ISO18000-6C
- Long Reading Range
- Anti-metal

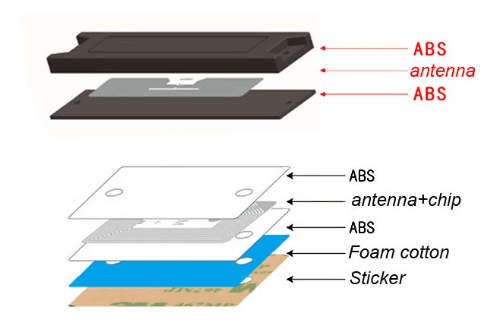

- Robust ABS Housing / 3M adhesives
- Intelligent equipment patrol management system / large-scale industrial projects .
We have the different size and material UHF metal tag , a
nd the long range Metal tag use FPC material which can read over 10Meters ,
for the common ABS UHF Metal tag read distance is about 2~5Meters .
|
Model |
anti-metal UHF rfid tag |
Type |
UHF Passive RFID Tag |
|
Frequency |
860-960MHz |
Protocol |
EPC Class1 Gen2,ISO 18000-6C |
|
Physical Parameters |
|||
|
Size |
135*22*12mm |
Antenna |
ALN9640 |
|
Inaly Material |
Corrosion Aluminum antenna |
Shell material |
ABS |
|
Performance Parameters |
|||
|
Memory |
EPC |
96bits |
R/W |
|
TID |
32bits |
R/W |
|
|
Password |
32bits Access Password 32bits Kill Password |
R/W |
|
|
User memory |
512bits |
R/W |
|
|
Function |
R/W |
Reading range |
1-4m |
|
Enviromental Parameters |
|||
|
Working Temperature |
-30 to 60 Celsius degree |
Storage Temperature |
-40 to 100 Celsius degree |
|
Application |
|||
|
Application Fields |
Outdoor power equipment inspection, iron tower wire rod inspection, elevator inspection, pressure vessel, factory equipment |
||
|
Package |
750pcs/carton |
||
When you’re mounting RFID tags on metal surfaces or metal products, you should be aware that if you use non metal mount RFID tags, your system will not function as desired as the metal will detune any passive RFID tag that is not designed to be placed on metal. Using tags that are specifically calibrated to the materials you need to track makes reading, tracking, and inventorying them easier and provides for greater read range.
Metal mount RFID tags are typically rugged, difficult to damage, and easy to weld, screw or otherwise attach.
