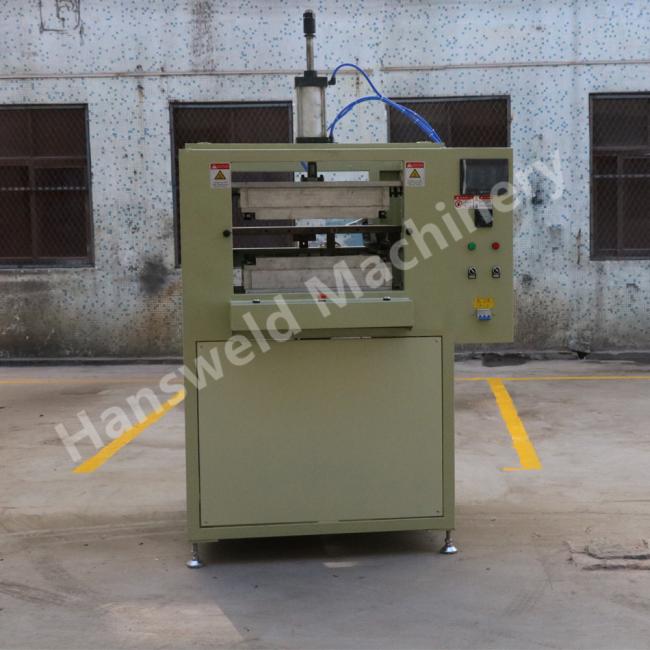

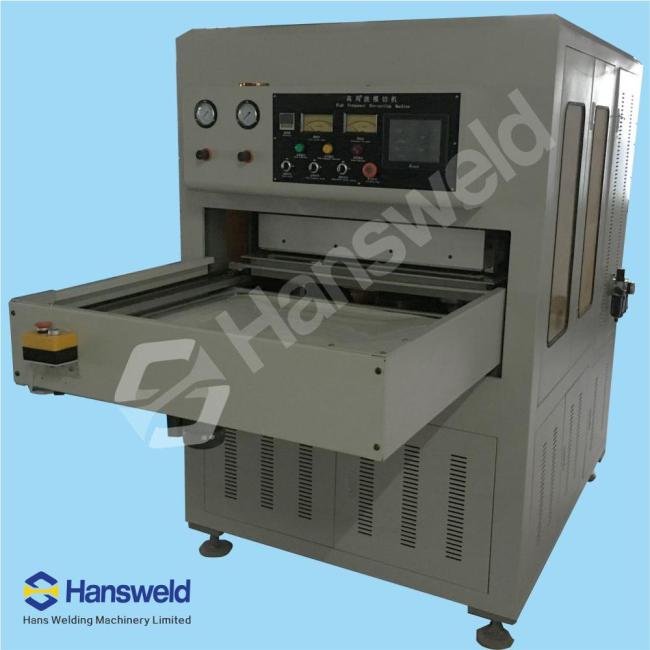

15kw 10ton Hot And Cold Press Machine Embossing Shoe Making Machine

Price Negotiable

Price: $4,000.00 - $10,000.00/Pieces

MOQ: 1 SET

Delivery Time: 3-7 work days

Brand: HANSWELD

Product Description

Features and functions:

1. PLC+ Man-machine Interface

After a simple setting, it can process kinds of products easily and safe.

2. Orientating Precisely

The machine with high-precise positioning system can easily orientating precisely. The process has been great improved.

3. Anti-spark electric system

When the spark occurring, the high sensitiveness spark electric system will cut the high frequency power immediately to protect the mould and material.

4. No High Radiation

This machine has a good shielding device, all the parameters has passed the inspection of the State Department.

5. Save labor cost

This machine is very convenient to use,can save much labor cost and space,a very good choice for factory and workshop.

Product Parameter

Model	HSD-3050	Machine Working Principle:
Output Power	15000W	HF Welding relies on certain properties of the material being welded to cause the generation of heat in a rapidly alternating electric field, so called dielectric heating of the material to be welded. This means that only certain materials can be welded using this technique. The dynamic electric field causes the molecules in polar thermoplastics to oscillate. Depending on their geometry and dipole moment, these molecules may translate some of this oscillatory motion into thermal energy and cause heating of the material. A measure of this interaction is the loss factor, which is temperature and frequency dependent.
Voltage	380V 3P 50/60Hz
Input Power	20KVA
Frequency	27.12Mhz
Oscillation Tube	TOSHIBA 8T85RB
Anti-Spark System	NL-5557
Max Pressure	30Ton
Gap of Eletrode	150MM
Size of Mould Holder	400*500MM
Working Table Size	400*500MM
Machine Dimension	145022301660MM
Machine Net Weight	1300KG
